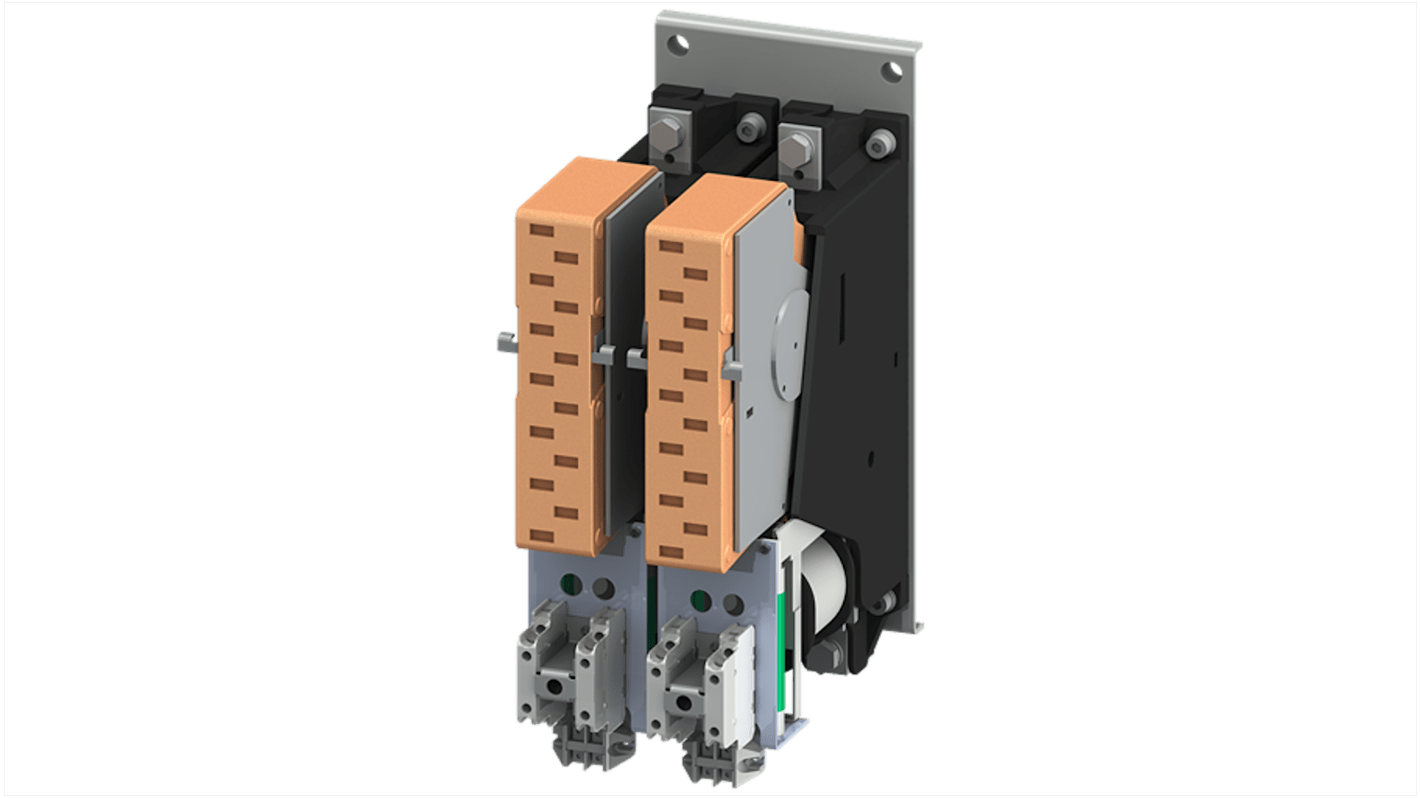

Siemens 3TC Contactor, 220V dc Coil, 2-Pole, 400 A, 250 kW 220V dc, 4 NO/4 NC
- RS Stock No.:
- 154-442
- Mfr. Part No.:
- 3TC7814-0EM
- Manufacturer:
- Siemens
Subtotal (1 unit)*
MYR34,850.35
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 + | MYR34,850.35 |
*price indicative
- RS Stock No.:
- 154-442
- Mfr. Part No.:
- 3TC7814-0EM
- Manufacturer:
- Siemens
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 220V dc | |
| Product Type | Contactor | |
| Number of Poles | 2 | |
| Contact Current | 400A | |
| Series | 3TC | |
| Power Rating | 250kW | |
| Function | Mirror Contact | |
| Mount Type | Screw | |
| Normal State Configuration | 4 NO/4 NC | |
| Auxiliary Contact Configuration | 4 NO/4 NC | |
| Number of Auxiliary Contacts | 8 | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 500A | |
| Control Circuit Voltage Uc | 220V dc | |
| Contactor Application | DC Operation | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | CCC, CE, EAC, IEC 60947-4-1, IP00, UKCA | |
| Length | 375mm | |
| Width | 160mm | |
| Depth | 290mm | |
| Pole and Throw Configuration | 2P | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 220V dc | ||
Product Type Contactor | ||
Number of Poles 2 | ||
Contact Current 400A | ||
Series 3TC | ||
Power Rating 250kW | ||
Function Mirror Contact | ||
Mount Type Screw | ||
Normal State Configuration 4 NO/4 NC | ||
Auxiliary Contact Configuration 4 NO/4 NC | ||
Number of Auxiliary Contacts 8 | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 500A | ||
Control Circuit Voltage Uc 220V dc | ||
Contactor Application DC Operation | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals CCC, CE, EAC, IEC 60947-4-1, IP00, UKCA | ||
Length 375mm | ||
Width 160mm | ||
Depth 290mm | ||
Pole and Throw Configuration 2P | ||
- COO (Country of Origin):
- DE
The Siemens cutting-edge contactor is designed for robust performance in demanding environments. Built to handle heavy-duty applications, this device excels in DC operation, providing exceptional reliability up to a maximum operational current of 500 A. With its advanced construction, it offers impressive mechanical service longevity of 30 million operating cycles, ensuring sustained performance over time. Additionally, the unit features a variety of auxiliary contacts, facilitating complex control strategies. Engineered for versatility, this contactor is adaptable to various installation scenarios, making it ideal for both industrial and commercial applications, ensuring enhanced operational efficiency.
High mechanical lifespan for cost-effectiveness
Various auxiliary configurations for comprehensive control
Efficient heat dissipation during high loads
Easy installation with screw-type terminals
Robust environmental protection for diverse conditions
Designed for reliable performance
