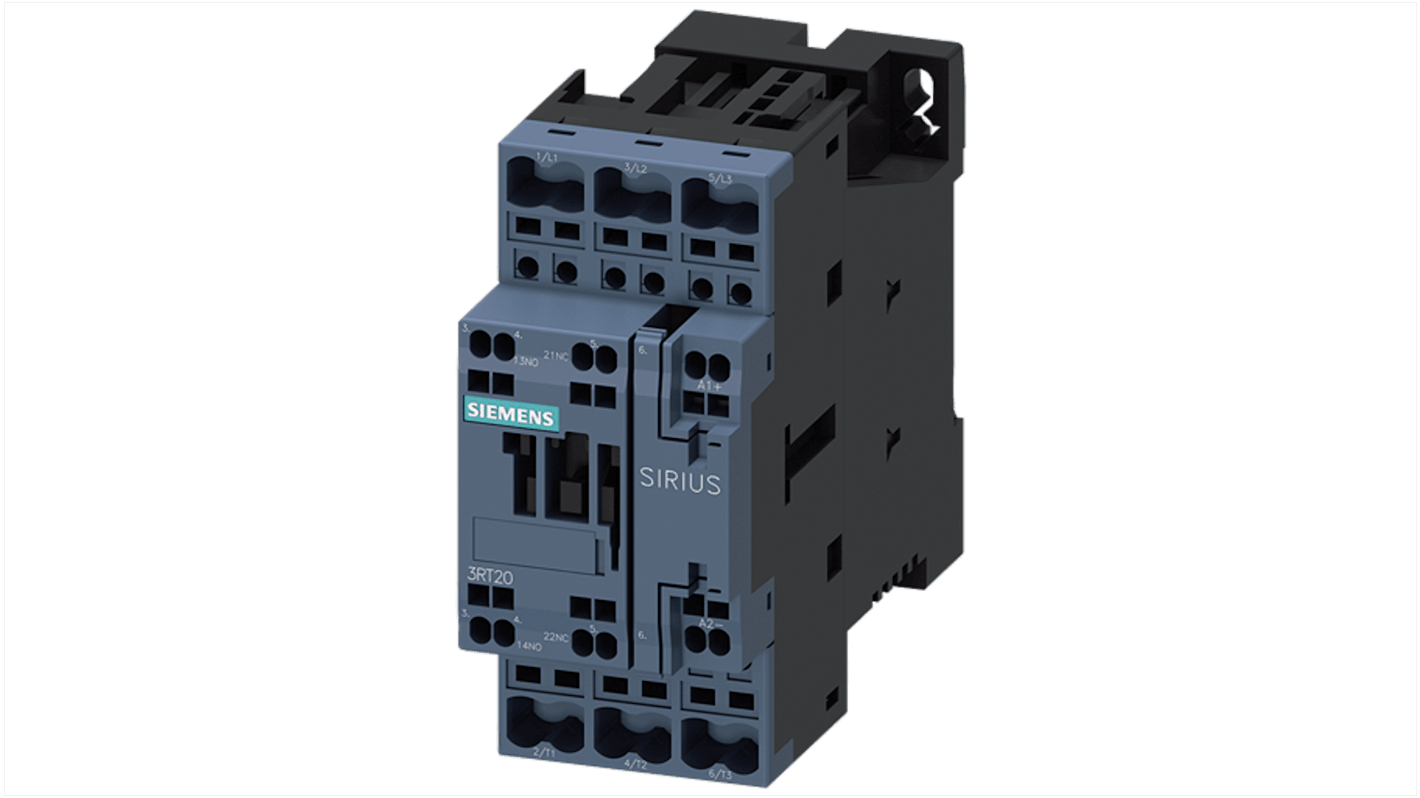

Siemens 3RT2 Contactor, 72V dc Coil, 3-Pole, 40 A, 7.5 kW 72V dc, 1 NO/1 NC, 690V
- RS Stock No.:
- 154-369
- Mfr. Part No.:
- 3RT2024-2XJ40-0LA2
- Manufacturer:
- Siemens
Subtotal (1 unit)*
MYR888.88
FREE delivery for orders over RM 500.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR888.88 |
*price indicative
- RS Stock No.:
- 154-369
- Mfr. Part No.:
- 3RT2024-2XJ40-0LA2
- Manufacturer:
- Siemens
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Coil Voltage | 72V dc | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 690V | |
| Contact Current | 40A | |
| Power Rating | 7.5kW | |
| Series | 3RT2 | |
| Mount Type | DIN Rail | |
| Function | Mirror Contact, Motor Control | |
| Normal State Configuration | 1 NO/1 NC | |
| Auxiliary Contact Configuration | 1 NO/1 NC | |
| Number of Auxiliary Contacts | 2 | |
| Terminal Type | Spring Loaded | |
| Contactor Application | Traction Contactor | |
| Operational Current Ie | 40A | |
| Minimum Operating Temperature | -40°C | |
| Control Circuit Voltage Uc | 72V dc | |
| Maximum Operating Temperature | 70°C | |
| Width | 45mm | |
| Depth | 107mm | |
| Length | 102mm | |
| Standards/Approvals | IEC 60947-1, DNV, IEC 60077, EAC, UL/CSA approvals, UL, UKCA, RMRS, A600/Q600, RCM, PRS, IEC 60947-4-1, ABS, CCC, CE, CSA | |
| Pole and Throw Configuration | 3P | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Coil Voltage 72V dc | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 690V | ||
Contact Current 40A | ||
Power Rating 7.5kW | ||
Series 3RT2 | ||
Mount Type DIN Rail | ||
Function Mirror Contact, Motor Control | ||
Normal State Configuration 1 NO/1 NC | ||
Auxiliary Contact Configuration 1 NO/1 NC | ||
Number of Auxiliary Contacts 2 | ||
Terminal Type Spring Loaded | ||
Contactor Application Traction Contactor | ||
Operational Current Ie 40A | ||
Minimum Operating Temperature -40°C | ||
Control Circuit Voltage Uc 72V dc | ||
Maximum Operating Temperature 70°C | ||
Width 45mm | ||
Depth 107mm | ||
Length 102mm | ||
Standards/Approvals IEC 60947-1, DNV, IEC 60077, EAC, UL/CSA approvals, UL, UKCA, RMRS, A600/Q600, RCM, PRS, IEC 60947-4-1, ABS, CCC, CE, CSA | ||
Pole and Throw Configuration 3P | ||
- COO (Country of Origin):
- DE
The Siemens Traction contactor is built for high performance in AC-3e/AC-3 applications, offering reliable motor control with advanced electronic drive technology. It features spring loaded terminals for secure connections and is designed to endure over 10 million mechanical cycles, ensuring long lasting durability. Suitable for diverse industrial environments, this contactor operates efficiently across a wide temperature range.
High surge voltage resistance
Spring loaded terminals for easy installation
Compact design for space efficiency
Wide temperature range for diverse conditions
Robust construction for high demand use
Integrated varistor for voltage spike protection
Auxiliary contacts for expanded control functionality
