Microchip CAN Bus Monitor MCP2515 Development Kit MCP2515DM-BM

View this category

Subtotal (1 unit)*

MYR930.43

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR930.43

*price indicative

RS Stock No.:
698-8899
Distrelec Article No.:
173-88-900
Mfr. Part No.:
MCP2515DM-BM
Manufacturer:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Kit Classification

Development Kit

Product Type

Communication & Wireless Development Tool

Featured Device

MCP2515

Kit Name

CAN Bus Monitor

Interface Type

USB

Standards/Approvals

RoHS

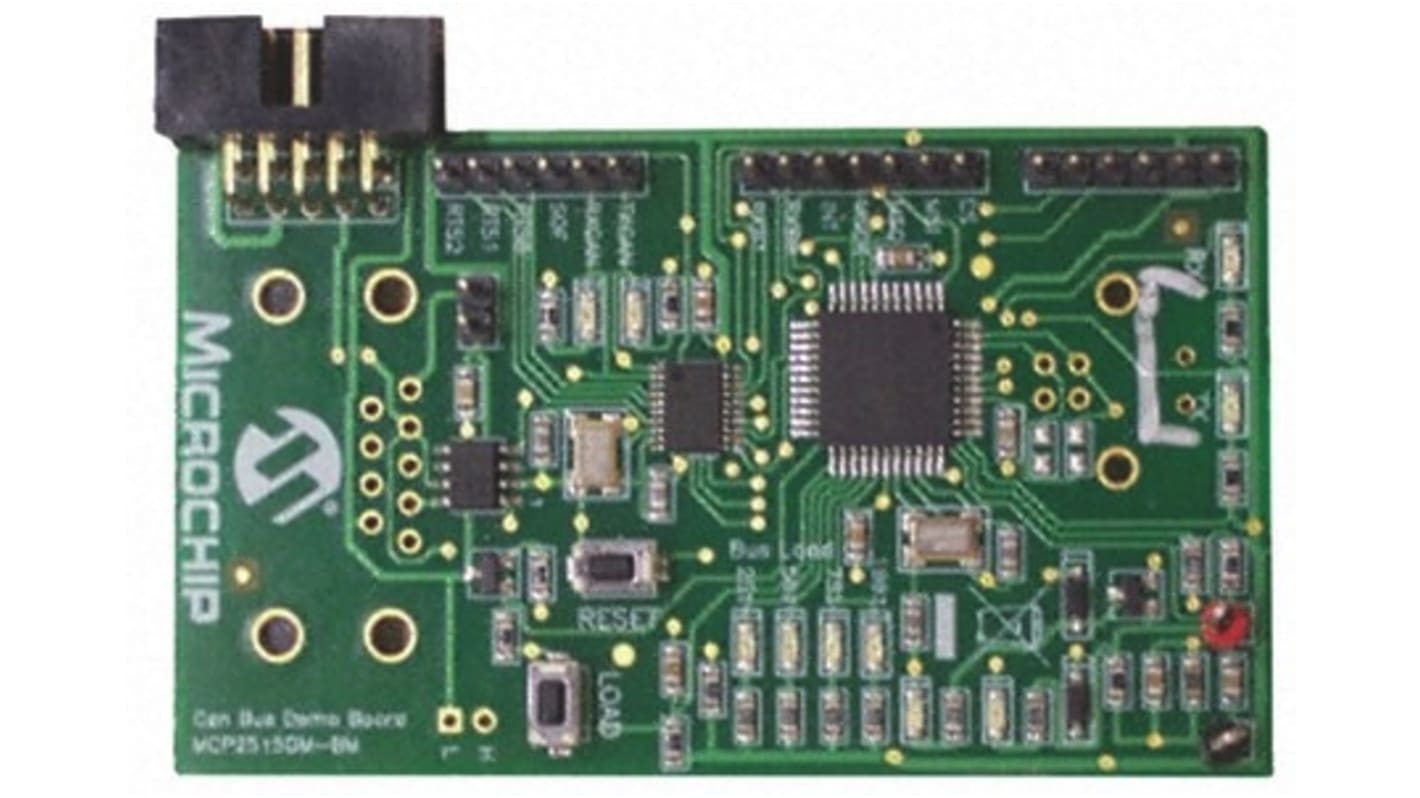

CAN Bus Monitor Demonstration Board


Microchips MCP2515DM-BM demo board is a duo board kit that can create a CAN (Controller Area Network) bus. The two boards are identical and are connected with a CAN cable, while the other board is connected to the host PC. The software for this board can be used to send and receive CAN messages and configure the registers. The MCP2515 boars are both reversible meaning either one can take the others role, depending on how you have them connected.

Depending on the configuration of your cables, the board connected to your PC will become the monitor, and the other board will become the Traffic Generator.

Features and Benefits:


  • PIC18F4550 PIC MCU with ICD2 interface for in-circuit programming

  • Testing points for monitoring MCP2515 pins (CAN, SPI and status)

  • Can be connected to an existing CAN bus

  • Identical boards allow for neither to be a master board

  • Button for changing the bus load on the Traffic Generator node

    • MCP2515 Firmware:


    http://ww1.microchip.com/downloads/en/DeviceDoc/MCP2515DM-BM_Firmware.zip

    MCP2515 PC Software:


    http://ww1.microchip.com/downloads/en/DeviceDoc/BusMonitor_v2.0.0.22.zip

    Whats in the box:


  • 2x CAN Bus monitoring boards

  • 1x Connector cable

  • 1x USB A to USB B

  • 1x Information sheet

    • CAN Bus Communication - Microchip


    Supplied with

    CAN cable, CAN bus PC software.
