Microchip EVB-USB7252 Evaluation Kit EV33X03A Evaluation Kit for EVB-USB7252 EV33X03A

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
209-7643
Mfr. Part No.:
EV33X03A
Manufacturer:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Communication & Wireless Development Tool

Kit Classification

Evaluation Kit

For Use With

EVB-USB7252

Featured Device

EV33X03A

Kit Name

EVB-USB7252 Evaluation Kit

Interface Type

USB

Standards/Approvals

RoHS

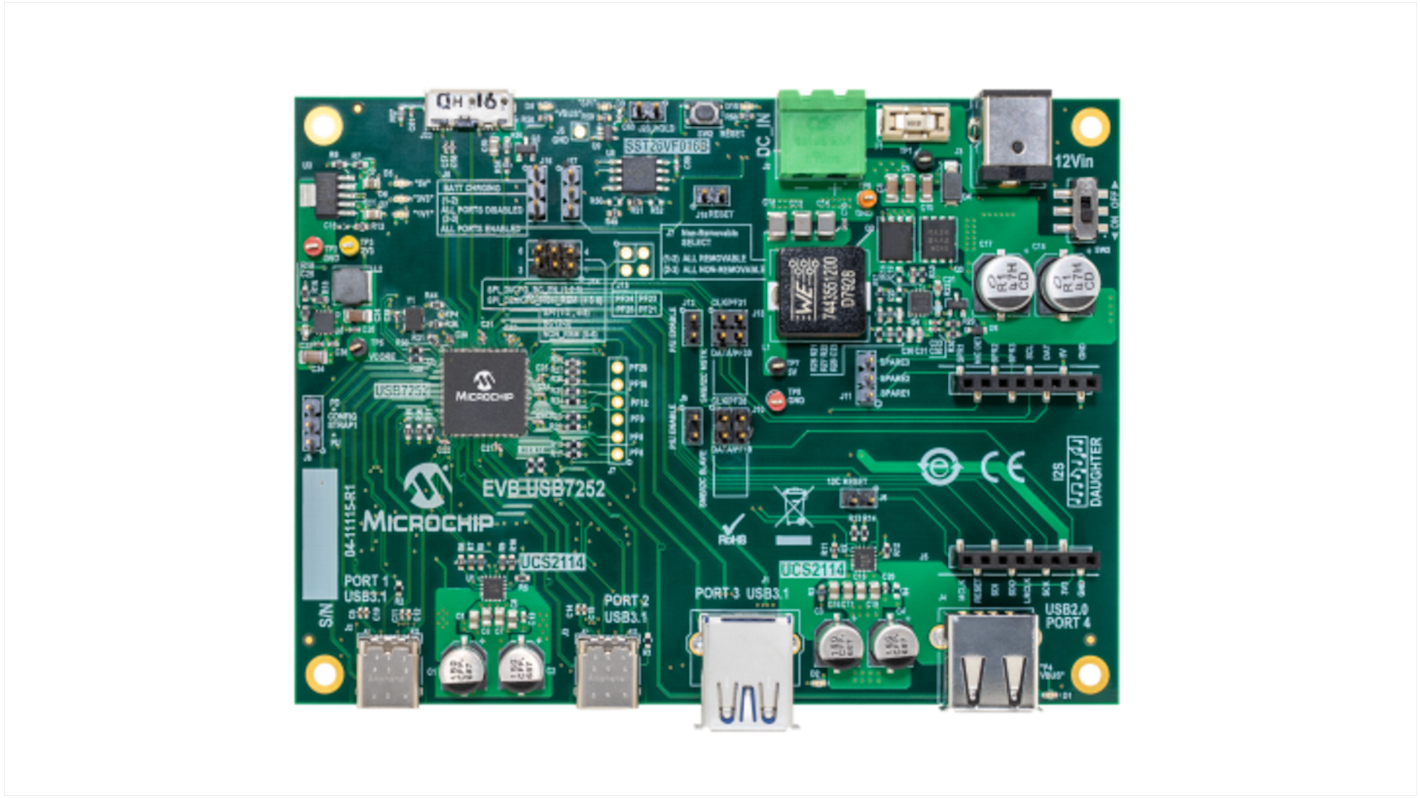

The Microchip EV33X03A consist USB7252 4-port Gen2 Smart Hub Evaluation Board and EVB-USB7252 is a demonstration and evaluation platform that provides the necessary requirements and interface options for evaluating the USB7252, a 4-port SuperSpeed+ (SS+) USB Smart Hub™ IC on a 4-layer RoHS-compliant Printed Circuit Board (PCB). This allows the user to gain an understanding of the product and accelerate the integration of the USB7252 into the user’s design. The EVB-USB7252 is compliant with the USB 2.0 High-Speed (HS), Full-Speed (FS), and Low-Speed (LS) USB signalling. The EVB-USB7252 is also compliant with USB 3.2 Gen2 on the upstream port and on 3 of the downstream ports including two USB Type-C™ interfaces. The fourth downstream port only support USB2.0.The EVB-USB7252 platform also supports battery charging on all six downstream ports (maximum of 10A) at any one time.

Port Power, SPI FLASH active, Reset and regulator output LED indicators

Bridge peripheral functions: USB-to-UART (CDC), USB-to-I2S™ Audio Codec, USB-to-I2C

On-board SPI Flash for external downloadable firmware
