Silicon Labs Mighty Gecko EFR32MG12 RF Transceiver Module SLWRB4163A
- RS Stock No.:
- 134-7241
- Mfr. Part No.:
- SLWRB4163A
- Manufacturer:
- Silicon Labs
Subtotal (1 unit)*
MYR269.89
FREE delivery for orders over RM 500.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR269.89 |
*price indicative
- RS Stock No.:
- 134-7241
- Mfr. Part No.:
- SLWRB4163A
- Manufacturer:
- Silicon Labs
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Silicon Labs | |
| RF Technology | RF Transceiver | |
| Kit Classification | Module | |
| Featured Device | EFR32MG12 | |
| Kit Name | Mighty Gecko | |
| Frequency | 2.4 GHz, 868 MHz | |
| Select all | ||
|---|---|---|
Brand Silicon Labs | ||
RF Technology RF Transceiver | ||
Kit Classification Module | ||
Featured Device EFR32MG12 | ||
Kit Name Mighty Gecko | ||
Frequency 2.4 GHz, 868 MHz | ||

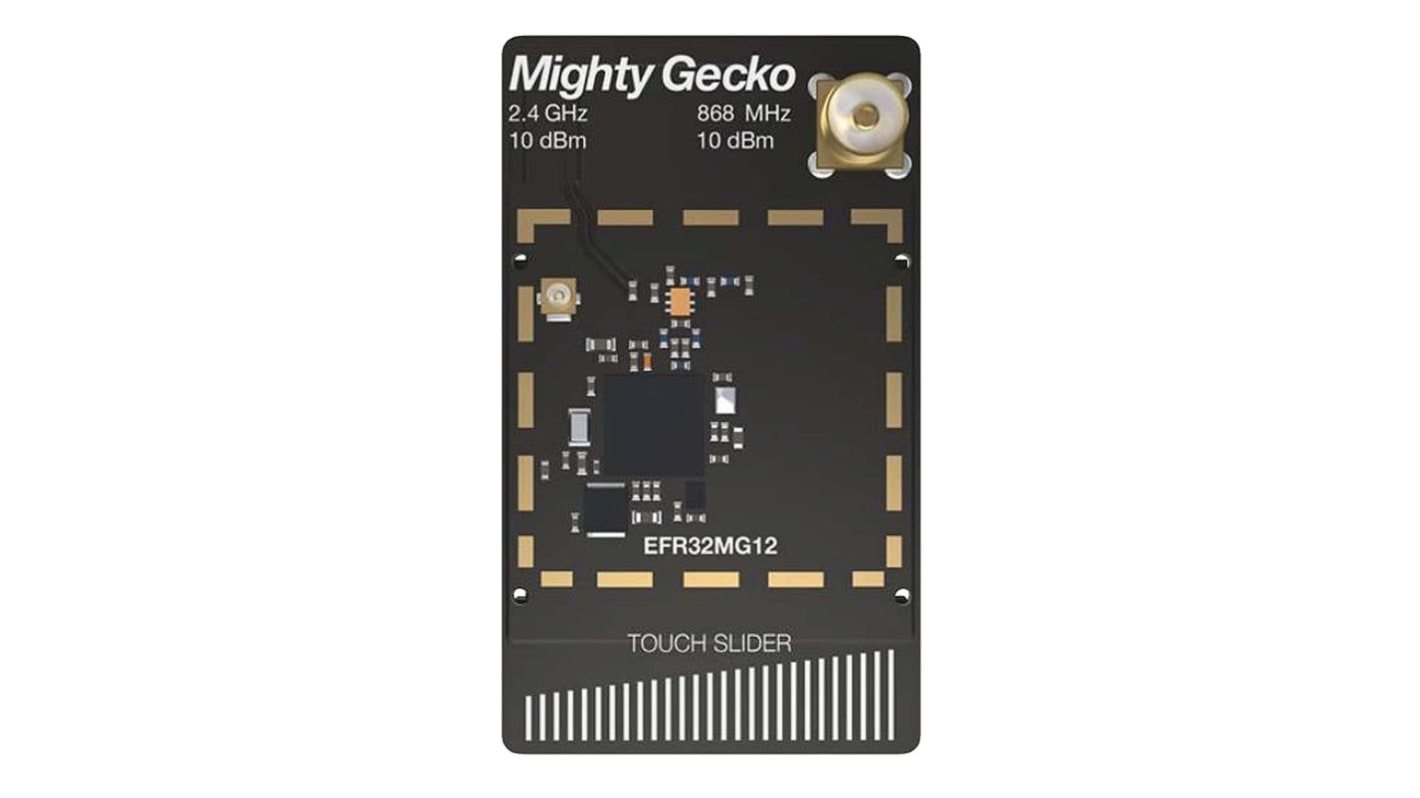

EFR32MG12 Mighty Gecko 2.4GHz/868MHz Dual-Band Radio Board
The BRD4163A Mighty Gecko Dual-Band Radio Board supports the development of Zigbee, Thread, Bluetooth Low-Energy and proprietary wireless applications. It is supported by the Simplicity Studio suite of development tools.
• EFR32MG12 Cortex-M4F core SoC with 1MB Flash memory, 256KB RAM (EFR32MG12P433F1024GL125)
• RF Operating Frequency: 2.4 to 2.4835GHz and 863 to 870MHz ISM Bands
• RF Output Power: +10dBm
• PCB antenna (2.4GHz) with optional U.FL connector
• SMA connector for external antenna (868MHz)
• Touch Slider
• Crystals for LFXO and HFXO: 32.768 kHz and 38.4 MHz
• Connectors for Wireless Starter Kit Mainboard
• Powered from Starter Kit Mainboard
• Dimensions: 51 x 30mm
Note
Works in conjunction with an SLWSTK6000A Mighty Gecko Wireless Starter Kit, RS Product Code 915-6604
Approvals
FCC (2.4GHz band), ETSI (Both bands)
