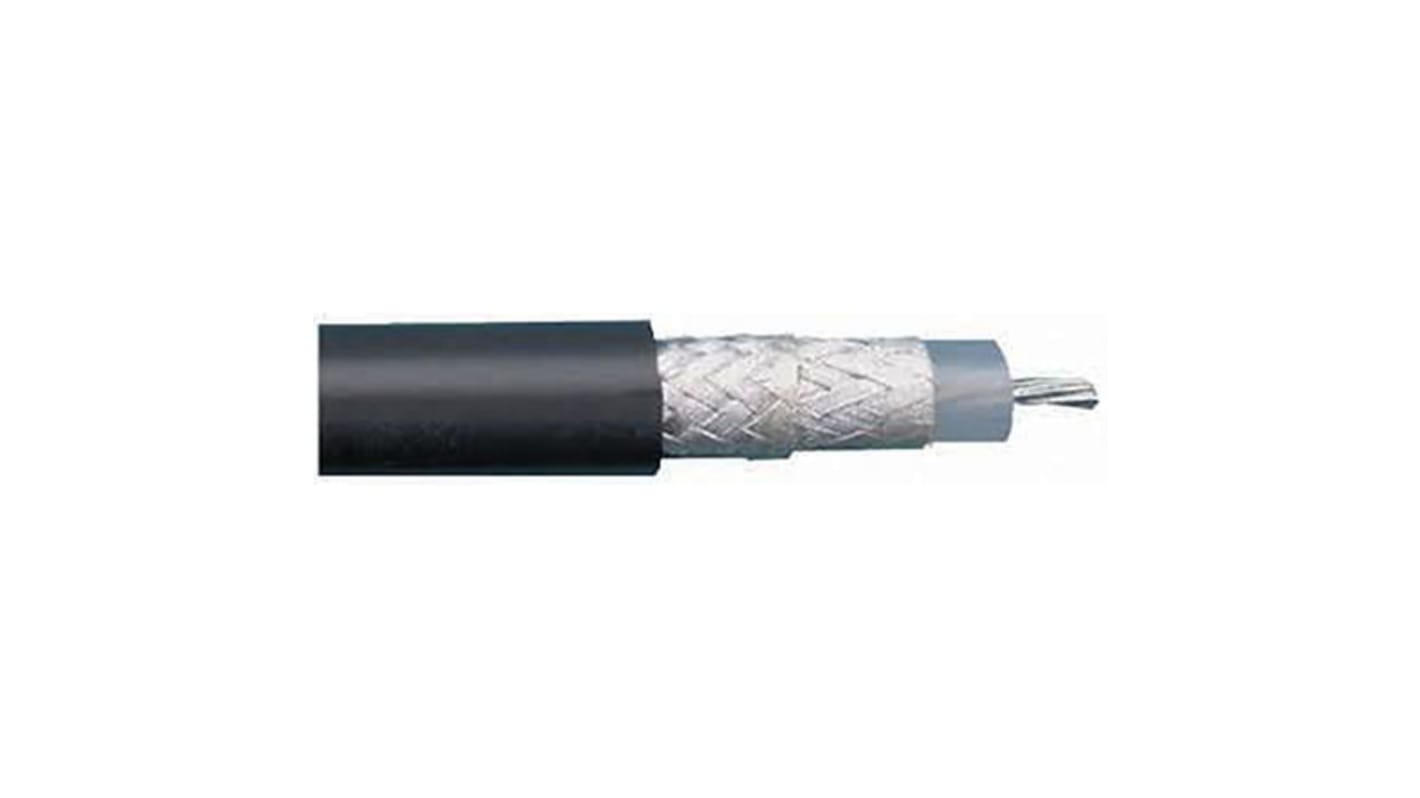

Belden MRG214 Series, 100m, RG214/U Coaxial, Unterminated50 Ω
- RS Stock No.:
- 521-8408
- Mfr. Part No.:
- MRG214.00100
- Manufacturer:
- Belden
Subtotal (1 reel of 100 metres)**
MYR8,312.95
16 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Reel(s) | Per Reel | Per Metre** |
|---|---|---|
| 1 + | MYR8,312.95 | MYR83.13 |
**price indicative
- RS Stock No.:
- 521-8408
- Mfr. Part No.:
- MRG214.00100
- Manufacturer:
- Belden
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Terminated/Unterminated | Unterminated | |
| Coaxial Type | RG214/U | |
| Outer Diameter | 10.8mm | |
| CPR Certification | Eca | |
| Characteristic Impedance | 50 Ω | |
| Attenuation | 4.3 dB/100m @ 50 MHz | |
| Length | 100m | |
| Sheath Colour | Black | |
| Conductor Strand Type | Stranded | |
| Standards Met | IEC 60332-1-2 | |
| Shielding | Silver Plated Copper Braid | |
| Insulation Material | PE | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Number of Strands | 7 | |
| Operating Temperature Range | -40 → +70 °C | |
| Conductor Material | Silver Plated Copper | |
| Size of Strands | 13 AWG | |
| Core Strands | 7/0.75 | |
| Maximum Operating Temperature | +70°C | |
| Series | MRG214 | |
| Minimum Operating Temperature | -40°C | |
| Velocity ratio | 66% | |
| Capacitance | 100pF/m | |
Select all | ||
|---|---|---|
Brand Belden | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG214/U | ||
Outer Diameter 10.8mm | ||
CPR Certification Eca | ||
Characteristic Impedance 50 Ω | ||
Attenuation 4.3 dB/100m @ 50 MHz | ||
Length 100m | ||
Sheath Colour Black | ||
Conductor Strand Type Stranded | ||
Standards Met IEC 60332-1-2 | ||
Shielding Silver Plated Copper Braid | ||
Insulation Material PE | ||
Sheath Material Polyvinyl Chloride PVC | ||
Number of Strands 7 | ||
Operating Temperature Range -40 → +70 °C | ||
Conductor Material Silver Plated Copper | ||
Size of Strands 13 AWG | ||
Core Strands 7/0.75 | ||
Maximum Operating Temperature +70°C | ||
Series MRG214 | ||
Minimum Operating Temperature -40°C | ||
Velocity ratio 66% | ||
Capacitance 100pF/m | ||
