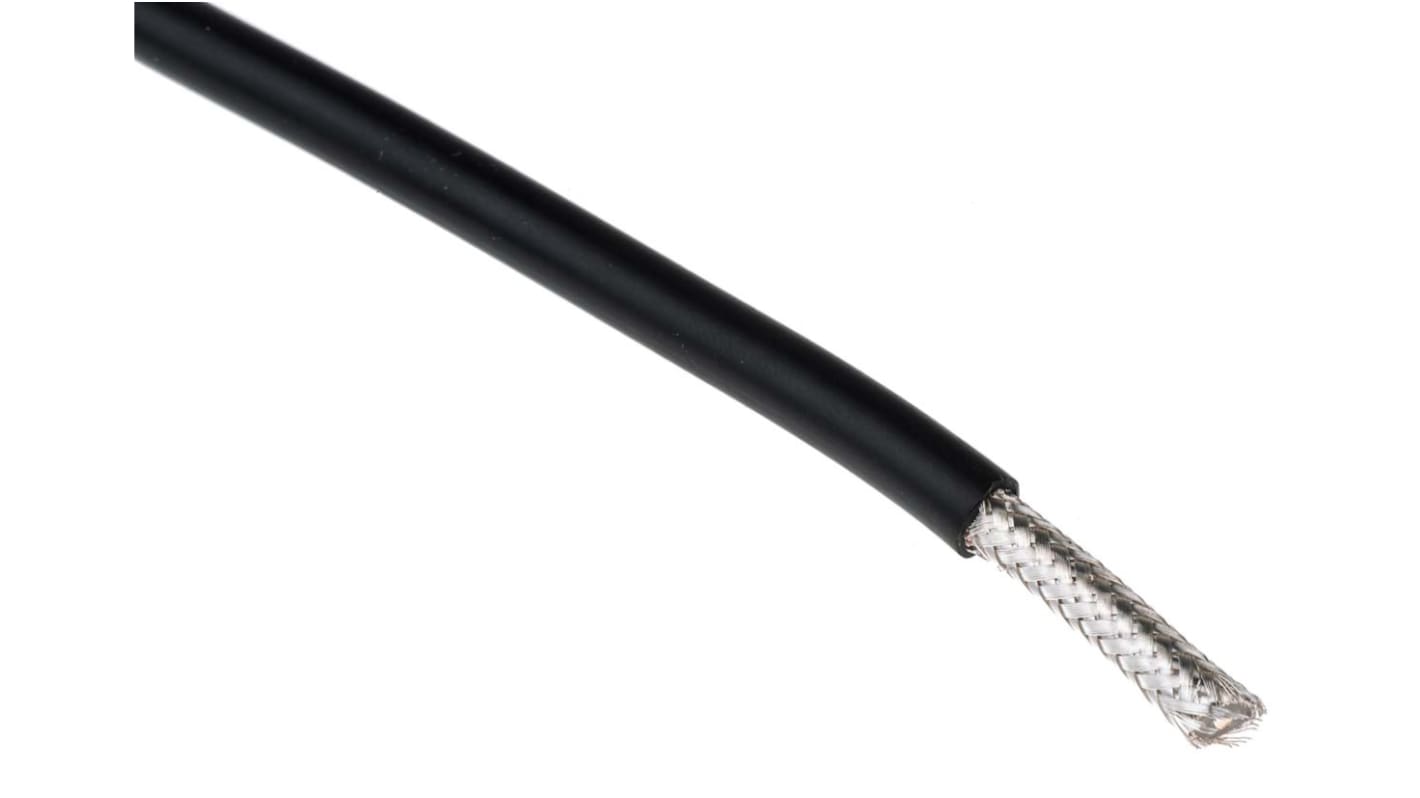

Bedea, 20m, RG223/U Coaxial, Unterminated50 Ω
- RS Stock No.:
- 260-5562
- Mfr. Part No.:
- RG223/U
- Manufacturer:
- Bedea
Subtotal (1 reel of 20 metres)**
MYR750.37
9 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Reel(s) | Per Reel | Per Metre** |
---|---|---|
1 + | MYR750.37 | MYR37.518 |
**price indicative
- RS Stock No.:
- 260-5562
- Mfr. Part No.:
- RG223/U
- Manufacturer:
- Bedea
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bedea | |
Terminated/Unterminated | Unterminated | |
Coaxial Type | RG223/U | |
Outer Diameter | 5.38mm | |
Characteristic Impedance | 50 Ω | |
Attenuation | 32.8 dB/100m @ 500MHz, 49 dB/100m @ 1GHz, 74.6 dB/100m @ 2GHz, 96.3 dB/100m @ 3GHz | |
Length | 20m | |
Sheath Colour | Black | |
Conductor Strand Type | Solid | |
Capacitance | 101pF/m | |
Conductor Material | Silver Plated Copper | |
Core Strands | 1/0.9 | |
Minimum Operating Temperature | -25°C | |
Size of Strands | 0.9 mm | |
Insulation Material | PE | |
Sheath Material | Polyvinyl Chloride PVC | |
Number of Strands | 1 | |
Operating Temperature Range | -25 → +70 °C | |
Maximum Operating Temperature | +70°C | |
Velocity ratio | 66% | |
Select all | ||
---|---|---|
Brand Bedea | ||
Terminated/Unterminated Unterminated | ||
Coaxial Type RG223/U | ||
Outer Diameter 5.38mm | ||
Characteristic Impedance 50 Ω | ||
Attenuation 32.8 dB/100m @ 500MHz, 49 dB/100m @ 1GHz, 74.6 dB/100m @ 2GHz, 96.3 dB/100m @ 3GHz | ||
Length 20m | ||
Sheath Colour Black | ||
Conductor Strand Type Solid | ||
Capacitance 101pF/m | ||
Conductor Material Silver Plated Copper | ||
Core Strands 1/0.9 | ||
Minimum Operating Temperature -25°C | ||
Size of Strands 0.9 mm | ||
Insulation Material PE | ||
Sheath Material Polyvinyl Chloride PVC | ||
Number of Strands 1 | ||
Operating Temperature Range -25 → +70 °C | ||
Maximum Operating Temperature +70°C | ||
Velocity ratio 66% | ||
