Select all	Attribute	Value
	Brand	Belden
	Terminated/Unterminated	Unterminated
	Coaxial Type	RG11/U
	Outer Diameter	10.16mm
	CPR Certification	Eca
	Characteristic Impedance	75 Ω
	Attenuation	0.54 dB/100 m
	Length	304.8m
	Sheath Colour	Black
	Fire Behaviour	Flame Retardant
	Conductor Strand Type	Solid
	Voltage Rating	300 V
	Size of Strands	14 AWG
	Minimum Operating Temperature	-20°C
	Insulation Material	Foam HDPE
	Maximum Operating Temperature	+75°C
	Capacitance	50.85pF/m
	Velocity ratio	85%
	Operating Temperature Range	-20 → +75 °C
	Sheath Material	Polyvinyl Chloride PVC
	Conductor Material	Silver Plated Copper
	Series	4731R
	Shielding	Tinned Copper Braid

	Select all
	Brand Belden
	Terminated/Unterminated Unterminated
	Coaxial Type RG11/U
	Outer Diameter 10.16mm
	CPR Certification Eca
	Characteristic Impedance 75 Ω
	Attenuation 0.54 dB/100 m
	Length 304.8m
	Sheath Colour Black
	Fire Behaviour Flame Retardant
	Conductor Strand Type Solid
	Voltage Rating 300 V
	Size of Strands 14 AWG
	Minimum Operating Temperature -20°C
	Insulation Material Foam HDPE
	Maximum Operating Temperature +75°C
	Capacitance 50.85pF/m
	Velocity ratio 85%
	Operating Temperature Range -20 → +75 °C
	Sheath Material Polyvinyl Chloride PVC
	Conductor Material Silver Plated Copper
	Series 4731R
	Shielding Tinned Copper Braid

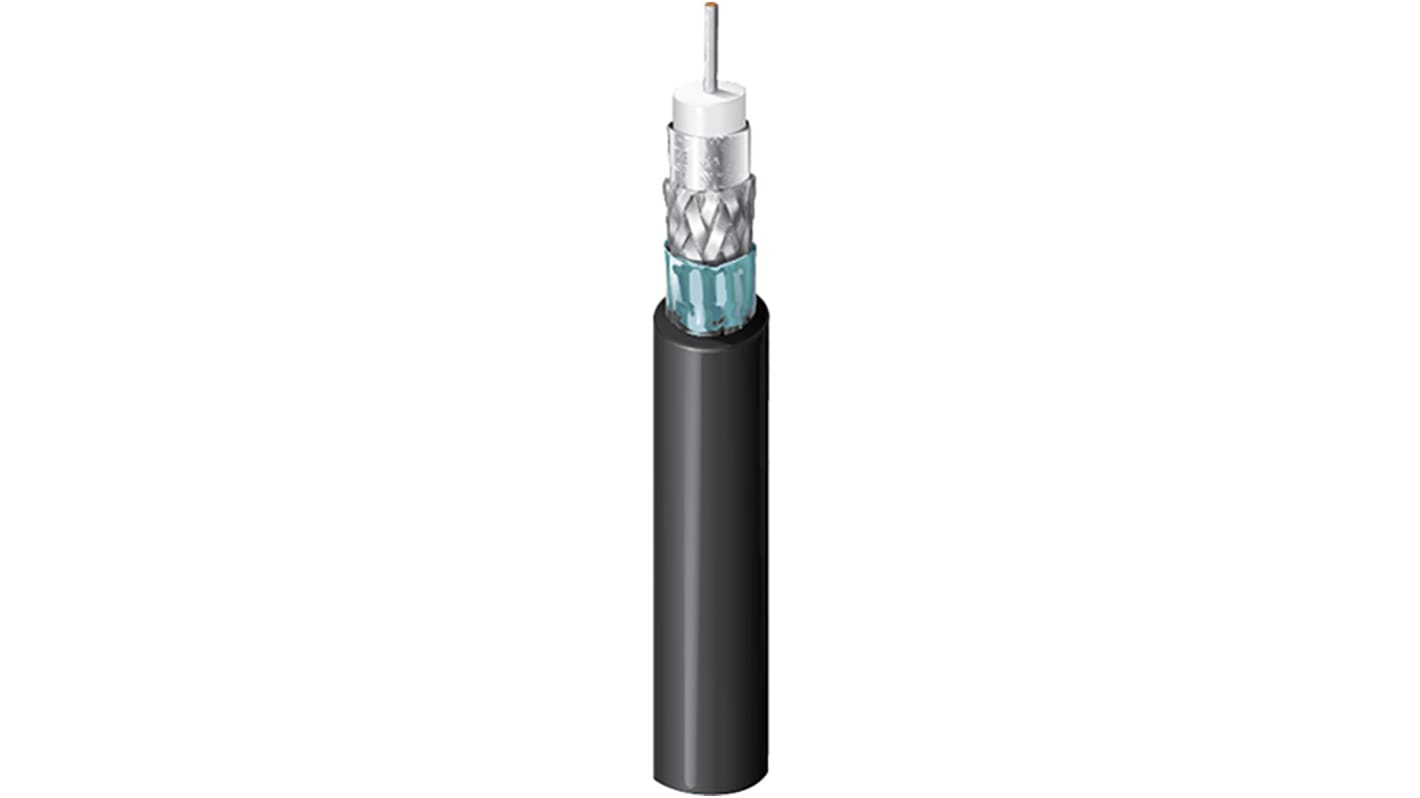

Belden 4731R Series, 304.8m, RG11/U Coaxial, Unterminated75 Ω

FREE delivery for orders over MYR500.00

Belden Coaxial Cable, RG11/U Type, 304.8m Length - 4K Series - 4731R 0101000

Features & Benefits

Applications

What's the difference between an RG6 and an RG11 coaxial cable?

What's the transmission speed of this cable?
