Select all	Attribute	Value
	Brand	Belden
	Terminated/Unterminated	Unterminated
	Coaxial Type	Mini RG59
	Outer Diameter	(Jacket) 4.6mm
	CPR Certification	Dca
	Characteristic Impedance	75 Ω
	Attenuation	2.8 dB/100m @ 5 MHz
	Length	500m
	Sheath Colour	Green
	Conductor Strand Type	Solid
	Fire Behaviour	Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Series	1855ECH
	Operating Temperature Range	-30 → +70 °C
	Minimum Operating Temperature	-30°C
	Velocity ratio	0.84
	Conductor Material	Bare Copper
	Insulation Material	FPE
	Capacitance	53pF/m
	Shielding	Tinned Copper Braid
	Sheath Material	Low Smoke Zero Halogen (LSZH)
	Maximum Operating Temperature	+70°C
	Standards Met	Euroclass Cca

	Select all
	Brand Belden
	Terminated/Unterminated Unterminated
	Coaxial Type Mini RG59
	Outer Diameter (Jacket) 4.6mm
	CPR Certification Dca
	Characteristic Impedance 75 Ω
	Attenuation 2.8 dB/100m @ 5 MHz
	Length 500m
	Sheath Colour Green
	Conductor Strand Type Solid
	Fire Behaviour Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Series 1855ECH
	Operating Temperature Range -30 → +70 °C
	Minimum Operating Temperature -30°C
	Velocity ratio 0.84
	Conductor Material Bare Copper
	Insulation Material FPE
	Capacitance 53pF/m
	Shielding Tinned Copper Braid
	Sheath Material Low Smoke Zero Halogen (LSZH)
	Maximum Operating Temperature +70°C
	Standards Met Euroclass Cca

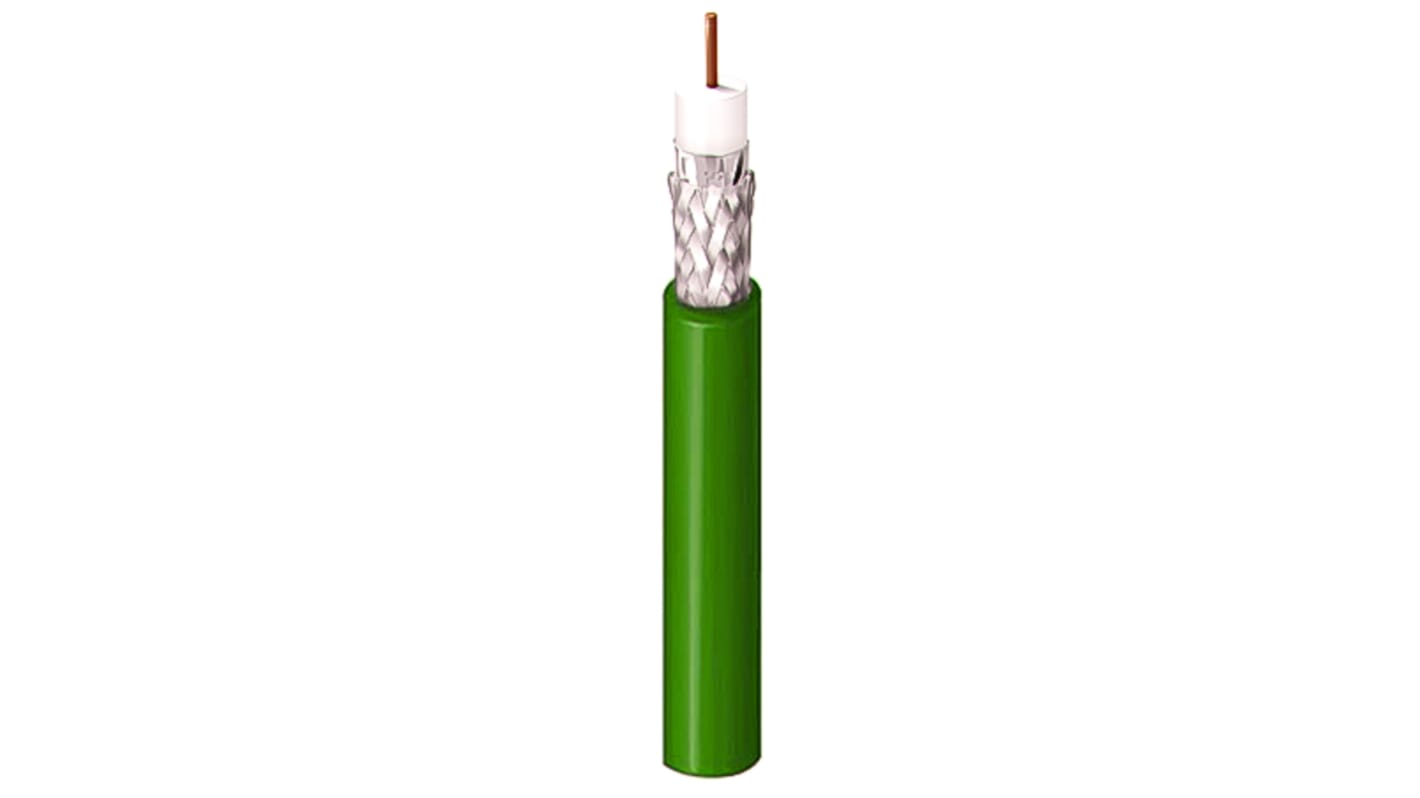

Belden 1855ECH Series, 500m, Mini RG59 Coaxial, Unterminated75 Ω

FREE delivery for orders over MYR500.00

Belden COAX Mini RG59/U LSZH-C Precision Video Coaxial Cable

Applications:

Standards:

Belden Green 75 Ohm SDI Coax, 22 AWG Solid BC, Foil + 90% TC Braid, LSZH-C Jk, Dca - 1855ECH.00500
