Units	Per Unit
1 - 9	MYR47.42
10 - 24	MYR46.00
25 - 49	MYR44.62
50 +	MYR43.29

Select all	Attribute	Value
	Brand	Samtec
	Terminated/Unterminated	Terminated
	Connector 1	MHF1
	Coaxial Type	RF
	Connector 2	SMA
	Connector 1 Gender	Male
	Connector 2 Gender	Male
	Outer Diameter	1.13mm
	Characteristic Impedance	50 Ω
	Attenuation	2 dB
	Length	150mm
	Sheath Colour	White
	Voltage Rating	170 V
	Series	MH113
	Standards Met	UL
	Shielding	Tinned Copper Braid
	Capacitance	95pF/m
	Minimum Operating Temperature	-40°C
	Sheath Material	FEP
	Operating Temperature Range	-40 → +90 °C
	Insulation Material	PBT, PTFE
	Maximum Operating Temperature	+90°C
	Conductor Material	Copper

	Select all
	Brand Samtec
	Terminated/Unterminated Terminated
	Connector 1 MHF1
	Coaxial Type RF
	Connector 2 SMA
	Connector 1 Gender Male
	Connector 2 Gender Male
	Outer Diameter 1.13mm
	Characteristic Impedance 50 Ω
	Attenuation 2 dB
	Length 150mm
	Sheath Colour White
	Voltage Rating 170 V
	Series MH113
	Standards Met UL
	Shielding Tinned Copper Braid
	Capacitance 95pF/m
	Minimum Operating Temperature -40°C
	Sheath Material FEP
	Operating Temperature Range -40 → +90 °C
	Insulation Material PBT, PTFE
	Maximum Operating Temperature +90°C
	Conductor Material Copper

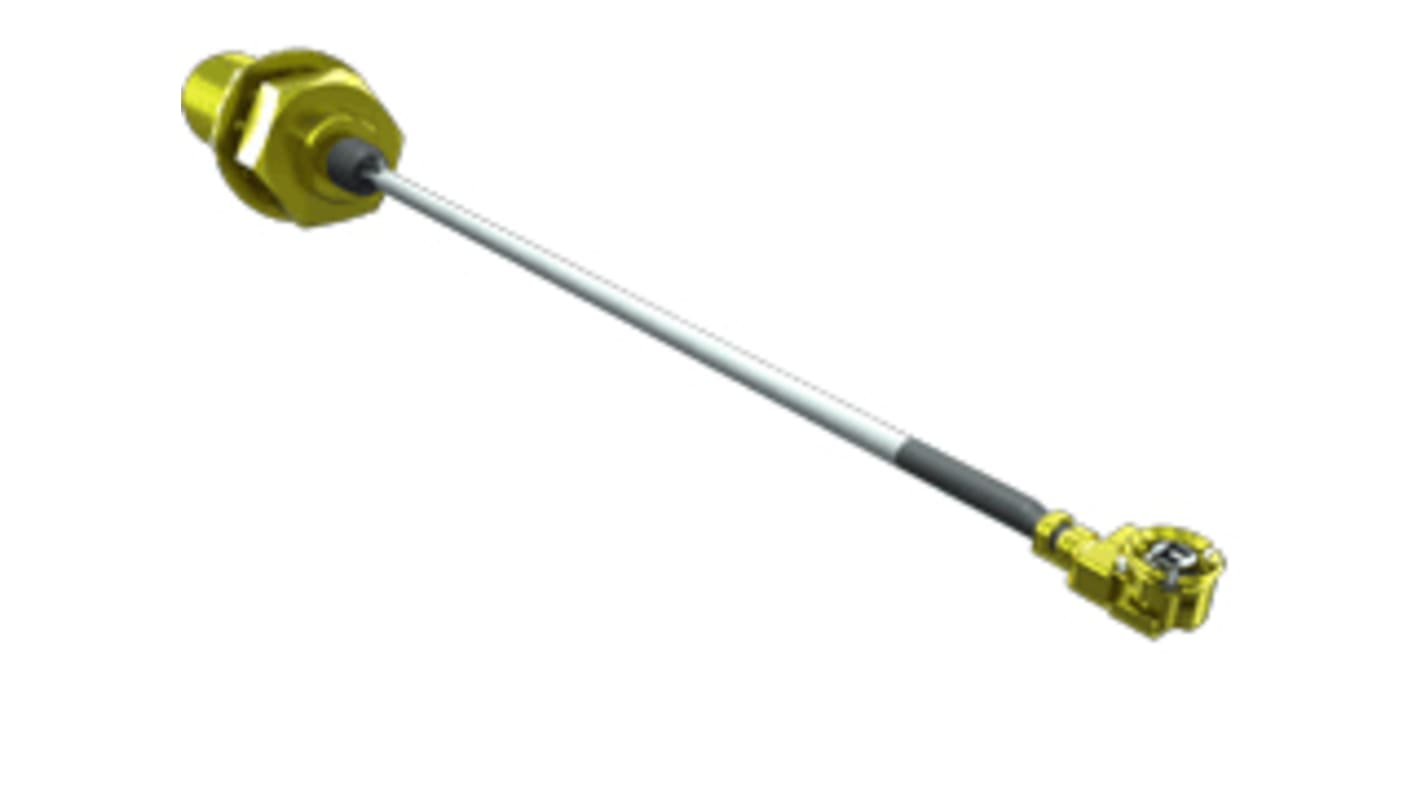

Samtec MH113 Series Male MHF1 to Male SMA, 150mm, RF Coaxial, Terminated50 Ω

FREE delivery for orders over MYR500.00

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
