Samtec GRF1-C Series Male MMCX to Male MMCX Coaxial Cable, 100mm, RG316 Coaxial, Terminated
- RS Stock No.:
- 123-6826
- Mfr. Part No.:
- GRF1-P-C-06-0100-C1-D-S
- Manufacturer:
- Samtec
Temporarily out of stock - back order for despatch 03/07/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR1,060.69
| Units | Per Unit |
| 1 - 24 | MYR1,060.69 |
| 25 - 49 | MYR1,038.43 |
| 50 - 99 | MYR1,007.27 |
| 100 - 249 | MYR982.49 |
| 250 + | MYR960.99 |
- RS Stock No.:
- 123-6826
- Mfr. Part No.:
- GRF1-P-C-06-0100-C1-D-S
- Manufacturer:
- Samtec
Technical data sheets
Legislation and Compliance
Product Details

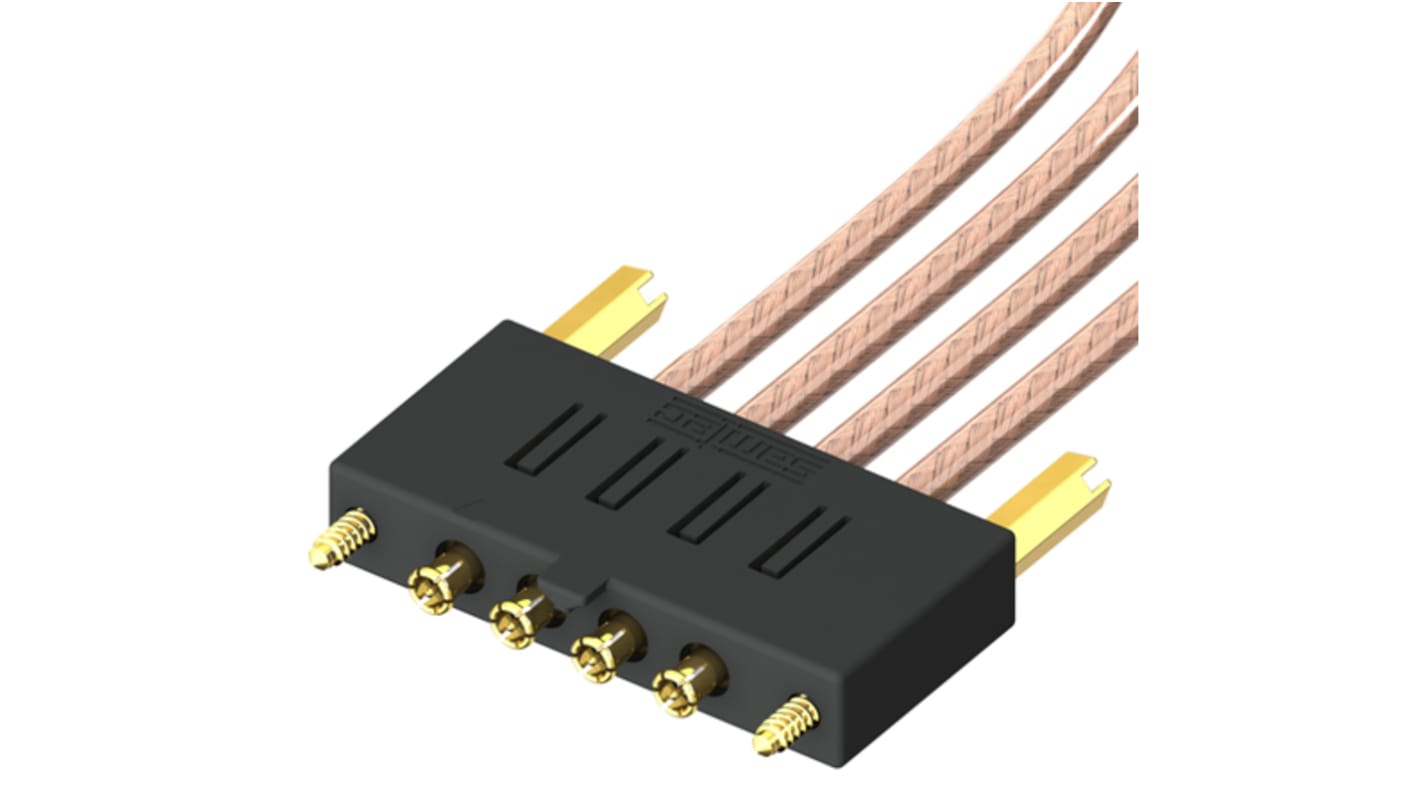

Samtec Ganged MMCX Cable Assemblies
From Samtec, a range of ganged micro-mini MMCX RF cable assemblies. The 50ohm MMCX cable assemblies are constructed from RG 316 cable and have double ended ganged plugs housed in robust polycarbonate housings. One end supplied with captive panel screws. The MMXC connections feature a snap together design allowing for 360° rotation when mated. Ideal for space critical applications. Available in various lengths and number of positions. Mates with GRF1J series MMCX jacks, typical part number 123-6808
Features and Benefits
Multiple positions
Micro miniature size
Reliable snap together connection
Durable polycarbonate housings
Micro miniature size
Reliable snap together connection
Durable polycarbonate housings
Applications
WiFi
GPS
PCMCIA
GPS
PCMCIA
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Samtec MMCX
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Terminated |
| Connector 1 | MMCX |
| Coaxial Type | RG316 |
| Connector 2 | MMCX |
| Connector 1 Gender | Male |
| Connector 2 Gender | Male |
| Characteristic Impedance | 50 Ω |
| Length | 100mm |
| Current Rating | 5 A |
| Sheath Colour | Amber |
| Series | GRF1-C |
| Conductor Material | Silver Plated Copper |
| Standards Met | cULus Recognised |
| Maximum Operating Temperature | +90°C |
| Minimum Operating Temperature | -40°C |
| Shielding | Silver Plated Copper Clad Steel |
| Insulation Material | PTFE |
| Operating Temperature Range | -40 → +90 °C |
