RS PRO Clamp Meter, 1000 A 5000 μA 600 V dc 600 V ac CAT II, CAT III

RS Stock No.:: 200-3702
Distrelec Article No.:: 303-91-536
Manufacturer:: RS PRO

RS PRO Clamp Meter, 1000 A 5000 μA 600 V dc 600 V ac CAT II, CAT III

Bulk discount available

Subtotal (1 unit)*

MYR905.70

FREE delivery for orders over RM 500.00

In Stock

10 unit(s) ready to ship
Plus 646 unit(s) ready to ship from another location
Plus 6 unit(s) shipping from 30 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 4	MYR905.70
5 +	MYR745.40

*price indicative

RS Stock No.:: 200-3702
Distrelec Article No.:: 303-91-536
Manufacturer:: RS PRO

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Clamp Meter
	Maximum DC Current Measurement	1000A
	Resistance Resolution	1kΩ
	Maximum AC Voltage Measurement	600V ac
	Maximum DC Voltage Measurement	600V dc
	Maximum Resistance Measurement	500Ω
	DC Voltage Accuracy	±0.1 % rdg + 4 Digits
	Clamp Meter Type	AC/DC Clamp Meter
	AC Voltage Resolution	0.1V ac
	DC Voltage Resolution	0.1 V dc
	AC Current Accuracy	±2.5 % rdg + 5 Digits
	AC Current Resolution	0.1μA
	Minimum Operating Temperature	5°C
	AC Voltage Accuracy	±1 % rdg + 30 Digits
	DC Current Resolution	0.1A
	DC Current Accuracy	±2.5 % rdg + 5 Digits
	Maximum Jaw Opening	48mm
	Maximum Operating Temperature	40°C
	Width	76mm
	Weight	315g
	Standards/Approvals	No
	Length	230mm
	Height	40mm
	True RMS	Yes
	Functions Measured	DC Voltage, Capacitance, AC Current, Frequency, Continuity, Resistance, Duty Cycle, AC Voltage, Temperature, DC Current, Diode
	Maximum Temperature Measurement	1000°C
	Display Type	LCD Backlight
	Non-Contact Voltage Detector	No
	Safety Category Level	CAT II, CAT III
	Power Source	Battery
	Safety Category Voltage	600V ac
	Maximum AC Current Measurement	5000μA

	Select all
	Brand RS PRO
	Product Type Clamp Meter
	Maximum DC Current Measurement 1000A
	Resistance Resolution 1kΩ
	Maximum AC Voltage Measurement 600V ac
	Maximum DC Voltage Measurement 600V dc
	Maximum Resistance Measurement 500Ω
	DC Voltage Accuracy ±0.1 % rdg + 4 Digits
	Clamp Meter Type AC/DC Clamp Meter
	AC Voltage Resolution 0.1V ac
	DC Voltage Resolution 0.1 V dc
	AC Current Accuracy ±2.5 % rdg + 5 Digits
	AC Current Resolution 0.1μA
	Minimum Operating Temperature 5°C
	AC Voltage Accuracy ±1 % rdg + 30 Digits
	DC Current Resolution 0.1A
	DC Current Accuracy ±2.5 % rdg + 5 Digits
	Maximum Jaw Opening 48mm
	Maximum Operating Temperature 40°C
	Width 76mm
	Weight 315g
	Standards/Approvals No
	Length 230mm
	Height 40mm
	True RMS Yes
	Functions Measured DC Voltage, Capacitance, AC Current, Frequency, Continuity, Resistance, Duty Cycle, AC Voltage, Temperature, DC Current, Diode
	Maximum Temperature Measurement 1000°C
	Display Type LCD Backlight
	Non-Contact Voltage Detector No
	Safety Category Level CAT II, CAT III
	Power Source Battery
	Safety Category Voltage 600V ac
	Maximum AC Current Measurement 5000μA

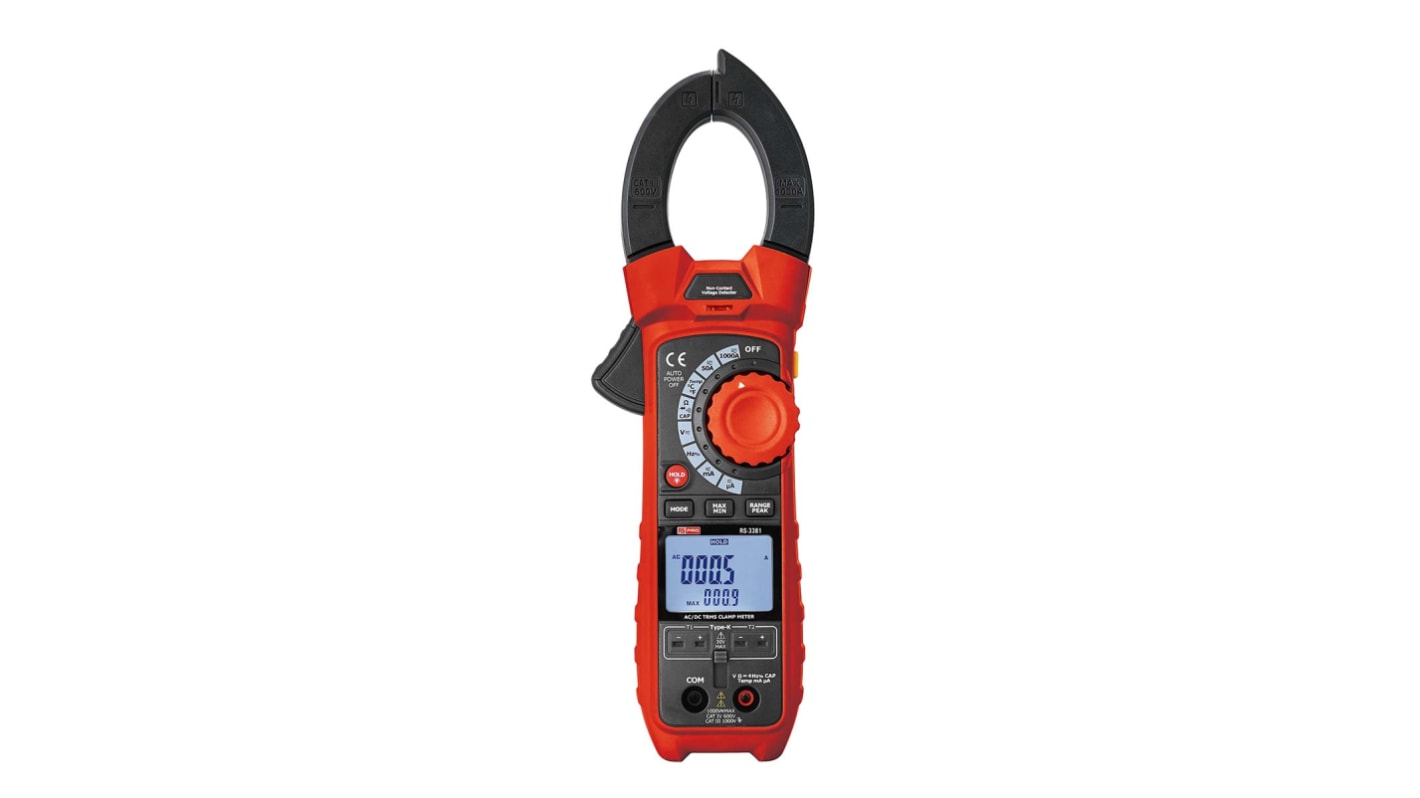

RS PRO True RMS AC/DC Clamp Meter with Dual Type K Inputs

Introducing the RS PRO True RMS Clamp Meter, ideal for applications that require AC and DC measurements. The device can measure current between 0.5A AC/DC and 1000A AC/DC, plus much more and is powered by a 9 V battery. Measurements are easy to read thanks to the large backlit LCD screen, making the clamp meter ideal for use even in environments with little light or poor visibility. This high-quality RS PRO clamp meter is a versatile tool that can be used across a range of applications and environments.

Features and Benefits:

The RS PRO True RMS clamp meter is a high-performing solution for AC and DC current measurement, thanks to the high accuracy probe

Designed with a large, easy-to-read backlit LCD display for greater functionality, the clamp meter is also ideal for use in low light environments

As well as this, the ergonomic, double moulded case is specially designed for heavy duty use in tough environments, ensuring optimum performance

The meter also offers additional measurements for resistance, capacitance, frequency, diode test, duty cycle and continuity and features a dual input thermocouple temperature and non-contact voltage detector

The device is battery-powered for maximum portability, and with a large backlit screen, this power clamp meter is ideal for on-the-go applications in almost any environment

In addition to this, it comes with a low battery indicator function to ensure it offers plenty of warning before the battery runs out, especially during testing

The clamp meter comes with a 9 V battery, test leads and a temperature probe

It is also supplied in a carry case to keep the clamp meter safe and secure during transit

Applications:

Clamp meters are an electrical test tool used to measure electrical characteristics such as AC current, AC and DC voltage, resistance, continuity and more. Clamp meters are often a combination of a basic digital multimeter and a current sensor, offering a versatile electrical measurement tool. The main advantage of these devices is that allows the user to take a reading from a wire without touching it, which is safer and more convenient than other methods. Clamp meters are commonly used by:

Industrial maintenance technicians

Control technicians

Electricians – in-house and contractors

Facilities, building maintenance and HVAC technicians

Service organisations
