Soler&Palau CBT-N Series Centrifugal Centrifugal Fan, 400V, 400 m³/h, AC Operation 39116 cm x 30226cm x 35306 cm
- RS Stock No.:
- 315-536
- Mfr. Part No.:
- 300065 - CBT 60 N
- Manufacturer:
- Soler&Palau
Subtotal (1 unit)*
MYR7,524.94
FREE delivery for orders over RM 150.00
Stocked by manufacturer
- Ready to ship from 17 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR7,524.94 |
*price indicative
- RS Stock No.:
- 315-536
- Mfr. Part No.:
- 300065 - CBT 60 N
- Manufacturer:
- Soler&Palau
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Soler&Palau | |
| Product Type | Centrifugal Fan | |
| Supply Voltage | 400V | |
| Blower Type | Centrifugal | |
| AC or DC Operation | AC | |
| Air Flow | 400m³/h | |
| Series | CBT-N | |
| Width | 30226cm | |
| Fan Speed | 2800rpm | |
| Noise Level | 80dB | |
| Bearing Type | Ball | |
| Depth | 35306cm | |
| Standards/Approvals | ATEX, AMCA 210-99, ISO 5801 | |
| Height | 39116cm | |
| Maximum Current | 4.3A | |
| IP Rating | IP44, IP55 | |
| Inlet Diameter | 130mm | |
| Select all | ||
|---|---|---|
Brand Soler&Palau | ||
Product Type Centrifugal Fan | ||
Supply Voltage 400V | ||
Blower Type Centrifugal | ||
AC or DC Operation AC | ||
Air Flow 400m³/h | ||
Series CBT-N | ||
Width 30226cm | ||
Fan Speed 2800rpm | ||
Noise Level 80dB | ||
Bearing Type Ball | ||
Depth 35306cm | ||
Standards/Approvals ATEX, AMCA 210-99, ISO 5801 | ||
Height 39116cm | ||
Maximum Current 4.3A | ||
IP Rating IP44, IP55 | ||
Inlet Diameter 130mm | ||
- COO (Country of Origin):
- ES

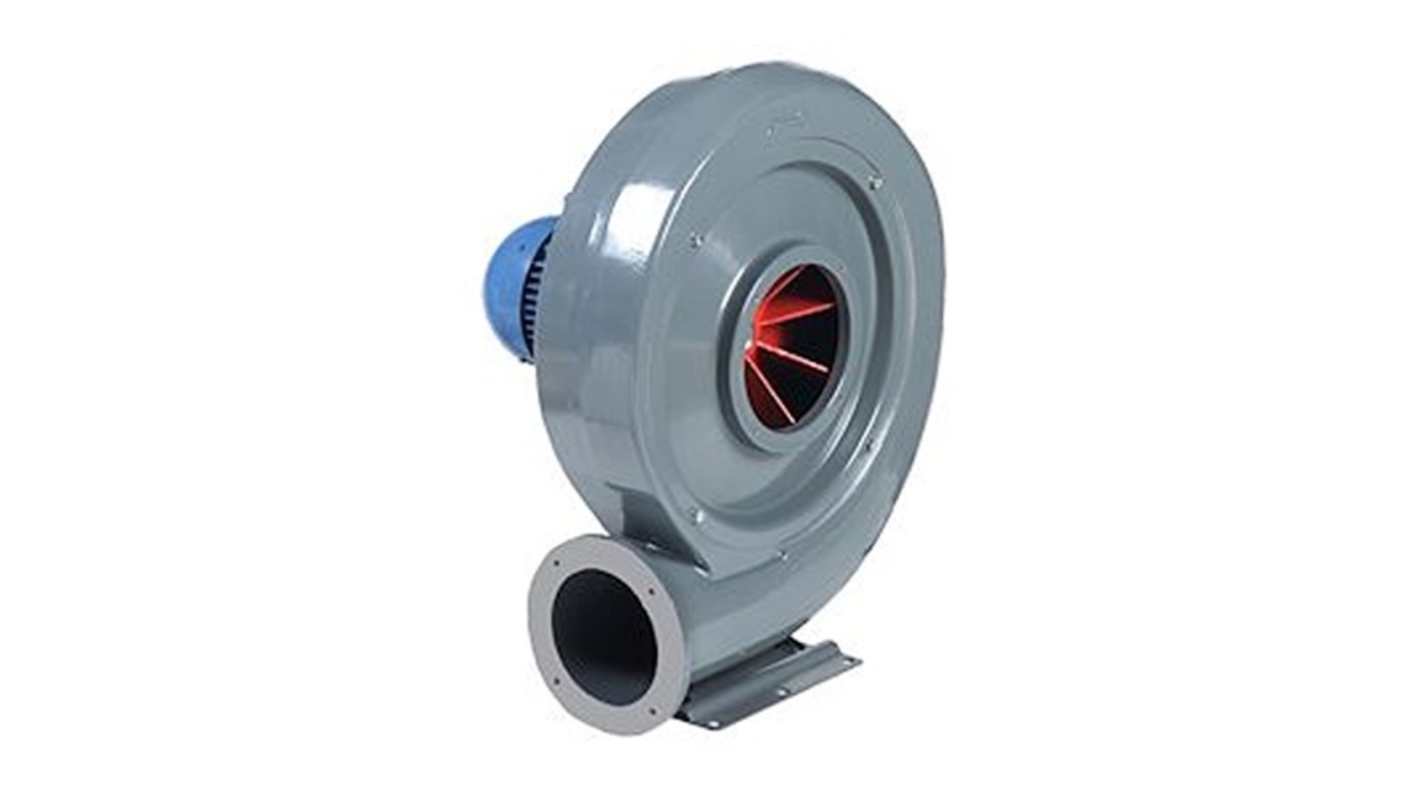

The UNELVENT Single centrifugal fans are high-performance ventilation solutions designed for medium-pressure applications. These fans are ideal for transporting air or extracting hot gasses in industrial environments with a solid ground volute and a dynamically balanced radial blade turbine. The CBT-N series minimizes noise and vibration, ensuring efficient and reliable operation.
Suitable for medium pressure systems
IP44 for CSB and CST models
ATEX approved
