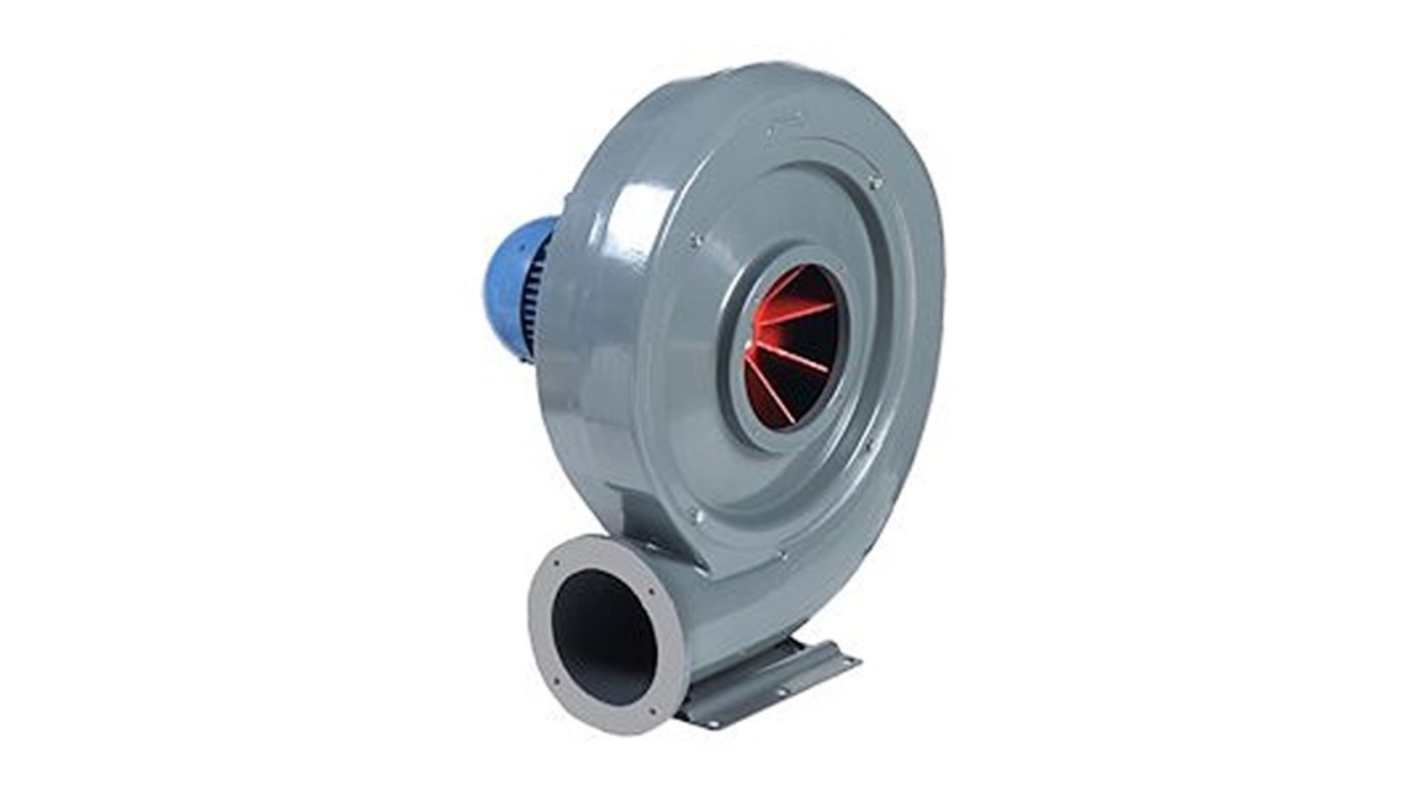

Soler&Palau CBT-N Series Centrifugal Centrifugal Fan, 400V, 1250 m³/h, AC Operation 52578 cm x 38862cm x 45.72 m
- RS Stock No.:
- 315-538
- Mfr. Part No.:
- 300062 - CBT 100 N
- Manufacturer:
- Soler&Palau
Subtotal (1 unit)*
MYR11,245.02
FREE delivery for orders over RM 150.00
Stocked by manufacturer
- Ready to ship from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR11,245.02 |
*price indicative
- RS Stock No.:
- 315-538
- Mfr. Part No.:
- 300062 - CBT 100 N
- Manufacturer:
- Soler&Palau
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Soler&Palau | |
| Supply Voltage | 400V | |
| Product Type | Centrifugal Fan | |
| Blower Type | Centrifugal | |
| AC or DC Operation | AC | |
| Air Flow | 1250m³/h | |
| Series | CBT-N | |
| Width | 38862cm | |
| Fan Speed | 2800rpm | |
| Noise Level | 80dB | |
| Height | 52578cm | |
| Depth | 45.72m | |
| Standards/Approvals | RoHS | |
| IP Rating | IP55, IP44 | |
| Inlet Diameter | 130mm | |
| Select all | ||
|---|---|---|
Brand Soler&Palau | ||
Supply Voltage 400V | ||
Product Type Centrifugal Fan | ||
Blower Type Centrifugal | ||
AC or DC Operation AC | ||
Air Flow 1250m³/h | ||
Series CBT-N | ||
Width 38862cm | ||
Fan Speed 2800rpm | ||
Noise Level 80dB | ||
Height 52578cm | ||
Depth 45.72m | ||
Standards/Approvals RoHS | ||
IP Rating IP55, IP44 | ||
Inlet Diameter 130mm | ||
- COO (Country of Origin):
- ES
The UNELVENT Single centrifugal fans are high-performance ventilation solutions designed for medium-pressure applications. These fans are ideal for transporting air or extracting hot gasses in industrial environments with a solid ground volute and a dynamically balanced radial blade turbine. The CBT-N series minimizes noise and vibration, ensuring efficient and reliable operation.
Suitable for medium pressure systems
IP44 for CSB and CST models
ATEX approved
