RS PRO Silicone Rubber Green Cable Sleeve, 2mm Diameter, 10m Length
- RS Stock No.:
- 399-439
- Manufacturer:
- RS PRO
90 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
1210 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR9.467
| Units | Per Unit | Per Reel* |
| 10 - 140 | MYR9.467 | MYR94.67 |
| 150 - 740 | MYR9.279 | MYR92.79 |
| 750 + | MYR7.637 | MYR76.37 |
| *price indicative | ||
- RS Stock No.:
- 399-439
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

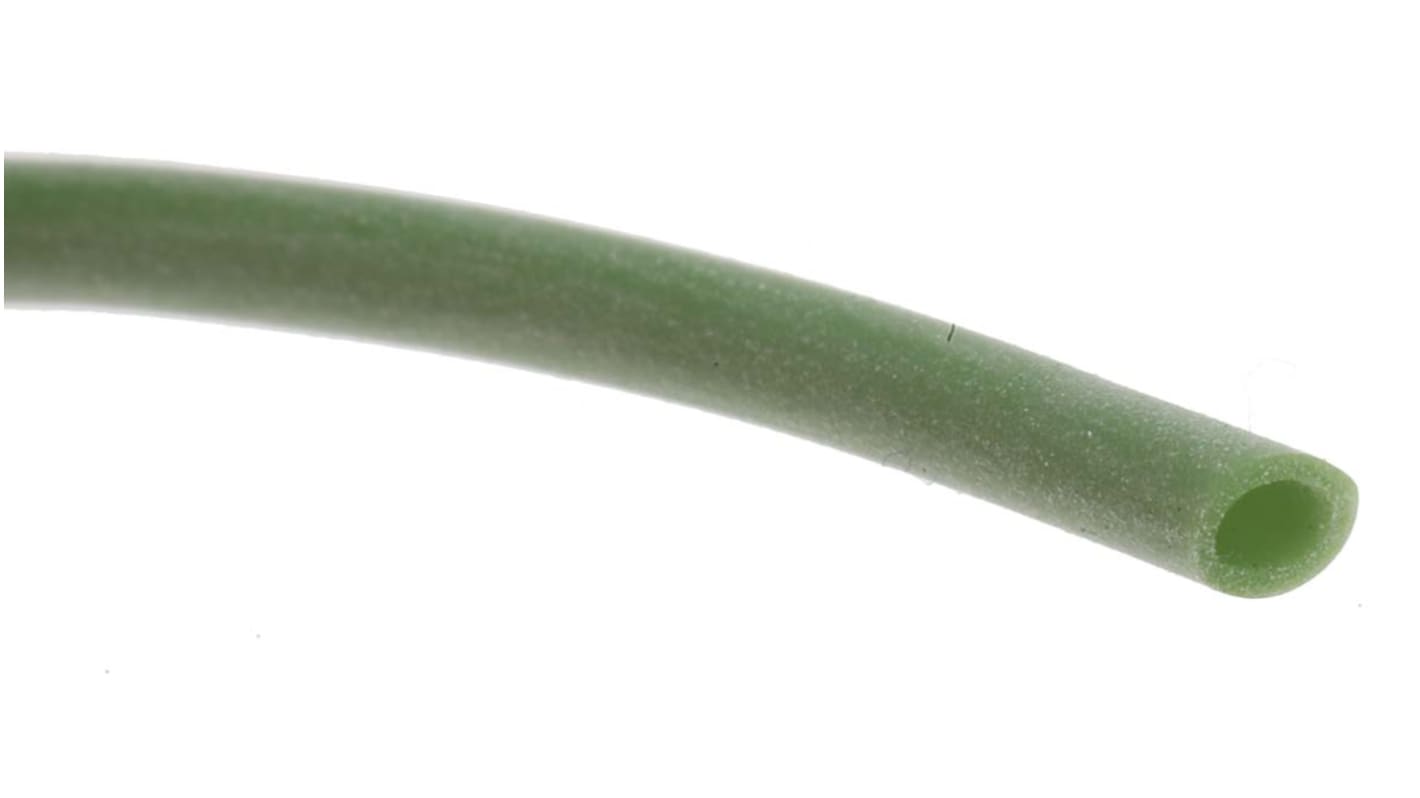

Silicone Rubber Cable Sleeve
The silicone rubber cable sleeving is the ideal insulation for use with wire/cable harnessing applications.
Features and benefits
• To Class H insulation (B.S.2757 180°C continuous) and B.S. 2848 180T
• High temperature range and extremely flexible
• Suitable for use in mobile phone and static applications
Features and Benefits
• High operating temperature of -60 to +180°
• Flexible and elastic
• Ozone and UV resistant
• Fungus resistant
• Self extinguishing
• Flexible and elastic
• Ozone and UV resistant
• Fungus resistant
• Self extinguishing
Where is Silicone Rubber Sleeving Used?
The unique properties of this silicone rubber cable sleeving make it ideal for insulating and protecting cables or wires that are being used in demanding high-temperature environments. This sleeving is especially useful for cable bundling and harnessing because of its high elasticity and flexibility. An additional use for this sleeving is for simple fluid carrying applications and with peristaltic hose pumps.
Note
These products are now supplied in bags, not on a reel. The "sleeve diameter" is the bore diameter of the sleeve.
Standards
BS 2848 180T
Specifications
Attribute | Value |
|---|---|
| Sleeve Diameter | 2mm |
| Colour | Green |
| Material | Silicone Rubber |
| Sleeve Length | 10m |
| Braided | No |
| Minimum Operating Temperature | -60°C |
| Maximum Operating Temperature | +180°C |
| Dielectric Strength | 20kV/mm |
| Wall Thickness | 0.5mm |
| Standards Met | RoHS Compliant, UL E345553 |
