- RS Stock No.:
- 187-9453
- Mfr. Part No.:
- 633-02030 HV1203-PVC-FR-BK
- Manufacturer:
- HellermannTyton
View all Cable Grommets
5 In Global stock for delivery within 4 - 6 working days
216 In Global stock for delivery within 4 - 6 working days
Price 1 Bag of 100
MYR77.91
Bag(s) | Per Bag | Per Unit* |
1 - 4 | MYR77.91 | MYR0.779 |
5 - 9 | MYR76.53 | MYR0.765 |
10 + | MYR74.60 | MYR0.746 |
*price indicative |
- RS Stock No.:
- 187-9453
- Mfr. Part No.:
- 633-02030 HV1203-PVC-FR-BK
- Manufacturer:
- HellermannTyton
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
HV Series Feedthrough Grommets
The HV series from HellermannTyton are feedthrough grommets which offer outstanding protection when wires and cables are fed through exit points or gaps. The HV series offer mechanical protection the feedthrough grommets insulate, protect from touch and dampen vibrations.
There are a range of different sizes available to suit your application. Please refer to the table and diagram below to find your grommet.
There are a range of different sizes available to suit your application. Please refer to the table and diagram below to find your grommet.
HellermannTyton Cable Grommet, 2mm Maximum Panel Thickness, 55±5 Shore Hardness A - HV Series - 633-02030 HV1203-PVC-FR-BK

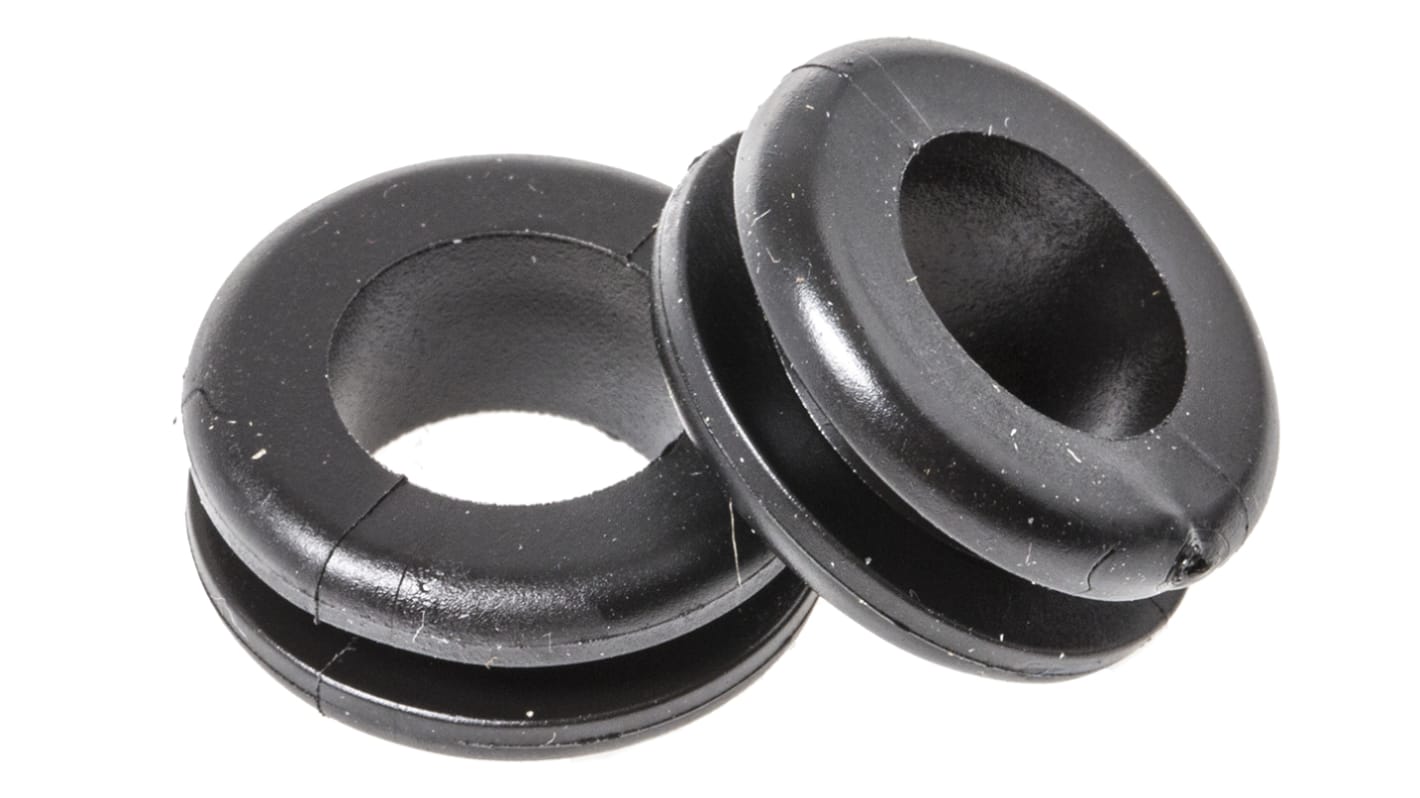

The HV1203 (633-02030) from HellermannTyton is a cable grommet for 12mm holes in panels up to 2mm. Grommets sit in electrical installations to provide protection against sharp edges and strain relief to the cables that feed through.
Often, when holes are cut into panels, they leave a sharp edge. The HV1203 grommet sits in this hole to provide a bumper around the edge. This bumper protects the wires that pass through.
Often, when holes are cut into panels, they leave a sharp edge. The HV1203 grommet sits in this hole to provide a bumper around the edge. This bumper protects the wires that pass through.
Why choose PVC?
Robust PVC material resists impacts, abrasion and corrosion to deliver a long service life
Performs reliably in challenging operating temperatures between -30°C and +60°C
Accepts cables up to a maximum diameter of 10mm for wide compatibility
Performs reliably in challenging operating temperatures between -30°C and +60°C
Accepts cables up to a maximum diameter of 10mm for wide compatibility
Applications
Electronics systems
Industrial automation
Mechanical engineering
Industrial automation
Mechanical engineering
The HV1203 is made from black, flame-retardant PVC. PVC is a strong, durable material which I ideal for providing protection to the cables.
The PVC used for these cable grommets is flexible which makes it easy to apply to your electrical installation.
The PVC used for these cable grommets is flexible which makes it easy to apply to your electrical installation.
Does this cable grommet have any fire-safety features?
Yes. It's made from flame-retardant material that self-extinguishes in under 10 seconds in the event of fire.
Specifications
Attribute | Value |
Grommet Type | Cable Grommet |
Minimum Panel Thickness | 2mm |
Minimum Cable Diameter | 10mm |
Maximum Cable Diameter | 11mm |
Panel Hole Diameter | 12mm |
Material | PVC |
Colour | Black |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +60°C |
Series | HV |
Maximum Panel Thickness | 6.8mm |
