- RS Stock No.:
- 136-6698
- Mfr. Part No.:
- 02580358010
- Manufacturer:
- SES Sterling
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
38 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Bag of 50
MYR1,271.92
Bag(s) | Per Bag | Per Unit* |
1 - 4 | MYR1,271.92 | MYR25.438 |
5 - 9 | MYR1,256.32 | MYR25.126 |
10 + | MYR1,239.36 | MYR24.787 |
*price indicative |
- RS Stock No.:
- 136-6698
- Mfr. Part No.:
- 02580358010
- Manufacturer:
- SES Sterling
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

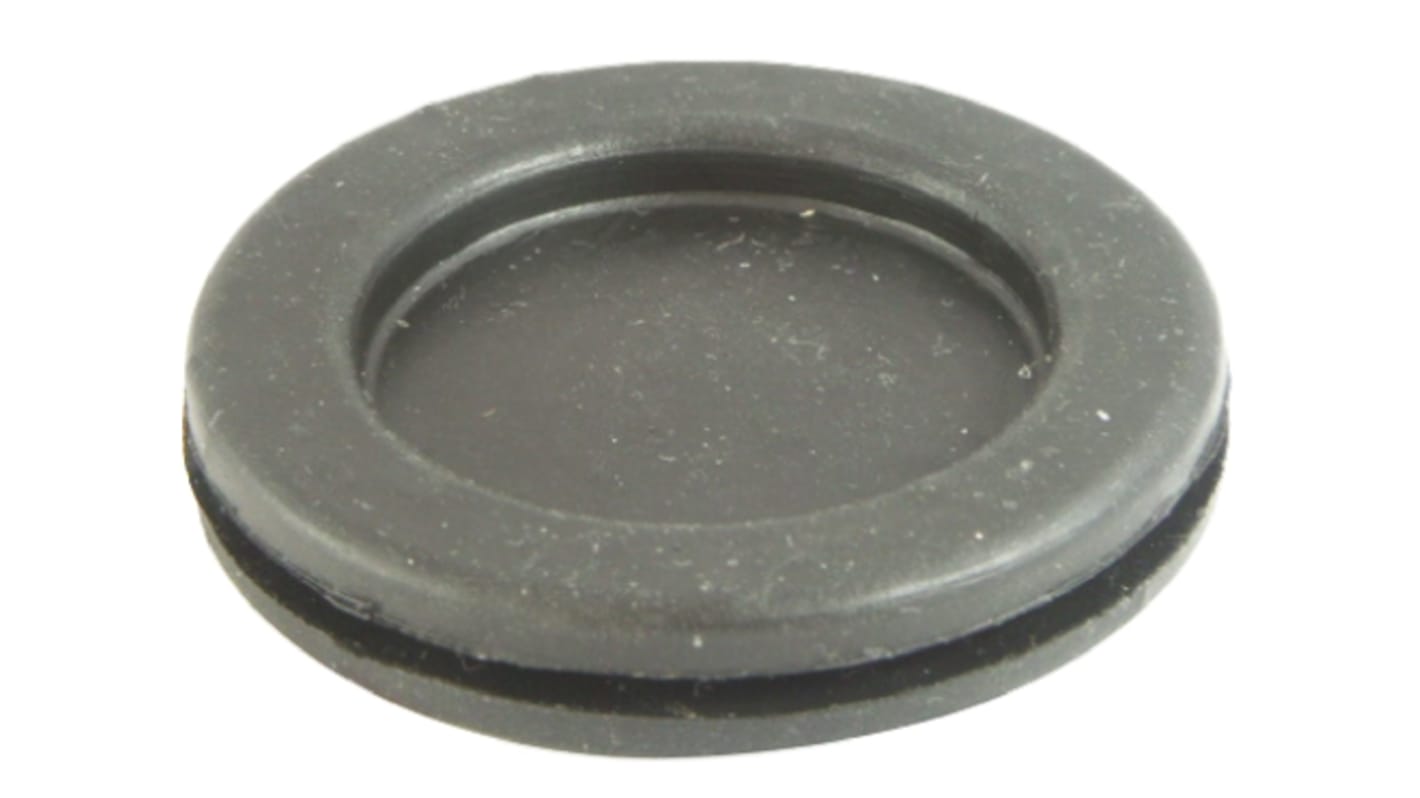

SES Sterling Membrane Grommet
The SES Membrane grommet has a maximum cable diameter of 48mm. It is made from black polychloroprene rubber. This grommet can be used to protect cables and wires when being passed through panels. It can also be used to seal off any unused entries in panels and enclosures.
Features and Benefits
Operating temperature ranges between -30°C and 90°C
Tensile strength is 7MPa
Ultimate elongation up to 400%
Tensile strength is 7MPa
Ultimate elongation up to 400%
Specifications
Attribute | Value |
---|---|
Grommet Type | Cable Grommet |
Minimum Cable Diameter | 1mm |
Panel Hole Diameter | 60mm |
Maximum Cable Diameter | 48mm |
Material | Polychloroprene |
Colour | Black |
Series | DG |
Maximum Panel Thickness | 2.5mm |
