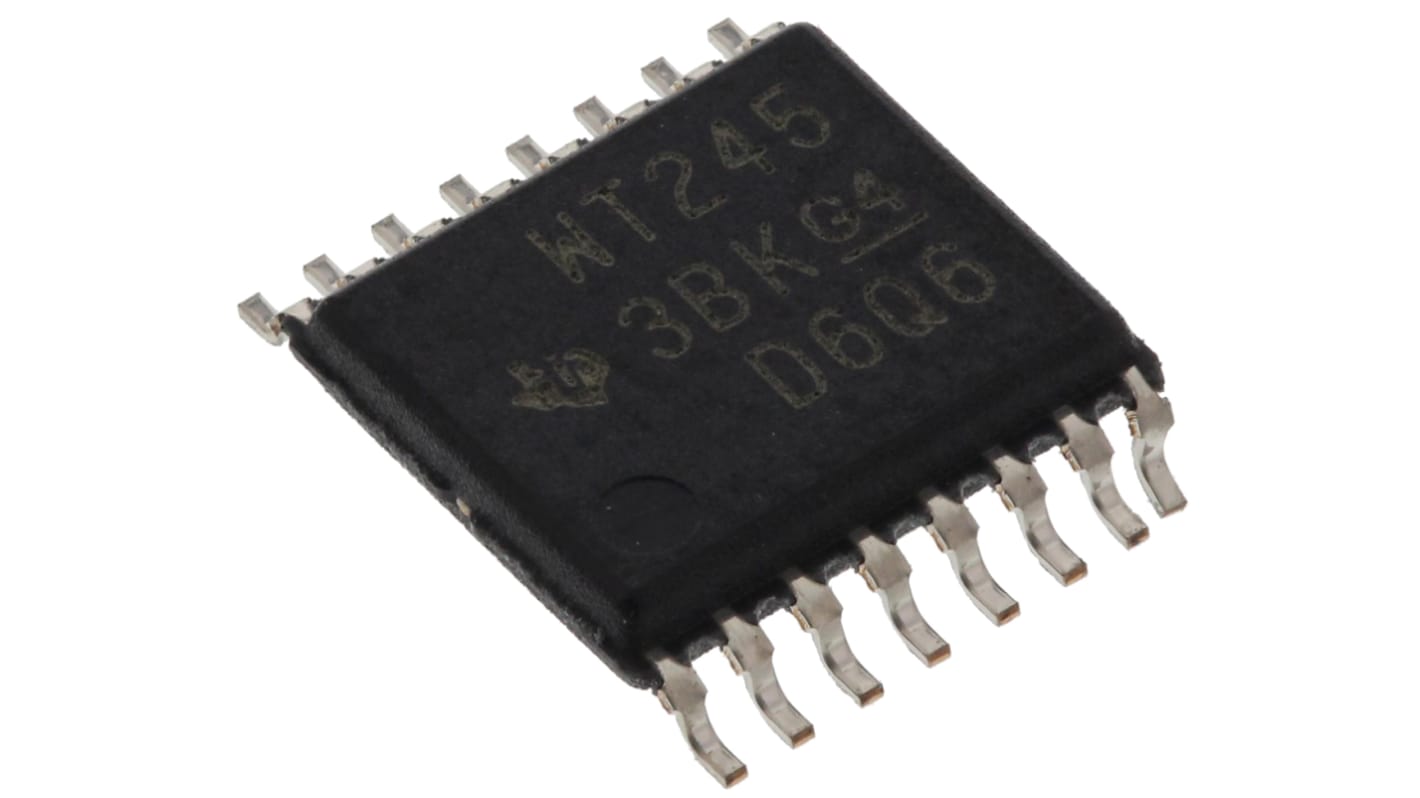

Texas Instruments SN74AVC4T245PW, Dual Bus Transceiver, 4-Bit Non-Inverting CMOS, 16-Pin TSSOP

RS Stock No.:: 922-2928
Mfr. Part No.:: SN74AVC4T245PW
Manufacturer:: Texas Instruments

Texas Instruments SN74AVC4T245PW, Dual Bus Transceiver, 4-Bit Non-Inverting CMOS, 16-Pin TSSOP

Bulk discount available

Subtotal (1 tube of 90 units)*

MYR409.14

FREE delivery for orders over RM 500.00

In Stock

540 unit(s) ready to ship from another location
Plus 900 unit(s) shipping from 18 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit	Per Tube*
90 - 90	MYR4.546	MYR409.14
180 - 270	MYR4.476	MYR402.84
360 +	MYR4.388	MYR394.92

*price indicative

RS Stock No.:: 922-2928
Mfr. Part No.:: SN74AVC4T245PW
Manufacturer:: Texas Instruments

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Family	AVC
	Logic Function	Bus Transceiver
	Number of Elements per Chip	2
	Number of Channels per Chip	4
	Polarity	Non-Inverting
	Mounting Type	Surface Mount
	Package Type	TSSOP
	Pin Count	16
	Input Level	CMOS
	Output Level	CMOS
	Maximum High Level Output Current	-12mA
	Maximum Low Level Output Current	12mA
	Maximum Propagation Delay Time @ Maximum CL	6.3 ns @ 1.5 V
	Minimum Operating Temperature	-40 °C
	Height	1.15mm
	Dimensions	5 x 4.4 x 1.15mm
	Width	4.4mm
	Minimum Operating Supply Voltage	1.2 V
	Length	5mm
	Maximum Operating Temperature	+85 °C
	Propagation Delay Test Condition	15pF
	Maximum Operating Supply Voltage	3.6 V

	Select all
	Brand Texas Instruments
	Logic Family AVC
	Logic Function Bus Transceiver
	Number of Elements per Chip 2
	Number of Channels per Chip 4
	Polarity Non-Inverting
	Mounting Type Surface Mount
	Package Type TSSOP
	Pin Count 16
	Input Level CMOS
	Output Level CMOS
	Maximum High Level Output Current -12mA
	Maximum Low Level Output Current 12mA
	Maximum Propagation Delay Time @ Maximum CL 6.3 ns @ 1.5 V
	Minimum Operating Temperature -40 °C
	Height 1.15mm
	Dimensions 5 x 4.4 x 1.15mm
	Width 4.4mm
	Minimum Operating Supply Voltage 1.2 V
	Length 5mm
	Maximum Operating Temperature +85 °C
	Propagation Delay Test Condition 15pF
	Maximum Operating Supply Voltage 3.6 V

ESD Control Selection Guide V1

74AVC Family, Texas Instruments

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

74AVC Family
