Units	Per Unit	Per Pack**
5 - 5	MYR8.038	MYR40.19
10 - 10	MYR7.868	MYR39.34
15 +	MYR7.634	MYR38.17

Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Family	LVC
	Logic Function	Bus Transceiver
	Number of Elements per Chip	1
	Number of Channels per Chip	8
	Polarity	Non-Inverting
	Mounting Type	Surface Mount
	Package Type	SOIC
	Pin Count	24
	Input Level	LVTTL
	Output Level	LVTTL
	Maximum High Level Output Current	-24mA
	Maximum Low Level Output Current	24mA
	Maximum Propagation Delay Time @ Maximum CL	11.2 ns@ 3.3 V
	Minimum Operating Supply Voltage	2.3 V, 3 V
	Minimum Operating Temperature	-40 °C
	Width	7.52mm
	Length	15.4mm
	Dimensions	15.4 x 7.52 x 2.35mm
	Propagation Delay Test Condition	50pF
	Maximum Operating Supply Voltage	3.6 V, 5.5 V
	Height	2.35mm
	Maximum Operating Temperature	+85 °C

	Select all
	Brand Texas Instruments
	Logic Family LVC
	Logic Function Bus Transceiver
	Number of Elements per Chip 1
	Number of Channels per Chip 8
	Polarity Non-Inverting
	Mounting Type Surface Mount
	Package Type SOIC
	Pin Count 24
	Input Level LVTTL
	Output Level LVTTL
	Maximum High Level Output Current -24mA
	Maximum Low Level Output Current 24mA
	Maximum Propagation Delay Time @ Maximum CL 11.2 ns@ 3.3 V
	Minimum Operating Supply Voltage 2.3 V, 3 V
	Minimum Operating Temperature -40 °C
	Width 7.52mm
	Length 15.4mm
	Dimensions 15.4 x 7.52 x 2.35mm
	Propagation Delay Test Condition 50pF
	Maximum Operating Supply Voltage 3.6 V, 5.5 V
	Height 2.35mm
	Maximum Operating Temperature +85 °C

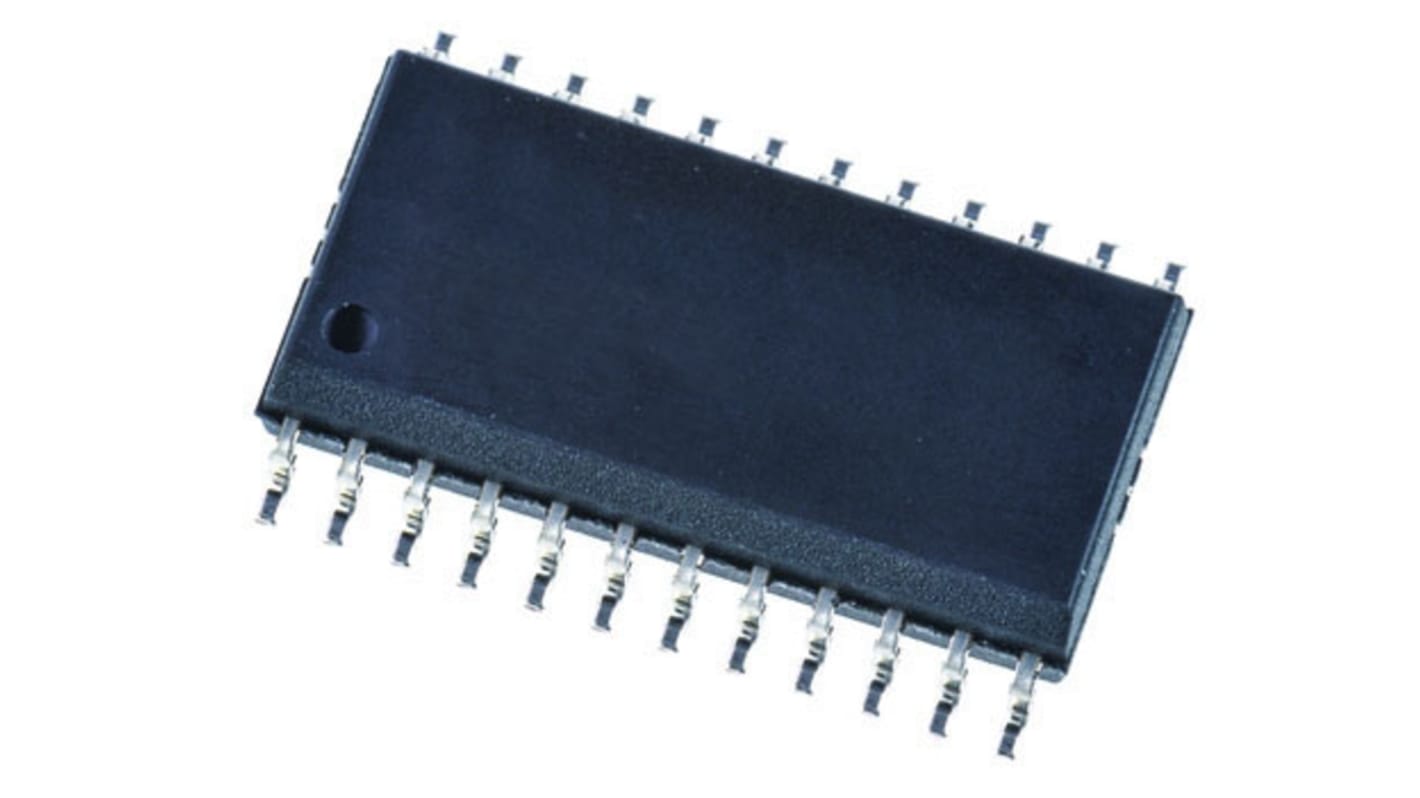

Texas Instruments SN74LVCC3245ADW, 1 Bus Transceiver, 8-Bit Non-Inverting LVTTL, 24-Pin SOIC

FREE delivery for orders over MYR500.00

74LVC Family Bus Transceivers, Texas Instruments

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
