Texas Instruments SN74ABT245BDBR, 1 Bus Transceiver, 8-Bit Non-Inverting TTL, 20-Pin SSOP

RS Stock No.:: 162-7031
Mfr. Part No.:: SN74ABT245BDBR
Manufacturer:: Texas Instruments

Texas Instruments SN74ABT245BDBR, 1 Bus Transceiver, 8-Bit Non-Inverting TTL, 20-Pin SSOP

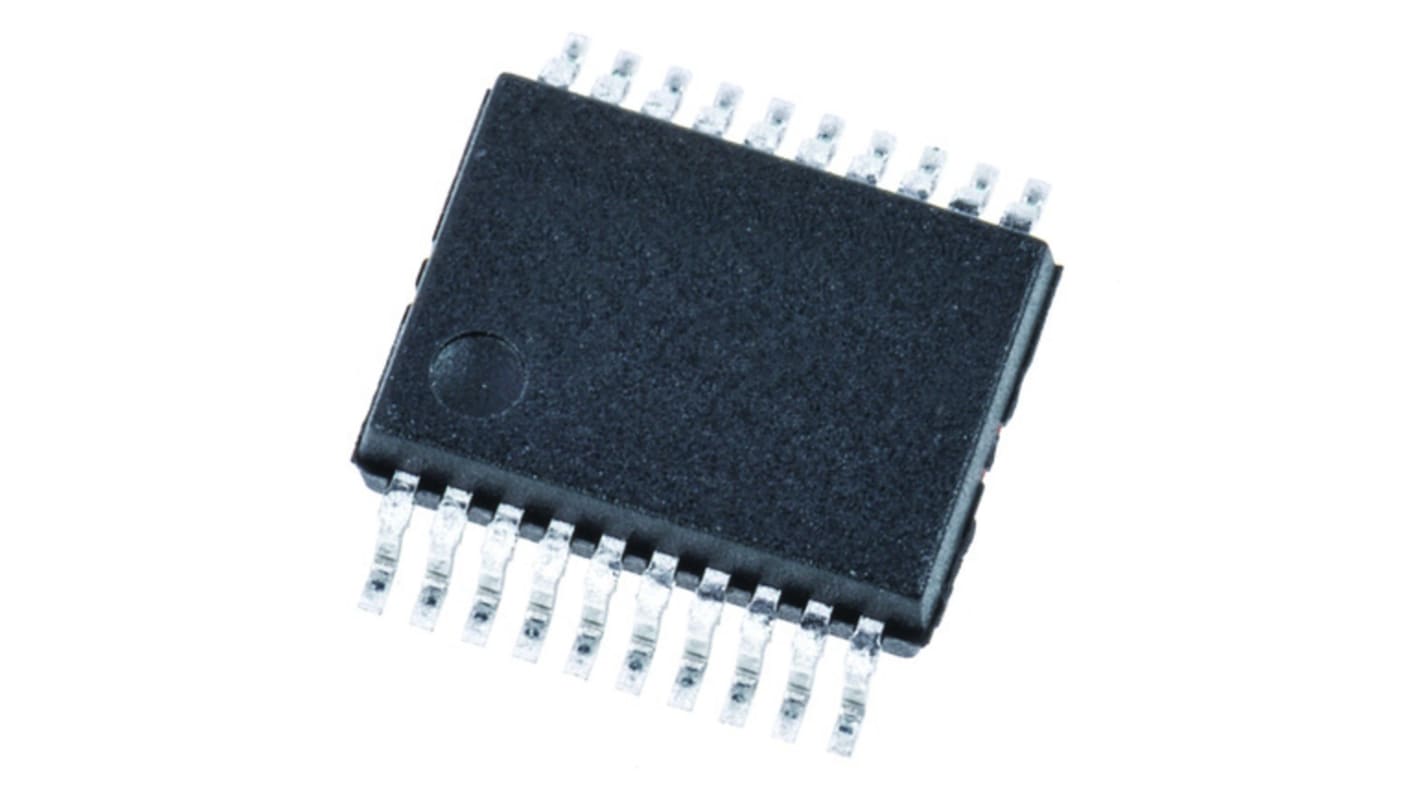

This image is representative of the product range

Price Each (On a Reel of 2000)**

MYR1.827

Available for back order.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit	Per Reel**
2000 +	MYR1.827	MYR3,654.00

**price indicative

RS Stock No.:: 162-7031
Mfr. Part No.:: SN74ABT245BDBR
Manufacturer:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Logic Family	ABT
Logic Function	Bus Transceiver
Number of Elements per Chip	1
Number of Channels per Chip	8
Polarity	Non-Inverting
Mounting Type	Surface Mount
Package Type	SSOP
Pin Count	20
Input Level	TTL
Output Level	TTL
Maximum High Level Output Current	-32mA
Maximum Low Level Output Current	64mA
Maximum Propagation Delay Time @ Maximum CL	3.5 ns @ 5 V
Maximum Operating Temperature	+85 °C
Propagation Delay Test Condition	50pF
Length	7.2mm
Maximum Operating Supply Voltage	5.5 V
Minimum Operating Temperature	-40 °C
Dimensions	7.2 x 5.3 x 1.95mm
Minimum Operating Supply Voltage	4.5 V
Height	1.95mm
Width	5.3mm

Texas Instruments SN74ABT245BDBR, 1 Bus Transceiver, 8-Bit Non-Inverting TTL, 20-Pin SSOP

FREE delivery for orders over MYR700.00

74ABT Family, Texas Instruments
