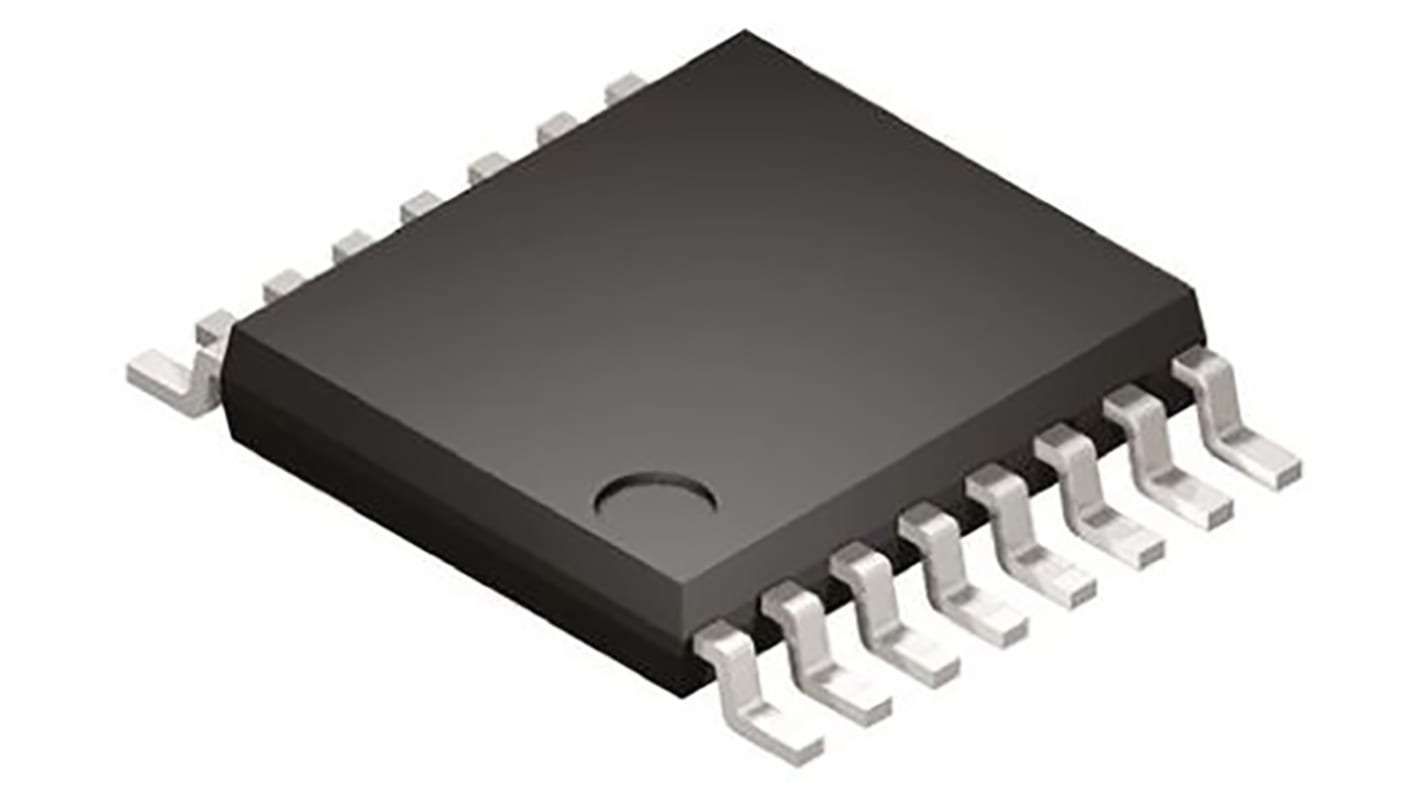

Toshiba TC74HC4050AFT(EL), 6-Channel Non-Inverting CMOS Buffer & Converter Combination Circuit, 16-Pin TSSOP
- RS Stock No.:
- 756-2934
- Mfr. Part No.:
- TC74HC4050AFT(EL)
- Manufacturer:
- Toshiba
Bulk discount available
Subtotal (1 pack of 5 units)*
MYR9.41
FREE delivery for orders over RM 500.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 135 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 5 - 45 | MYR1.882 | MYR9.41 |
| 50 - 245 | MYR1.842 | MYR9.21 |
| 250 - 495 | MYR1.786 | MYR8.93 |
| 500 + | MYR1.744 | MYR8.72 |
*price indicative
- RS Stock No.:
- 756-2934
- Mfr. Part No.:
- TC74HC4050AFT(EL)
- Manufacturer:
- Toshiba
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Logic Family | 74HC | |
| Product Type | Buffer & Converter Combination Circuit | |
| Logic Function | Converter, Buffer | |
| Number of Channels | 6 | |
| Schmitt Trigger Input | No | |
| Input Type | CMOS | |
| Output Type | CMOS | |
| Mount Type | Surface | |
| Polarity | Non-Inverting | |
| Minimum Supply Voltage | 2V | |
| Package Type | TSSOP | |
| Pin Count | 16 | |
| Maximum Supply Voltage | 6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum High Level Output Current | 35mA | |
| Maximum Propagation Delay Time @ CL | 100ns | |
| Maximum Operating Temperature | 85°C | |
| Maximum Low Level Output Current | -35mA | |
| Standards/Approvals | No | |
| Length | 5.4mm | |
| Height | 1mm | |
| Width | 4.4 mm | |
| Series | TC74HC40 | |
| Supply Current | 1μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Logic Family 74HC | ||
Product Type Buffer & Converter Combination Circuit | ||
Logic Function Converter, Buffer | ||
Number of Channels 6 | ||
Schmitt Trigger Input No | ||
Input Type CMOS | ||
Output Type CMOS | ||
Mount Type Surface | ||
Polarity Non-Inverting | ||
Minimum Supply Voltage 2V | ||
Package Type TSSOP | ||
Pin Count 16 | ||
Maximum Supply Voltage 6V | ||
Minimum Operating Temperature -40°C | ||
Maximum High Level Output Current 35mA | ||
Maximum Propagation Delay Time @ CL 100ns | ||
Maximum Operating Temperature 85°C | ||
Maximum Low Level Output Current -35mA | ||
Standards/Approvals No | ||
Length 5.4mm | ||
Height 1mm | ||
Width 4.4 mm | ||
Series TC74HC40 | ||
Supply Current 1μA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- JP
TC74HC Series, Toshiba
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
