Select all	Attribute	Value
	Brand	Texas Instruments
	Maximum Output Current	300mA
	Maximum Output Voltage	3.3 V
	Regulator Function	Step Down
	Minimum Output Voltage	1.8 V
	Minimum Input Voltage	3.3 V
	Maximum Input Voltage	10 V
	Output Type	Adjustable
	Mounting Type	Surface Mount
	Number of Outputs	1
	Maximum Switching Frequency	2500 kHz
	Pin Count	12
	Package Type	WSON
	Switching Regulator	Yes
	Line Regulation	0.015 %/V
	Load Regulation	0.005 %/mA
	Height	0.75mm
	Width	2.1mm
	Dimensions	3.1 x 2.1 x 0.75mm
	Minimum Operating Temperature	-40 °C
	Maximum Operating Temperature	+125 °C
	Length	3.1mm

	Select all
	Brand Texas Instruments
	Maximum Output Current 300mA
	Maximum Output Voltage 3.3 V
	Regulator Function Step Down
	Minimum Output Voltage 1.8 V
	Minimum Input Voltage 3.3 V
	Maximum Input Voltage 10 V
	Output Type Adjustable
	Mounting Type Surface Mount
	Number of Outputs 1
	Maximum Switching Frequency 2500 kHz
	Pin Count 12
	Package Type WSON
	Switching Regulator Yes
	Line Regulation 0.015 %/V
	Load Regulation 0.005 %/mA
	Height 0.75mm
	Width 2.1mm
	Dimensions 3.1 x 2.1 x 0.75mm
	Minimum Operating Temperature -40 °C
	Maximum Operating Temperature +125 °C
	Length 3.1mm

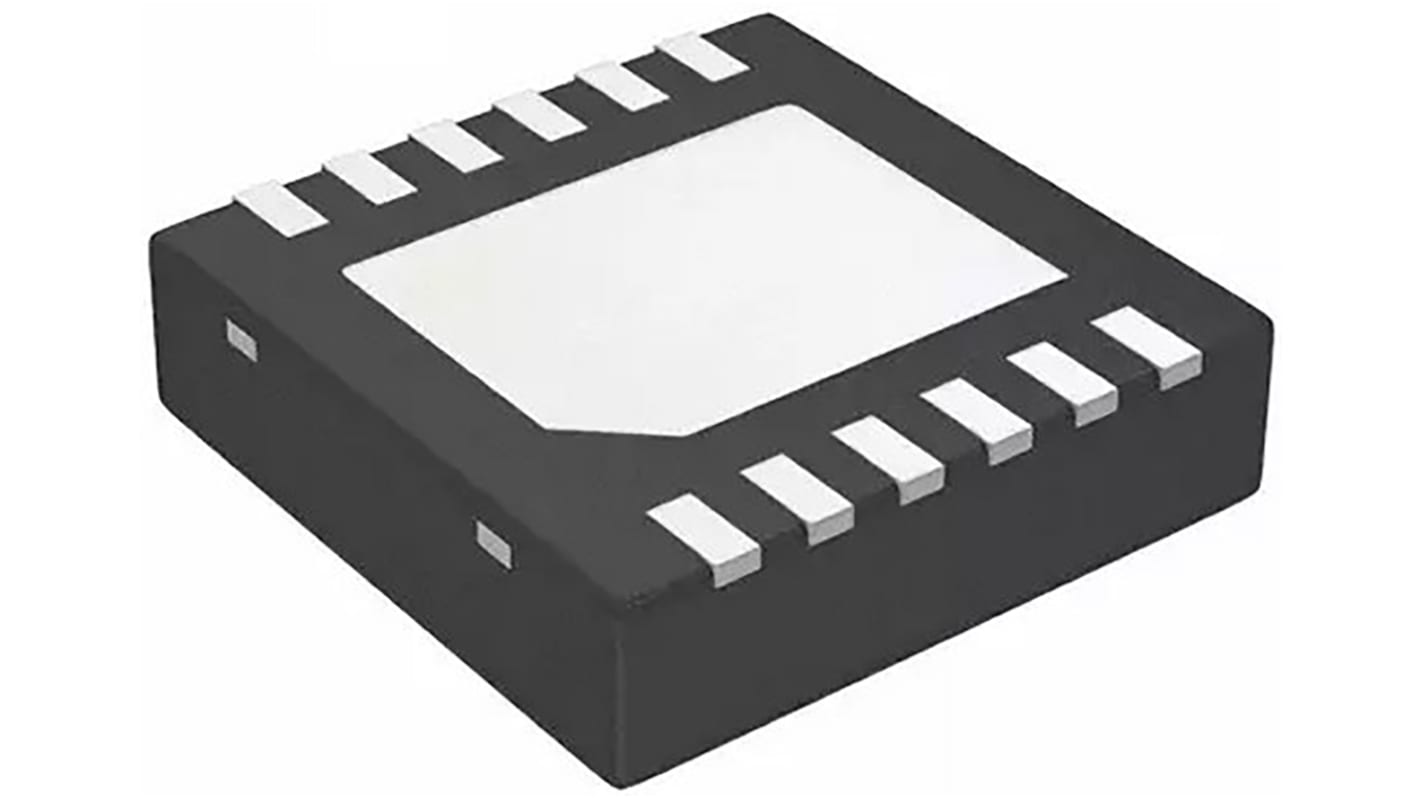

Texas Instruments, TPS62745DSST Step-Down Switching Regulator, 1-Channel 300mA Adjustable 12-Pin, WSON

FREE delivery for orders over MYR500.00

DC/DC Converters (Integrated Switch) for RF Amplifiers

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
