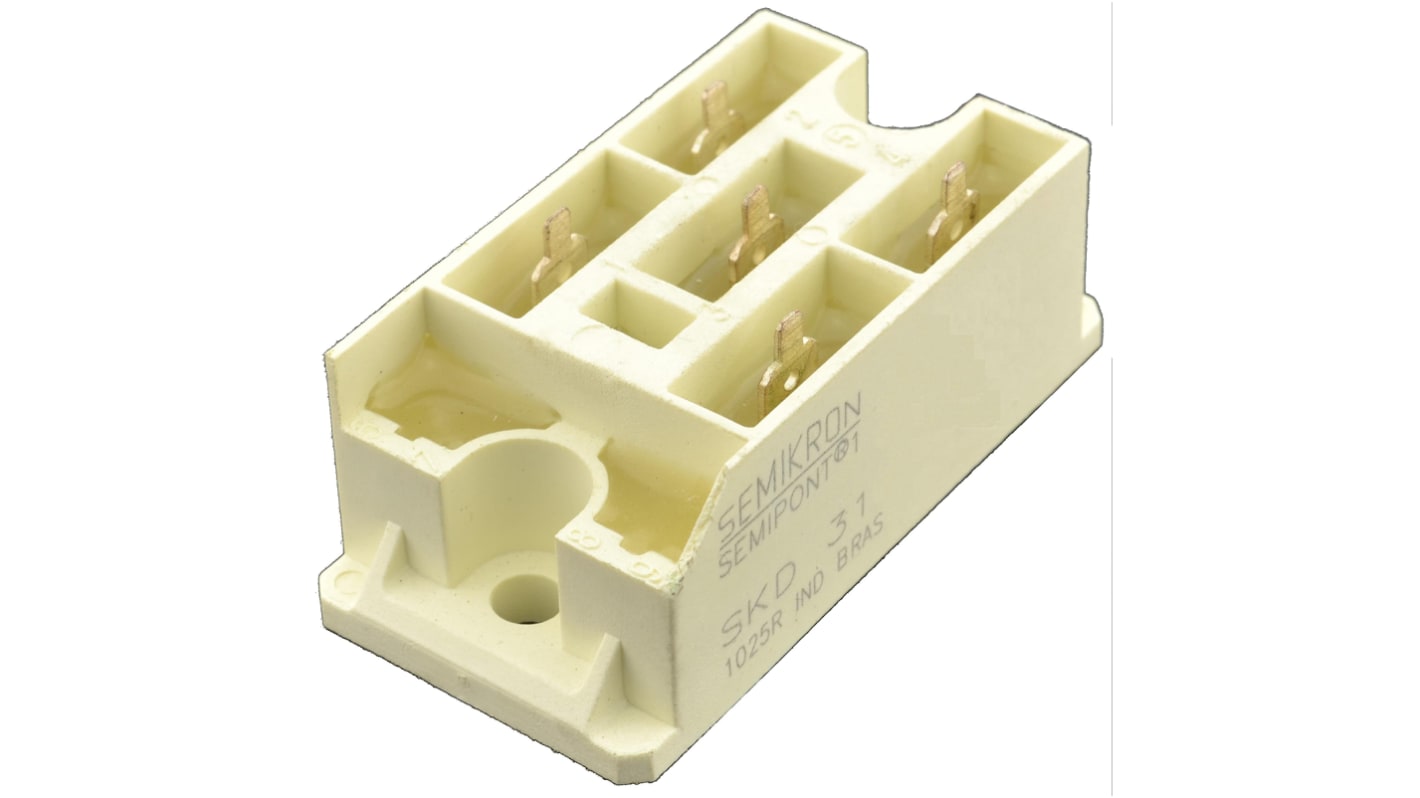

Semikron Bridge Rectifier Module, 800V, 3-phase, 7-Pin

RS Stock No.:: 905-6018
Mfr. Part No.:: SKD 31/08
Manufacturer:: Semikron

Semikron Bridge Rectifier Module, 800V, 3-phase, 7-Pin

Available for back order.

Price Each

MYR115.12

Units	Per Unit
1 - 9	MYR115.12
10 - 49	MYR112.70
50 - 99	MYR109.23
100 - 249	MYR106.58
250 +	MYR104.28

Alternatives

This product is not currently available. Here are our alternative recommendations.

Semikron Bridge Rectifier Module, 1600V, 3-phase, 5-Pin

RS Stock No.: 905-6068

Price Each

MYR352.89

Semikron Bridge Rectifier Module, 75A, 1600V, 3-phase, 5-Pin

RS Stock No.: 905-6150

Price Each

MYR1,137.28

RS Stock No.:: 905-6018
Mfr. Part No.:: SKD 31/08
Manufacturer:: Semikron

SKD 31, SEMIPONT 1 Power Bridge Rectifiers
ESD Control Selection Guide V1

Attribute	Value
Bridge Type	Three Phase
Peak Reverse Repetitive Voltage	800V
Mounting Type	Panel Mount
Package Type	A 46
Pin Count	7
Configuration	Single
Peak Non-Repetitive Forward Surge Current	1.5kA
Maximum Operating Temperature	+125 °C
Minimum Operating Temperature	-40 °C
Peak Reverse Current	15mA
Length	93mm
Dimensions	93 x 20 x 30mm
Height	30mm
Width	20mm

Semikron Bridge Rectifier Module, 800V, 3-phase, 7-Pin

Alternatives

Three Phase Bridge Rectifiers, SEMIPONT®1 Series
