Vishay Bridge Rectifier, 800 V 500 A, 5-Pin Single
- RS Stock No.:
- 227-8867
- Distrelec Article No.:
- 170-36-387
- Mfr. Part No.:
- VS-36MT80
- Manufacturer:
- Vishay

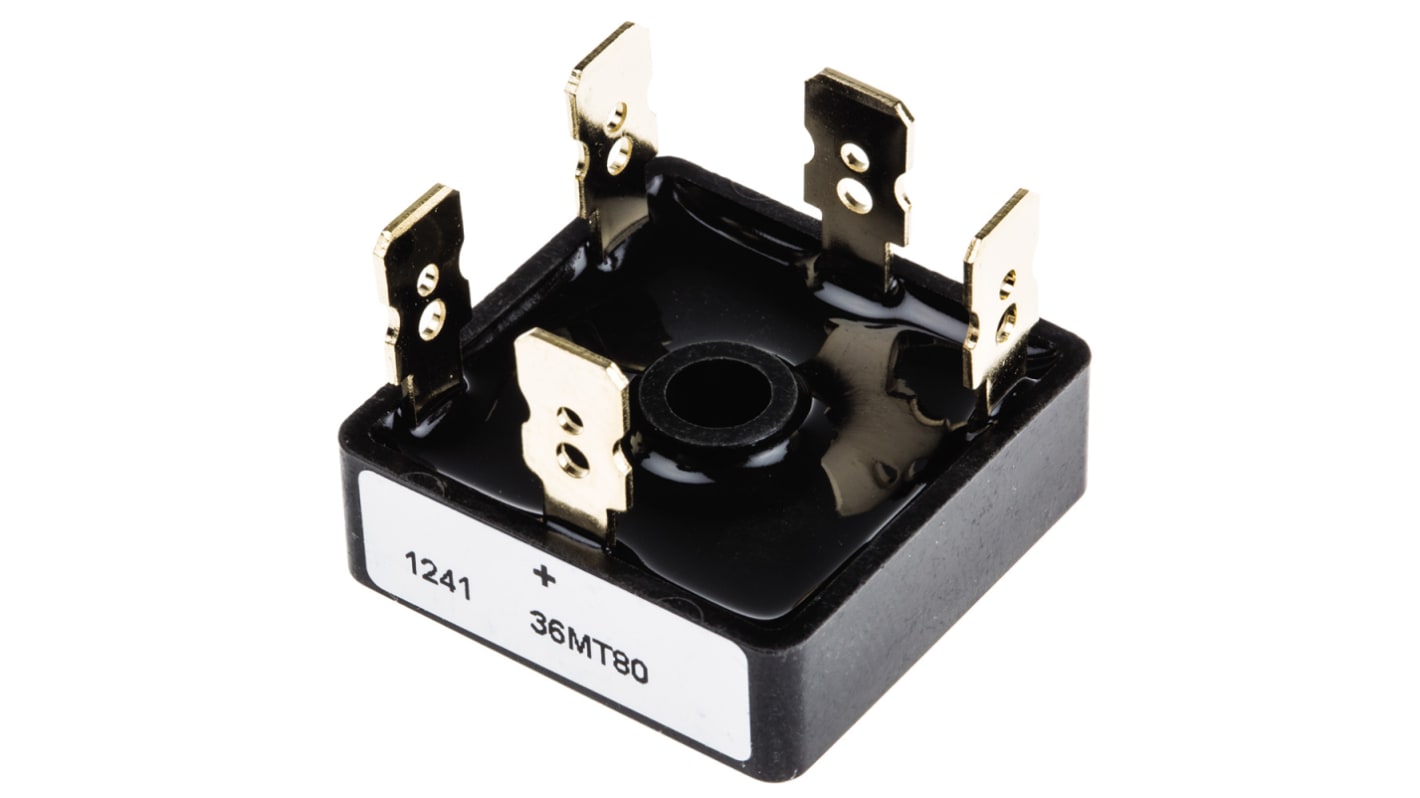

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
MYR68.62
FREE delivery for orders over RM 500.00
In Stock
- Plus 25 unit(s) shipping from 09 March 2026
- Plus 32 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR68.62 |
| 5 - 9 | MYR68.58 |
| 10 + | MYR64.21 |
*price indicative
- RS Stock No.:
- 227-8867
- Distrelec Article No.:
- 170-36-387
- Mfr. Part No.:
- VS-36MT80
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Bridge Rectifier | |
| Peak Reverse Repetitive Voltage Vrrm | 800V | |
| Mount Type | Through Hole | |
| Package Type | D-63 | |
| Number of Phases | 3 | |
| Pin Count | 5 | |
| Configuration | Single | |
| Maximum Operating Temperature | 150°C | |
| Forward Current If | 35A | |
| Minimum Operating Temperature | -55°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A | |
| Peak Forward Voltage Vf | 1.19V | |
| Height | 10mm | |
| Peak Reverse Current Ir | 200μA | |
| Width | 28.5 mm | |
| Length | 28.5mm | |
| Series | VS-36MT | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Bridge Rectifier | ||
Peak Reverse Repetitive Voltage Vrrm 800V | ||
Mount Type Through Hole | ||
Package Type D-63 | ||
Number of Phases 3 | ||
Pin Count 5 | ||
Configuration Single | ||
Maximum Operating Temperature 150°C | ||
Forward Current If 35A | ||
Minimum Operating Temperature -55°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 500A | ||
Peak Forward Voltage Vf 1.19V | ||
Height 10mm | ||
Peak Reverse Current Ir 200μA | ||
Width 28.5 mm | ||
Length 28.5mm | ||
Series VS-36MT | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Vishay single phase bridge is extremely compact, encapsulated single phase bridge rectifiers offering efficient and reliable operation. They are intended for use in general purpose and instrumentation applications.
Centre hole fixing
Excellent power/volume ratio
Temperature range - 55 to 150°C
