Select all	Attribute	Value
	Brand	Taiwan Semiconductor
	Peak Average Forward Current	15A
	Bridge Type	Single Phase
	Peak Reverse Repetitive Voltage	1000V
	Mounting Type	Screw Mount
	Package Type	GBPC
	Pin Count	4
	Diode Technology	Silicon Junction
	Configuration	Single
	Peak Non-Repetitive Forward Surge Current	300A
	Maximum Operating Temperature	+150 °C
	Minimum Operating Temperature	-50 °C
	Peak Forward Voltage	1.1V
	Peak Reverse Current	5µA
	Length	29mm
	Dimensions	29 x 29 x 11.23mm
	Width	29mm
	Height	11.23mm

	Select all
	Brand Taiwan Semiconductor
	Peak Average Forward Current 15A
	Bridge Type Single Phase
	Peak Reverse Repetitive Voltage 1000V
	Mounting Type Screw Mount
	Package Type GBPC
	Pin Count 4
	Diode Technology Silicon Junction
	Configuration Single
	Peak Non-Repetitive Forward Surge Current 300A
	Maximum Operating Temperature +150 °C
	Minimum Operating Temperature -50 °C
	Peak Forward Voltage 1.1V
	Peak Reverse Current 5µA
	Length 29mm
	Dimensions 29 x 29 x 11.23mm
	Width 29mm
	Height 11.23mm

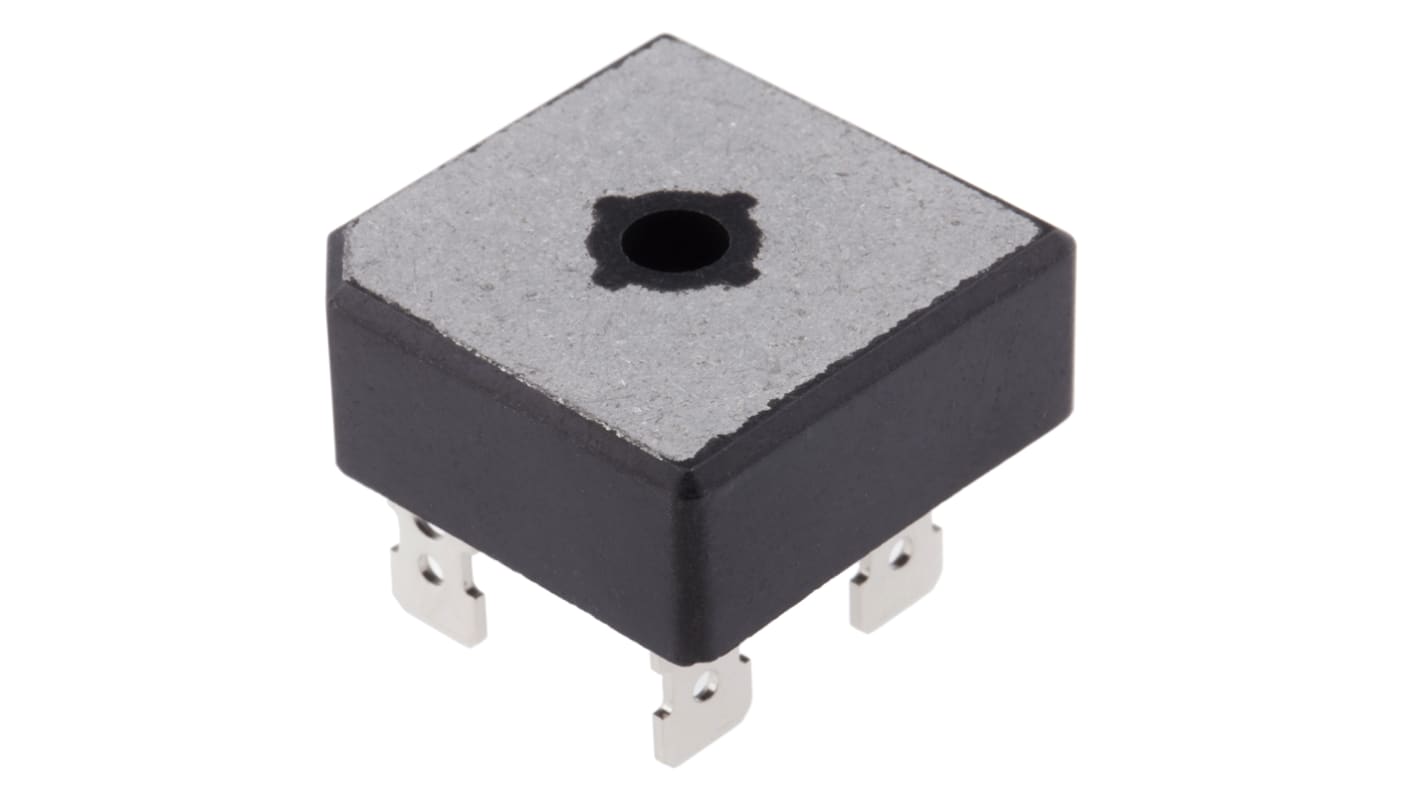

Taiwan Semiconductor Bridge Rectifier, 15A, 1000V, 4-Pin

Bridge Rectifiers with Push-on Terminals, GBPC 15 Series, Taiwan Semiconductor

Approvals

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
