Select all	Attribute	Value
	Brand	Taiwan Semiconductor
	Peak Average Forward Current	2A
	Bridge Type	Single Phase
	Peak Reverse Repetitive Voltage	600V
	Mounting Type	Surface Mount
	Package Type	DBLS
	Pin Count	4
	Diode Technology	Silicon Junction
	Configuration	Single
	Peak Non-Repetitive Forward Surge Current	50A
	Maximum Operating Temperature	+150 °C
	Minimum Operating Temperature	-55 °C
	Peak Forward Voltage	1.15V
	Peak Reverse Current	10µA
	Dimensions	8.51 x 6.5 x 2.6mm
	Length	8.51mm
	Width	6.5mm
	Height	2.6mm

	Select all
	Brand Taiwan Semiconductor
	Peak Average Forward Current 2A
	Bridge Type Single Phase
	Peak Reverse Repetitive Voltage 600V
	Mounting Type Surface Mount
	Package Type DBLS
	Pin Count 4
	Diode Technology Silicon Junction
	Configuration Single
	Peak Non-Repetitive Forward Surge Current 50A
	Maximum Operating Temperature +150 °C
	Minimum Operating Temperature -55 °C
	Peak Forward Voltage 1.15V
	Peak Reverse Current 10µA
	Dimensions 8.51 x 6.5 x 2.6mm
	Length 8.51mm
	Width 6.5mm
	Height 2.6mm

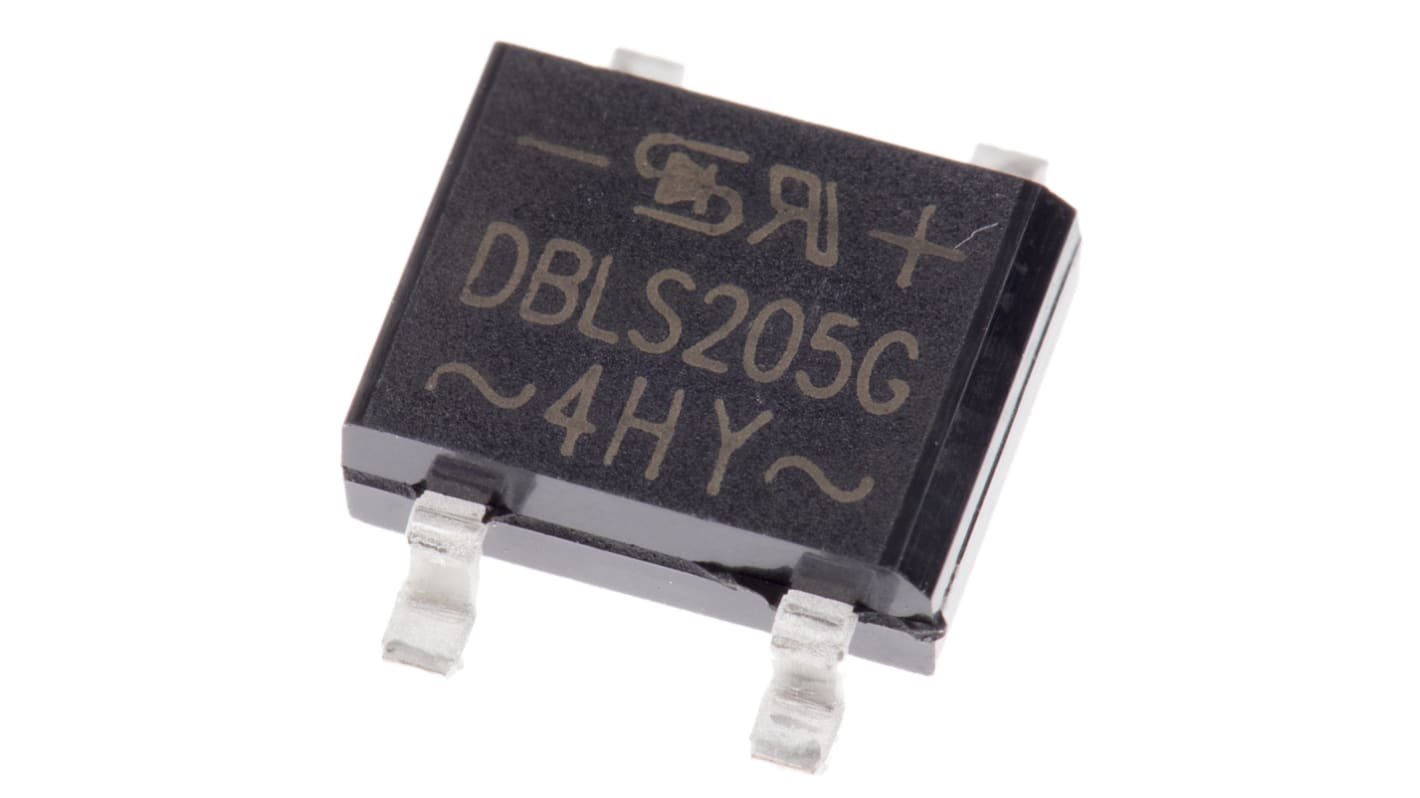

Taiwan Semiconductor Bridge Rectifier, 2A, 600V, 4-Pin

FREE delivery for orders over MYR500.00

Bridge Rectifiers for PCB Surface Mount, DBLS Series, Taiwan Semiconductor
