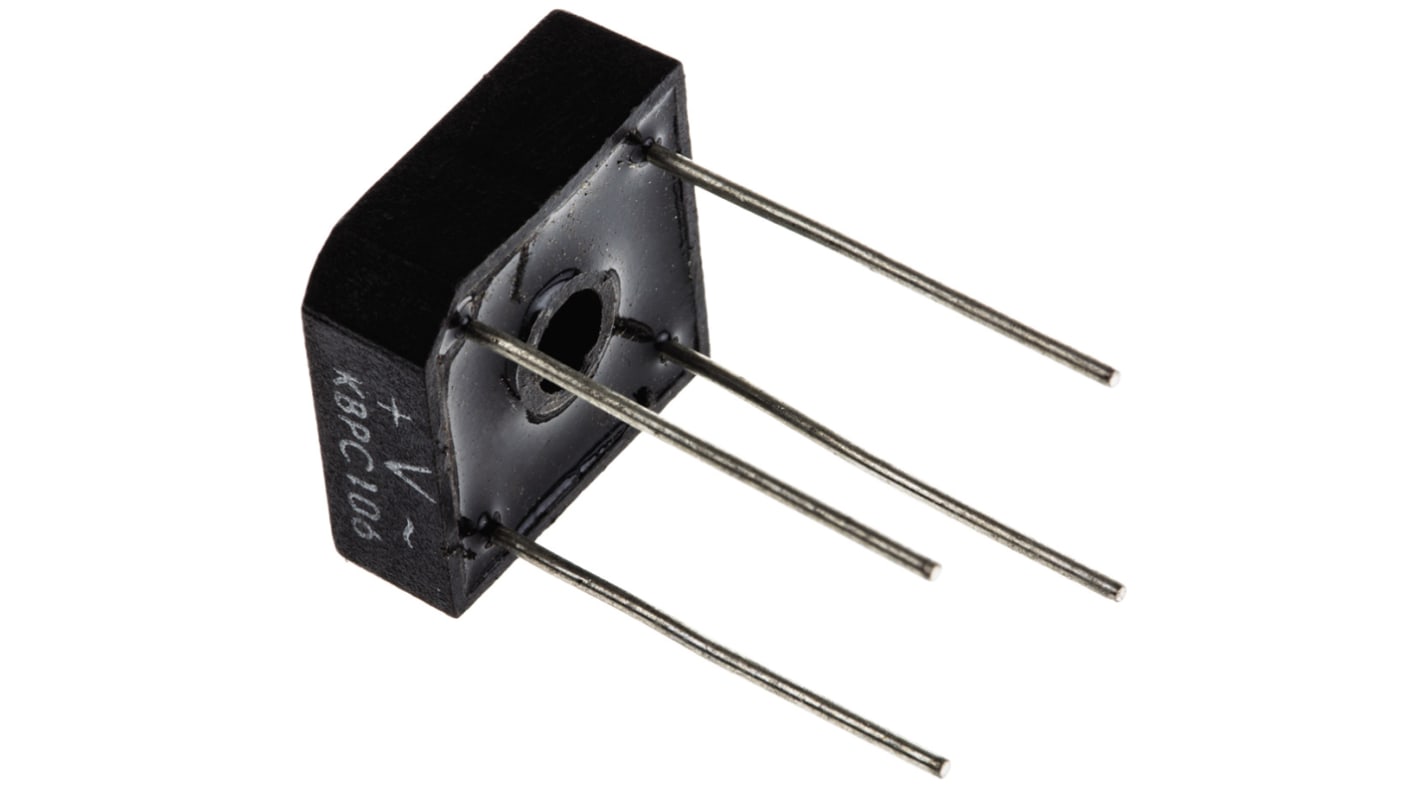

Vishay Bridge Rectifier, 3A, 600V, 4-Pin
- RS Stock No.:
- 169-5953
- Mfr. Part No.:
- VS-KBPC106
- Manufacturer:
- Vishay
Subtotal (1 box of 250 units)**
MYR1,258.75
500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Box** |
|---|---|---|
| 250 + | MYR5.035 | MYR1,258.75 |
**price indicative
- RS Stock No.:
- 169-5953
- Mfr. Part No.:
- VS-KBPC106
- Manufacturer:
- Vishay
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Bridge Type | Single Phase | |
| Peak Average Forward Current | 3A | |
| Peak Reverse Repetitive Voltage | 600V | |
| Mounting Type | Through Hole | |
| Package Type | D 46 | |
| Pin Count | 4 | |
| Diode Technology | Silicon Junction | |
| Configuration | Single | |
| Peak Non-Repetitive Forward Surge Current | 55A | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -40 °C | |
| Peak Forward Voltage | 1.1V | |
| Peak Reverse Current | 10µA | |
| Length | 16.7mm | |
| Dimensions | 16.7 x 16.7 x 6.35mm | |
| Height | 6.35mm | |
| Width | 16.7mm | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Bridge Type Single Phase | ||
Peak Average Forward Current 3A | ||
Peak Reverse Repetitive Voltage 600V | ||
Mounting Type Through Hole | ||
Package Type D 46 | ||
Pin Count 4 | ||
Diode Technology Silicon Junction | ||
Configuration Single | ||
Peak Non-Repetitive Forward Surge Current 55A | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Temperature -40 °C | ||
Peak Forward Voltage 1.1V | ||
Peak Reverse Current 10µA | ||
Length 16.7mm | ||
Dimensions 16.7 x 16.7 x 6.35mm | ||
Height 6.35mm | ||
Width 16.7mm | ||
