Select all	Attribute	Value
	Brand	Vishay
	Bridge Type	Single Phase
	Peak Average Forward Current	4A
	Peak Reverse Repetitive Voltage	1000V
	Mounting Type	Through Hole
	Package Type	KBU
	Pin Count	4
	Diode Technology	Silicon Junction
	Configuration	Single
	Peak Non-Repetitive Forward Surge Current	200A
	Maximum Operating Temperature	+150 °C
	Minimum Operating Temperature	-50 °C
	Peak Forward Voltage	1V
	Peak Reverse Current	5µA
	Dimensions	23.7 x 7.1 x 19.3mm
	Length	23.7mm
	Width	7.1mm
	Height	19.3mm

	Select all
	Brand Vishay
	Bridge Type Single Phase
	Peak Average Forward Current 4A
	Peak Reverse Repetitive Voltage 1000V
	Mounting Type Through Hole
	Package Type KBU
	Pin Count 4
	Diode Technology Silicon Junction
	Configuration Single
	Peak Non-Repetitive Forward Surge Current 200A
	Maximum Operating Temperature +150 °C
	Minimum Operating Temperature -50 °C
	Peak Forward Voltage 1V
	Peak Reverse Current 5µA
	Dimensions 23.7 x 7.1 x 19.3mm
	Length 23.7mm
	Width 7.1mm
	Height 19.3mm

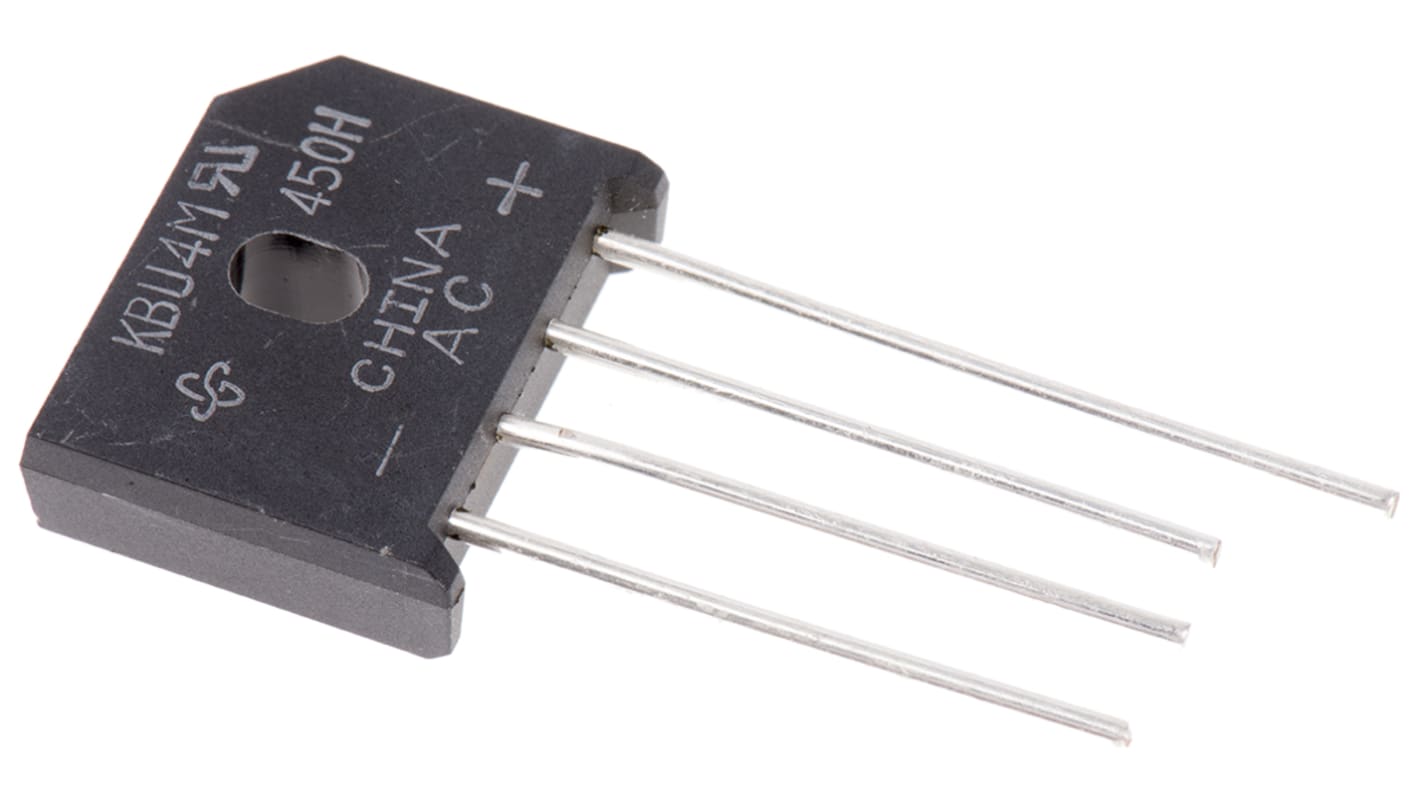

Vishay Bridge Rectifier, 4A, 1000V, 4-Pin

FREE delivery for orders over MYR500.00

SIL PCB Mounting, KBU Series, Vishay Semiconductor
