Units	Per Unit	Per Box**
400 - 400	MYR4.283	MYR1,713.20
800 +	MYR4.155	MYR1,662.00

Select all	Attribute	Value
	Brand	HY Electronic Corp
	Peak Average Forward Current	15A
	Bridge Type	Single Phase
	Peak Reverse Repetitive Voltage	600V
	Mounting Type	Through Hole
	Package Type	KBU
	Pin Count	4
	Diode Technology	Silicon Junction
	Diode Type	Silicon Junction
	Configuration	Single
	Peak Non-Repetitive Forward Surge Current	250A
	Maximum Operating Temperature	+150 °C
	Minimum Operating Temperature	-55 °C
	Peak Forward Voltage	1.1V
	Peak Reverse Current	500µA
	Dimensions	23.7 x 7 x 19.8mm
	Length	23.7mm
	Height	19.8mm
	Width	7mm

	Select all
	Brand HY Electronic Corp
	Peak Average Forward Current 15A
	Bridge Type Single Phase
	Peak Reverse Repetitive Voltage 600V
	Mounting Type Through Hole
	Package Type KBU
	Pin Count 4
	Diode Technology Silicon Junction
	Diode Type Silicon Junction
	Configuration Single
	Peak Non-Repetitive Forward Surge Current 250A
	Maximum Operating Temperature +150 °C
	Minimum Operating Temperature -55 °C
	Peak Forward Voltage 1.1V
	Peak Reverse Current 500µA
	Dimensions 23.7 x 7 x 19.8mm
	Length 23.7mm
	Height 19.8mm
	Width 7mm

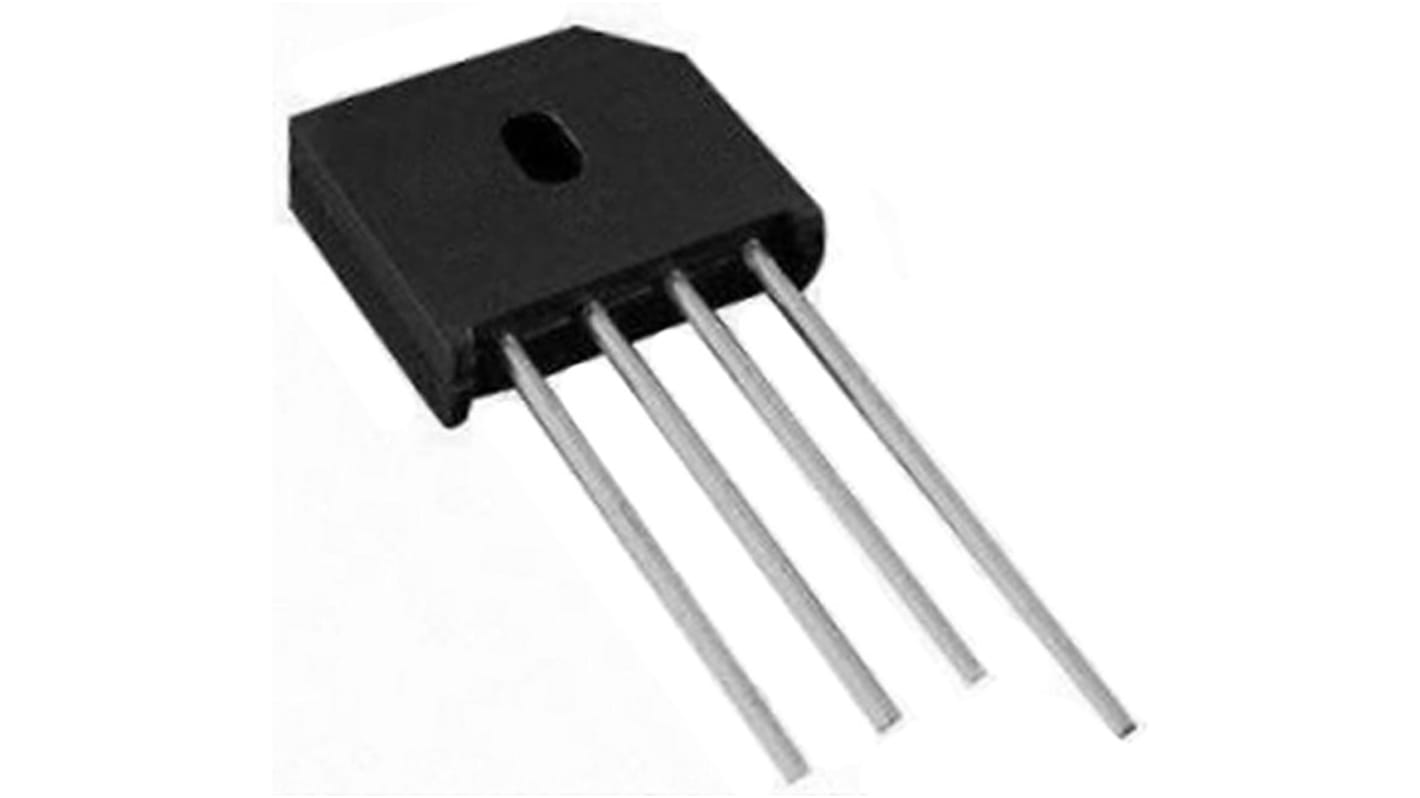

HY Electronic Corp Bridge Rectifier, 15A, 600V, 4-Pin

FREE delivery for orders over MYR500.00

Bridge Rectifier - KBU Series
