Select all	Attribute	Value
	Brand	DiodesZetex
	Peak Average Forward Current	4A
	Bridge Type	Single Phase
	Peak Reverse Repetitive Voltage	100V
	Mounting Type	Through Hole
	Package Type	GBU
	Pin Count	4
	Diode Technology	Silicon Junction
	Configuration	Single
	Peak Non-Repetitive Forward Surge Current	150A
	Maximum Operating Temperature	+150 °C
	Minimum Operating Temperature	-55 °C
	Peak Forward Voltage	1V
	Peak Reverse Current	50µA
	Dimensions	22.3 x 3.56 x 18.8mm
	Length	22.3mm
	Height	18.8mm
	Width	3.56mm

	Select all
	Brand DiodesZetex
	Peak Average Forward Current 4A
	Bridge Type Single Phase
	Peak Reverse Repetitive Voltage 100V
	Mounting Type Through Hole
	Package Type GBU
	Pin Count 4
	Diode Technology Silicon Junction
	Configuration Single
	Peak Non-Repetitive Forward Surge Current 150A
	Maximum Operating Temperature +150 °C
	Minimum Operating Temperature -55 °C
	Peak Forward Voltage 1V
	Peak Reverse Current 50µA
	Dimensions 22.3 x 3.56 x 18.8mm
	Length 22.3mm
	Height 18.8mm
	Width 3.56mm

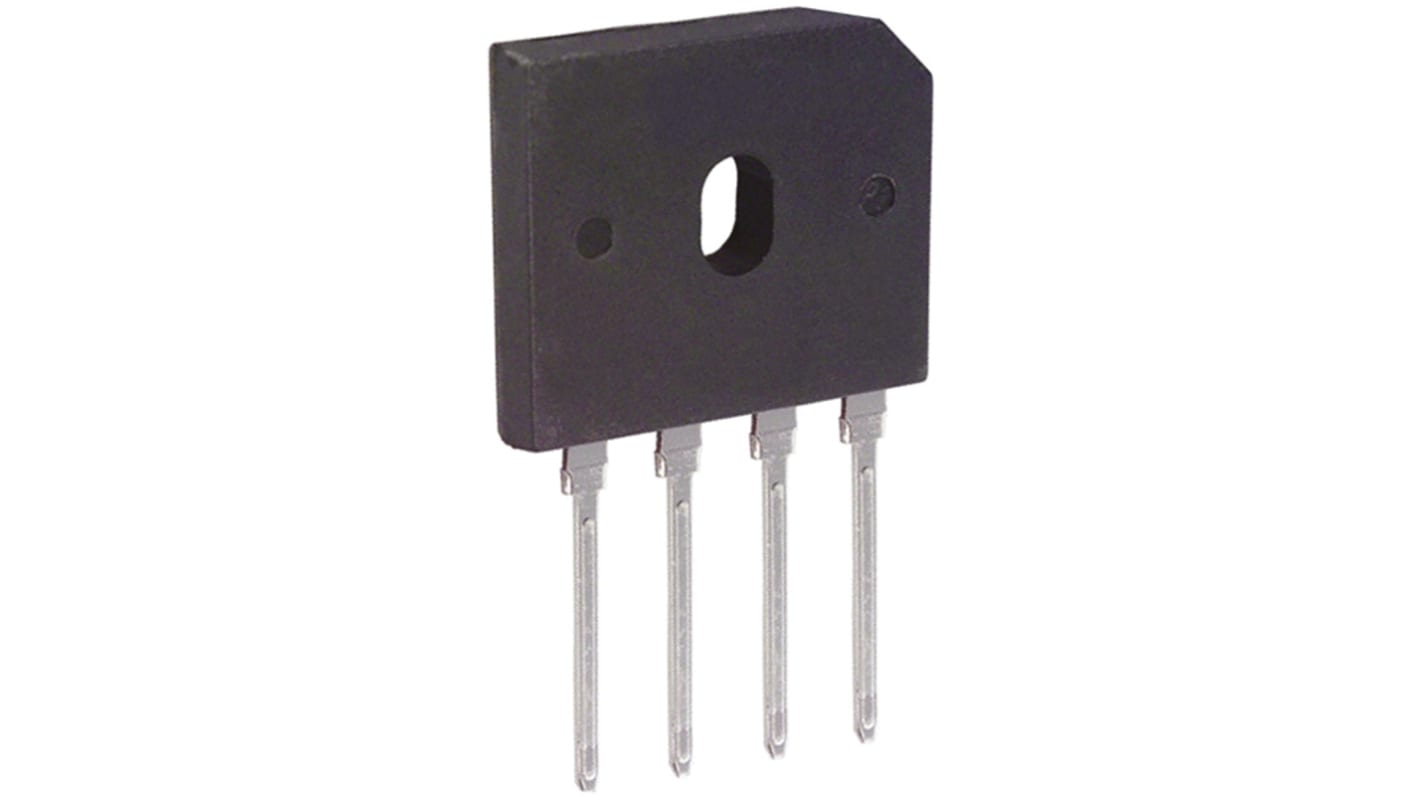

Diodes Inc Bridge Rectifier, 4A, 100V, 4-Pin

FREE delivery for orders over MYR500.00

SIL PCB Mounting, GBU series

Approvals
