Select all	Attribute	Value
	Brand	Vishay
	Peak Average Forward Current	15A
	Bridge Type	Single Phase
	Peak Reverse Repetitive Voltage	400V
	Mounting Type	Screw Mount
	Package Type	GBPC
	Pin Count	4
	Diode Technology	Silicon Junction
	Configuration	Single
	Peak Non-Repetitive Forward Surge Current	300A
	Maximum Operating Temperature	+150 °C
	Minimum Operating Temperature	-55 °C
	Peak Forward Voltage	1.1V
	Peak Reverse Current	5µA
	Length	28.8mm
	Dimensions	28.8 x 28.8 x 7.62mm
	Height	7.62mm
	Width	28.8mm

	Select all
	Brand Vishay
	Peak Average Forward Current 15A
	Bridge Type Single Phase
	Peak Reverse Repetitive Voltage 400V
	Mounting Type Screw Mount
	Package Type GBPC
	Pin Count 4
	Diode Technology Silicon Junction
	Configuration Single
	Peak Non-Repetitive Forward Surge Current 300A
	Maximum Operating Temperature +150 °C
	Minimum Operating Temperature -55 °C
	Peak Forward Voltage 1.1V
	Peak Reverse Current 5µA
	Length 28.8mm
	Dimensions 28.8 x 28.8 x 7.62mm
	Height 7.62mm
	Width 28.8mm

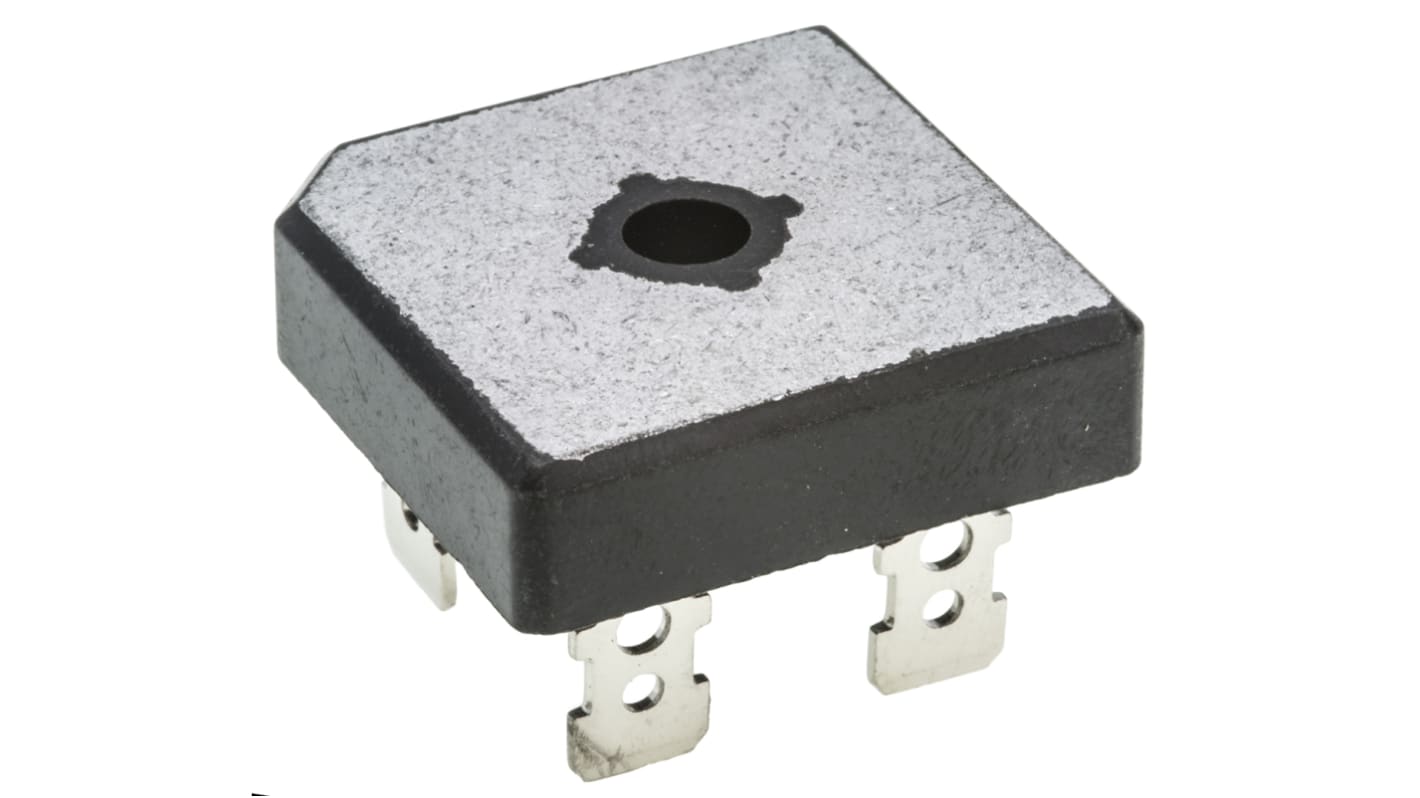

Vishay Bridge Rectifier, 15A, 400V, 4-Pin

FREE delivery for orders over MYR500.00

Bridge Rectifiers with Push-on Terminals, GBPC15 Series, Vishay Semiconductor
