Units	Per Unit
1 - 3	MYR357.99
4 - 7	MYR315.79
8 +	MYR279.86

Select all	Attribute	Value
	Brand	Vishay
	Bridge Type	Three Phase
	Peak Average Forward Current	200A
	Peak Reverse Repetitive Voltage	1200V
	Mounting Type	Panel Mount
	Package Type	INT-A-PAK
	Pin Count	6
	Diode Technology	Silicon Junction
	Configuration	Single
	Peak Non-Repetitive Forward Surge Current	1.5kA
	Maximum Operating Temperature	+60 °C
	Minimum Operating Temperature	-40 °C
	Peak Forward Voltage	1.49V
	Peak Reverse Current	10mA
	Dimensions	94 x 35 x 30mm
	Length	94mm
	Width	35mm
	Height	30mm

	Select all
	Brand Vishay
	Bridge Type Three Phase
	Peak Average Forward Current 200A
	Peak Reverse Repetitive Voltage 1200V
	Mounting Type Panel Mount
	Package Type INT-A-PAK
	Pin Count 6
	Diode Technology Silicon Junction
	Configuration Single
	Peak Non-Repetitive Forward Surge Current 1.5kA
	Maximum Operating Temperature +60 °C
	Minimum Operating Temperature -40 °C
	Peak Forward Voltage 1.49V
	Peak Reverse Current 10mA
	Dimensions 94 x 35 x 30mm
	Length 94mm
	Width 35mm
	Height 30mm

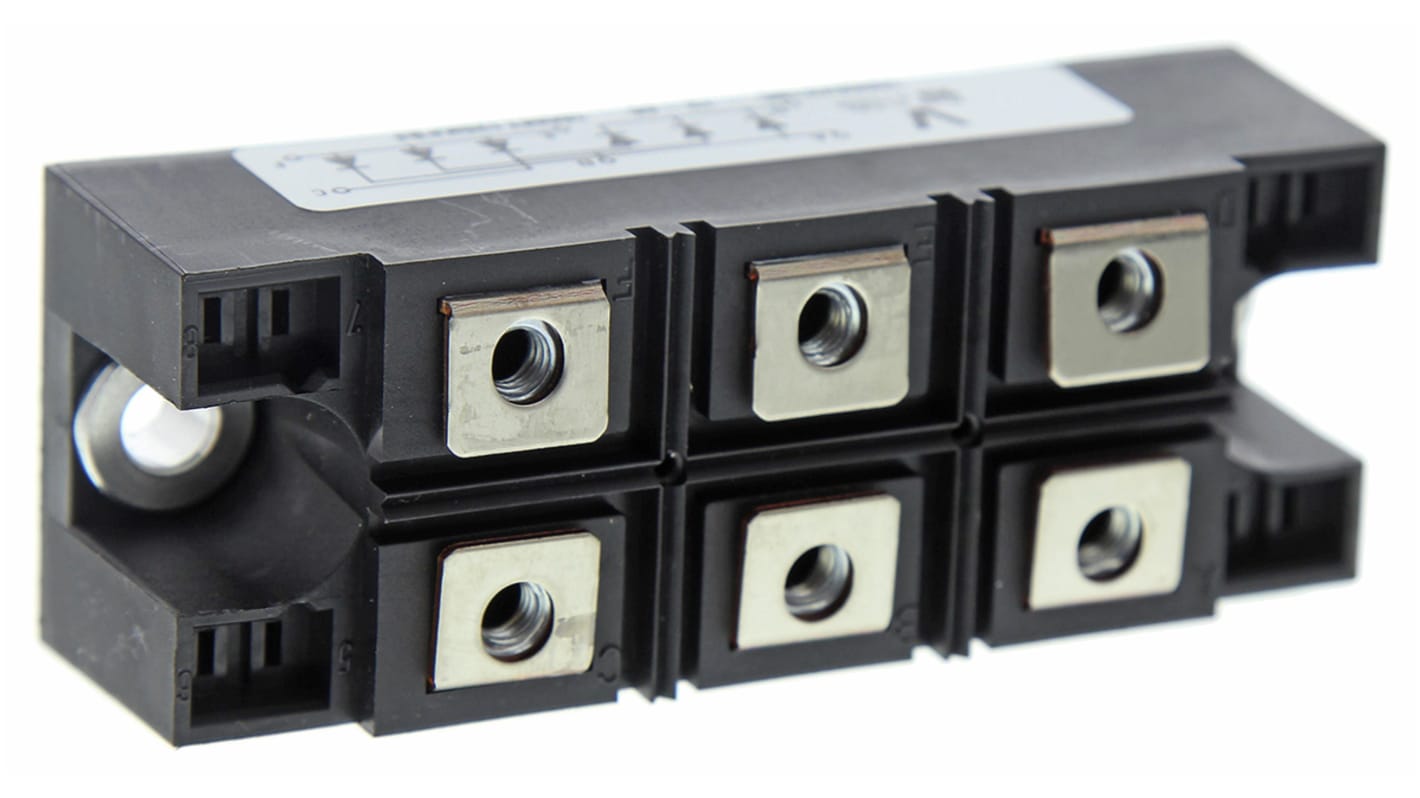

Vishay Bridge Rectifier Module, 200A, 1200V, 3-phase, 6-Pin

FREE delivery for orders over MYR500.00

Three Phase Bridge Rectifiers with Screw Terminals, VS-160MT Series, Vishay Semiconductor

Approvals
