Units	Per Unit
1 - 6	MYR84.17
7 - 12	MYR84.11
13 +	MYR74.96

Select all	Attribute	Value
	Brand	IXYS
	Bridge Type	Three Phase
	Peak Average Forward Current	28A
	Peak Reverse Repetitive Voltage	1600V
	Mounting Type	Through Hole
	Package Type	ISOPLUS-I4-PAC
	Pin Count	5
	Diode Technology	Silicon Junction
	Configuration	Single
	Peak Non-Repetitive Forward Surge Current	106A
	Maximum Operating Temperature	+150 °C
	Minimum Operating Temperature	-55 °C
	Peak Forward Voltage	1.3V
	Peak Reverse Current	5µA
	Dimensions	20.29 x 5.21 x 21.34mm
	Length	20.29mm
	Height	21.34mm
	Width	5.21mm

	Select all
	Brand IXYS
	Bridge Type Three Phase
	Peak Average Forward Current 28A
	Peak Reverse Repetitive Voltage 1600V
	Mounting Type Through Hole
	Package Type ISOPLUS-I4-PAC
	Pin Count 5
	Diode Technology Silicon Junction
	Configuration Single
	Peak Non-Repetitive Forward Surge Current 106A
	Maximum Operating Temperature +150 °C
	Minimum Operating Temperature -55 °C
	Peak Forward Voltage 1.3V
	Peak Reverse Current 5µA
	Dimensions 20.29 x 5.21 x 21.34mm
	Length 20.29mm
	Height 21.34mm
	Width 5.21mm

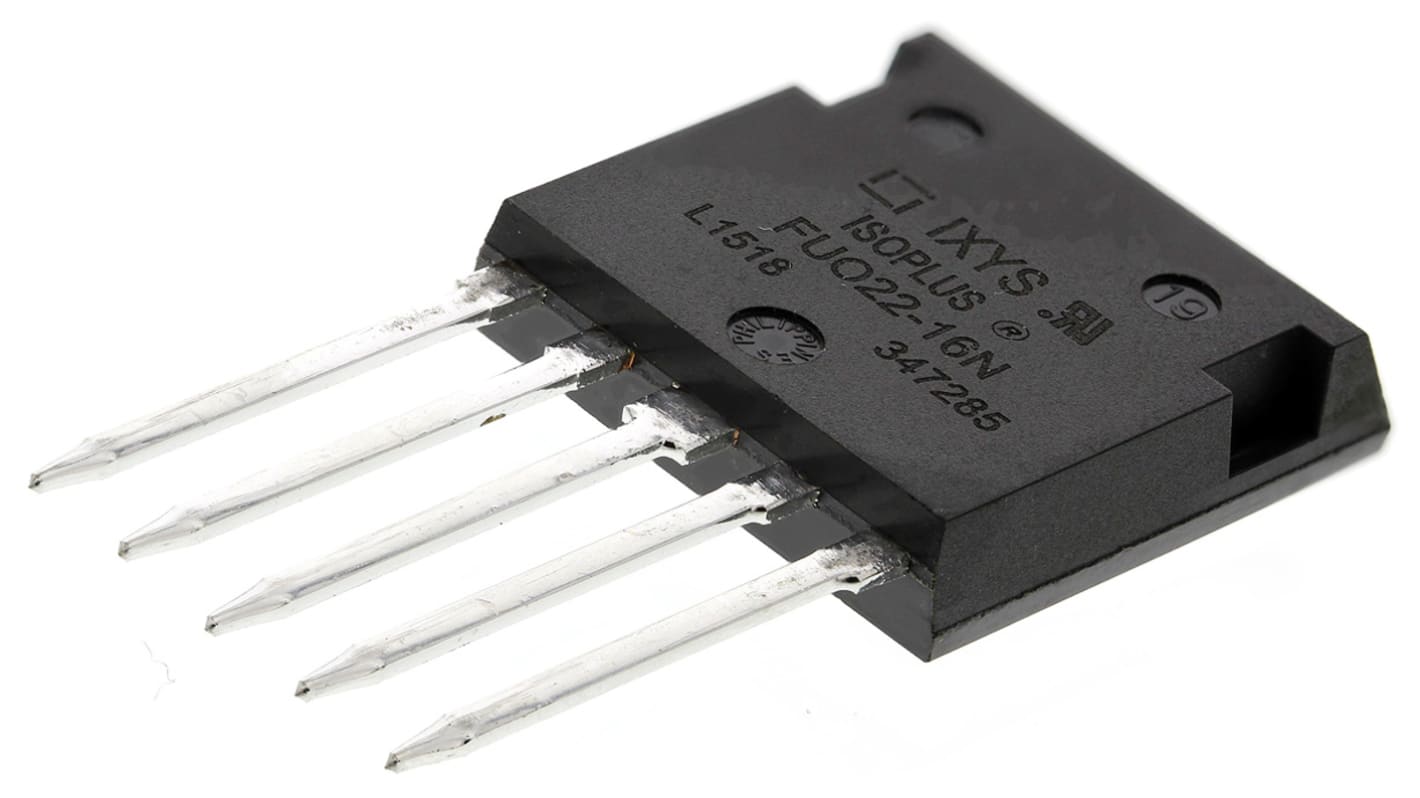

IXYS Bridge Rectifier, 28A, 1600V, 3-phase, 5-Pin

FREE delivery for orders over MYR500.00

Three Phase Bridge Rectifiers with In-Line Terminals, FUO Series, IXYS
