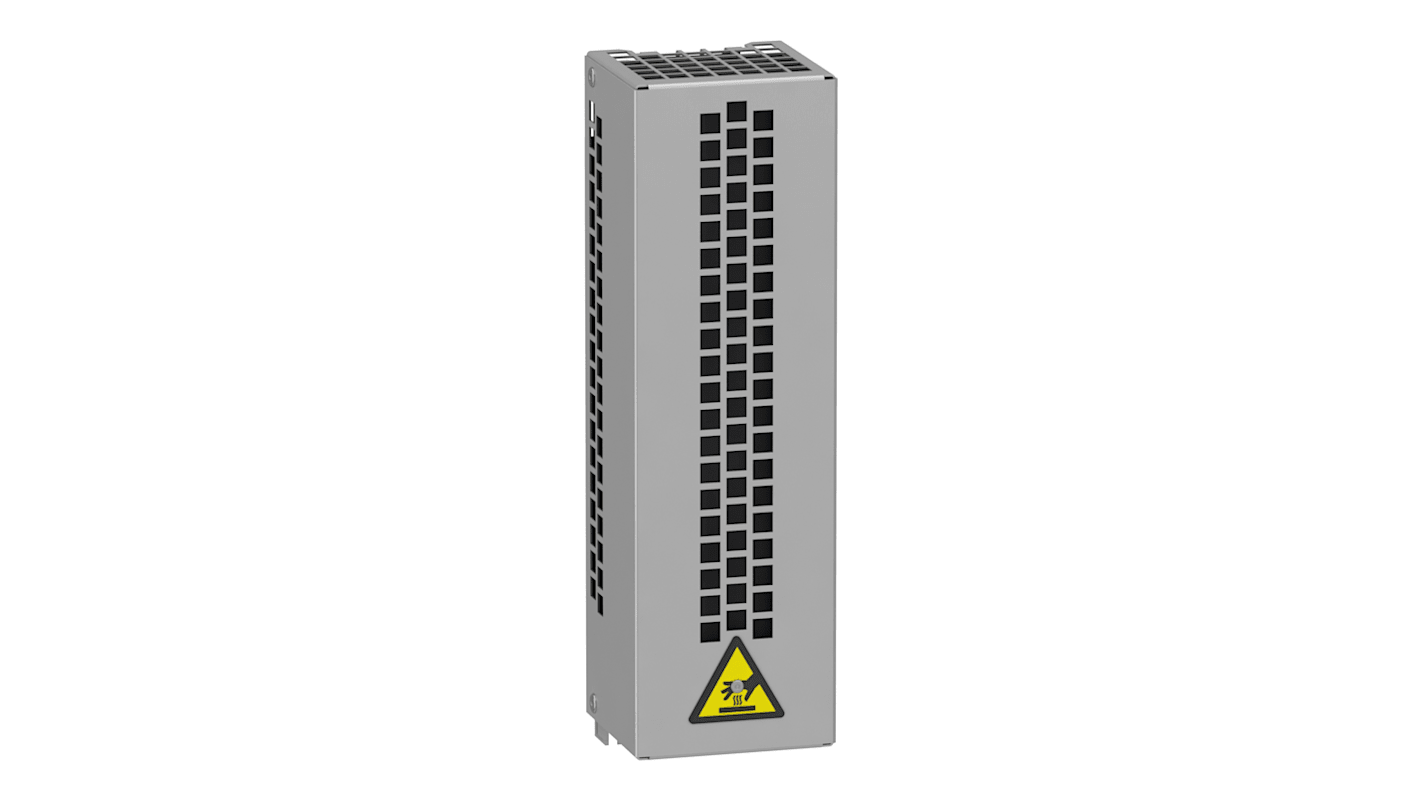

Schneider Electric Brake Module, 0.16 kW
- RS Stock No.:
- 221-0042
- Mfr. Part No.:
- VW3A7731
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
MYR713.81
FREE delivery for orders over RM 500.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR713.81 |
*price indicative
- RS Stock No.:
- 221-0042
- Mfr. Part No.:
- VW3A7731
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Brake Module | |
| Power Rating | 0.16kW | |
| IP Rating | IP20 | |
| Braking Torque | Yes | |
| Enclosure Length | 345mm | |
| Minimum Operating Temperature | 0°C | |
| Enclosure Width | 105mm | |
| Enclosure Depth | 100mm | |
| Series | Altivar | |
| Standards/Approvals | REACH, EU RoHS Directive EU RoHS Declaration | |
| Maximum Operating Temperature | 50°C | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Brake Module | ||
Power Rating 0.16kW | ||
IP Rating IP20 | ||
Braking Torque Yes | ||
Enclosure Length 345mm | ||
Minimum Operating Temperature 0°C | ||
Enclosure Width 105mm | ||
Enclosure Depth 100mm | ||
Series Altivar | ||
Standards/Approvals REACH, EU RoHS Directive EU RoHS Declaration | ||
Maximum Operating Temperature 50°C | ||
- COO (Country of Origin):
- DE
The Schneider Electric Braking Resistor is a power resistor that absorbs and dissipates as heat, this is extra energy thus slowing down or “braking” the motor. This is often referred to as “Dynamic Braking” and is very useful in safely controlling motor stops, increasing efficiency and lessening mechanical wear and tear. Thermal protection via drive.
IP20 Degree of Protection
