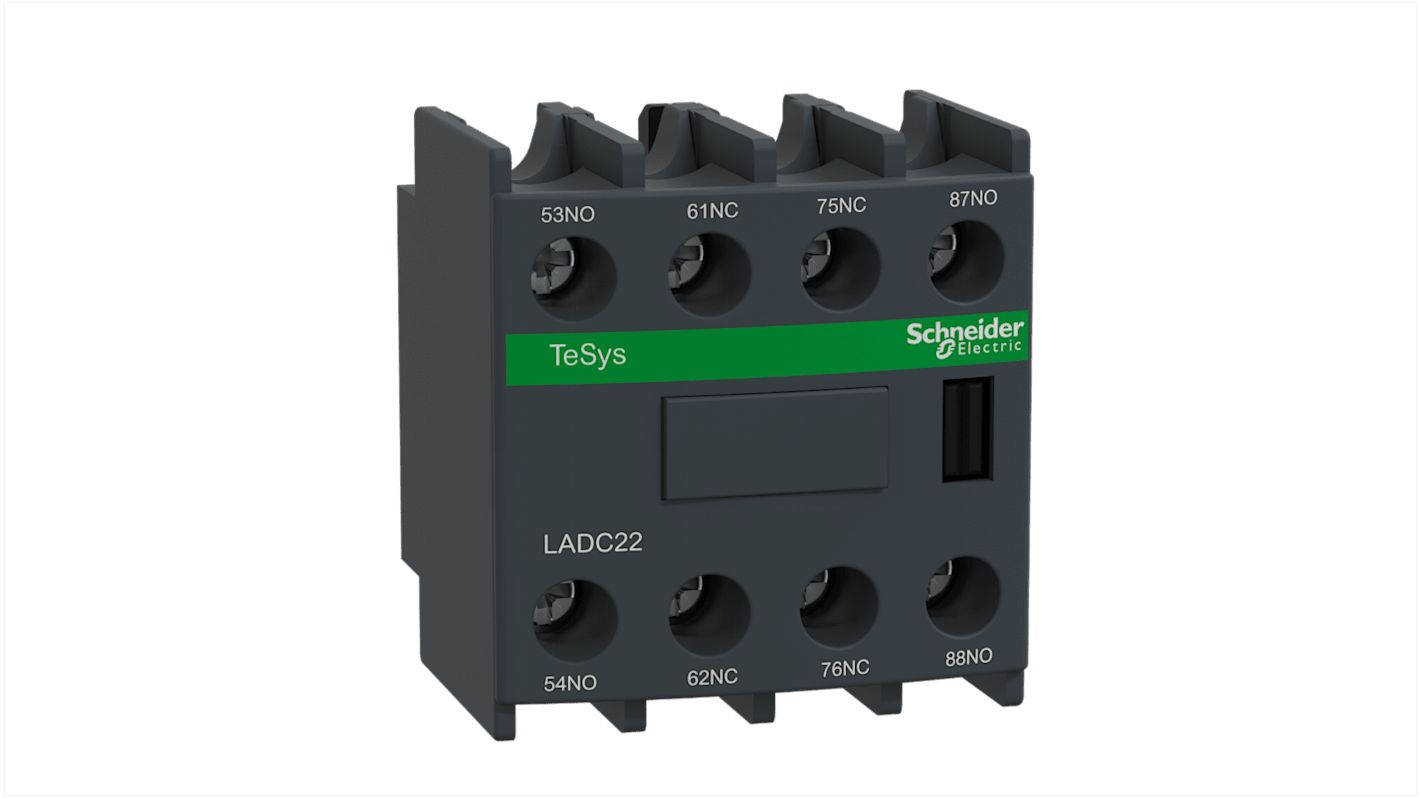

Schneider Electric Auxiliary Contact Block, 4 Contact, 2NC + 2NO, Front Mount, TeSys, TeSys Deca

Are you looking to add an additional auxiliary contact to your control circuit, to provide further safety? Schneider Electric offers the latest in Auxiliary Contact components and technology.

Specifically, the LADN TeSys series of Auxiliary Contactor brings reliability to your circuit by acting as a secondary switching device working in conjunction with other primary devices such as contactors, relays or circuit breakers.

• Low consumption on your control circuit
• 30 Mcycles of mechanical durability
• Compact, lightweight and easily attached to compatible contactors. Front side mounting
• Simplified mounting directly to the contactor/circuit breaker. Compact in size and equipped with EverLink terminal technology meaning permanent tightening even in the event with conductor creep
• 18-month manufacturer warranty with Schneider

Protection ratings & Safety features
• IEC 60947-5-1 associated fuse rating
• GG fuse <= 10 A
• BS 4795, EN 60947-5-1, IEC 60947-5-1
• CSA, UL certified
• IP2x Conforming to VDE 0106
• Thermally treated and protected to TH conforming to IEC 60068
• Ambient Air Temperature (AAT) for operation -5 to 60 °C

• Motor starters/Control systems
• Switching contactors/relay coils
• Control/Signalling equipment

Used with contactors or control relays. Current rating 10A I_TH. AC contactors acceptance:

4 to 18.5kW; one front and one side mounting module
22 to 45kW; one front and two side mounting modules
59 to 80kW; one front and one side mounting module

Tesys D side mount auxiliary contacts (662-6248, 744-6983, 400-1467, 400-1473) are not compatible with Tesys D DC Contactors

Tesys D side mount auxiliary contacts (662-6248, 744-6983, 400-1467, 400-1473) are not compatible with Tesys D DC Contactors.

TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A/690V AC, of which 1NO+1NC are with overlap time (make before break), connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. It provides 2NO+2NC instantaneous contacts rated up to 10A 690V AC, of which 1NO+1NC with overlap time. Multi standards certified (IEC, UL, CSA, EAC), Green Premium compliant (RoHS/REACh). Easy to mount on front by clip-on, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Add-on block with 2NO+2NC mechanically linked auxiliary contacts, with instantaneous operation and overlap time. Suitable to be included in the control of safety systems thanks to its NC certified mirror contacts. High electrical durability , several millions of operating cycles in AC-14/AC-15/DC-13 according conditions. Mounting by clip-on on front of all TeSys Deca and TeSys F contactors.

• Front mounting simplifies installation in compact environments
• 2NC and 2NO configuration enhances circuit control versatility
• Screw clamp terminal block allows for secure cable connections
• Designed for a wide operating temperature range of -5°C to 60°C
• Green Premium contact block supports environmental standards
• Rated making capacity of 140A AC ensures efficient operation

• Utilised for auxiliary control in motor starters
• Ideal for coupling with TeSys D and TeSys Deca ranges
• Employed in both electrical and mechanical systems
• Suitable for projects adhering to green building standards

Yes, it functions effectively between -5°C and 60°C.

Yes, it is compatible with various TeSys products.

Yes, it has a rated making capacity of 140A AC.

Yes, it supports various flexible and rigid cable sizes.
