Teledyne LeCroy Arbitrary Waveform Generator 30 MHz Max, 2-Channel, 10 MHz Min

View this category

Subtotal (1 unit)*

MYR6,258.04

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per Unit
1 +MYR6,258.04

*price indicative

RS Stock No.:
218-3782
Distrelec Article No.:
302-19-534
Mfr. Part No.:
T3AFG30
Manufacturer:
Teledyne LeCroy
Find similar products by selecting one or more attributes.
Select all

Brand

Teledyne LeCroy

Product Type

Arbitrary Waveform Generator

Maximum Frequency

30MHz

Minimum Frequency

10MHz

Maximum Frequency Triangle Ramps

500kHz

Number of Channels

2

Minimum Frequency Triangle Ramps

1μHz

Maximum Sampling Frequency

150Msps

Resolution

14 bit

Minimum Operating Temperature

0°C

Maximum Operating Temperature

40°C

Width

260.3 mm

Weight

3.43kg

Length

107.2mm

Height

295.7mm

Standards/Approvals

LVD, IEC61010-2:2010, EMC EN61326-1:2013

Connector Type

USB, LAN

Interface Type

USB Host, LAN, USB

Inputs

Out, Aux In, 2 Waveform Outputs, Counter Input

Rise - Fall Time

22.4s

Display Type

TFT LCD

Data Entry

Keyboard

COO (Country of Origin):
CN

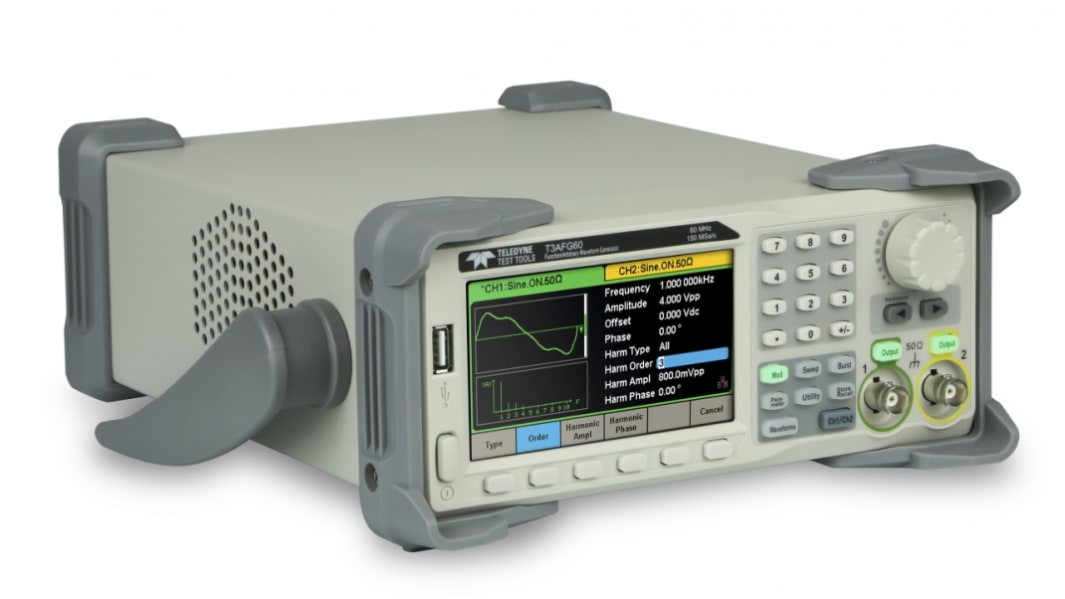

Teledyne LeCroy T3AFG30 Waveform Generator 30 MHz


The Teledyne LeCroy T3AFG30 function/arbitrary generator is a dual-channel waveform generator with a maximum frequency of 30 MHz, 150MSa/s maximum sampling rate and 14-bit vertical resolution.

Deep Memory - 16 kpts per channel

Wide Range of Modulation Types - AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst and PSK

High Resolution - 14 bit resolution

Built in Arbitrary Waveforms

User Defined Waveforms
