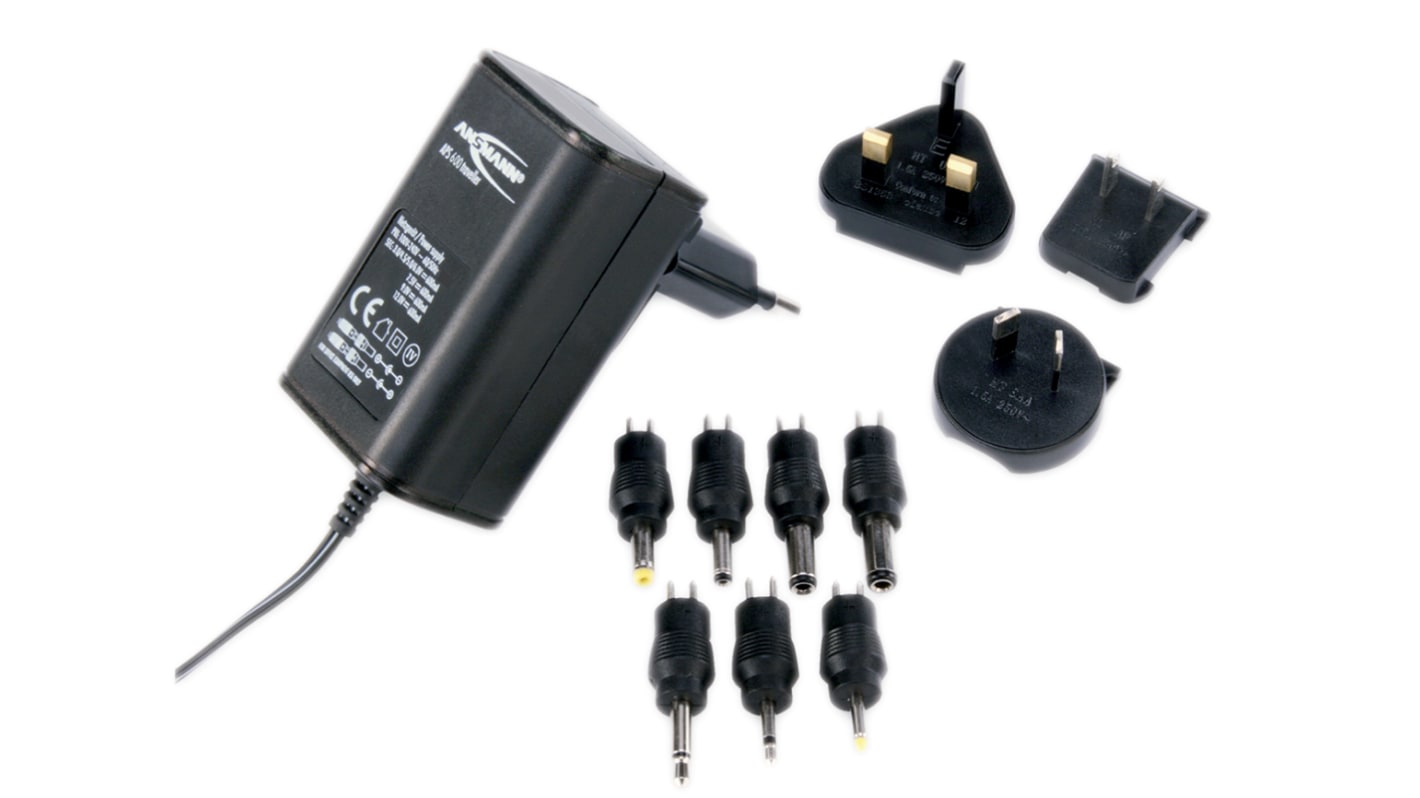

Ansmann 7.2W Plug-In AC/DC Adapter 3V dc Output, 600mA Output
- RS Stock No.:
- 735-0747
- Mfr. Part No.:
- 1209-0000
- Manufacturer:
- Ansmann
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
157 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR115.26
You pay
MYR109.50
| Units | Per Unit |
| 1 + | MYR109.50 |
- RS Stock No.:
- 735-0747
- Mfr. Part No.:
- 1209-0000
- Manufacturer:
- Ansmann
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Ansmann Universal Power Supply
The Ansmann APS 600 series universal power supply has a regulated output voltage within the range of 3V to 12V. This universal power supply is suitable for use with small electrical devices. It is supplied with a changeable mains plug and a selection of output connectors. It supports numerous applications due to the wide range input (100-240V AC) that complies with the universal standard and changeable input plugs for Europe, UK, USA and Australia.
Note:
Conforms to energy-related product directive 2009/125/EC
Note:
Conforms to energy-related product directive 2009/125/EC
Features and Benefits
Double insulation
Output current is 600mA
Output lead is 1.8m with polarity inverter and set of 7 connectors
Output power is 7.2W
Regulated output voltage
Selectable output voltage via rotary switch
Short circuit proof
Supplied with 7 different output connectors
Output current is 600mA
Output lead is 1.8m with polarity inverter and set of 7 connectors
Output power is 7.2W
Regulated output voltage
Selectable output voltage via rotary switch
Short circuit proof
Supplied with 7 different output connectors
Certifications
CE certified
UL94V-0
ErP compliant
UL94V-0
ErP compliant
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | Australia, European Plug, Japan, UK, US |
| Output Voltage | 3 V dc, 4.5 V dc, 5 V dc, 6 V dc, 7.5 V dc, 9 V dc, 12V dc |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
| Output Current | 600mA |
| Maximum Temperature | +25°C |
| Output Connector | Interchangeable |
| Input Connector | Universal Plug |
| Number of Outputs | 1 |
| Power Rating | 7.2W |
| Cable Length | 1.8m |
| Standards Met | ErP Compliant |
| MTBF | 70000h |
| Load Regulation | ±10% |
| Type | AC/DC Adapter |
| Length | 69mm |
| Energy Efficiency Level | V |
| Minimum Temperature | 0°C |
| Depth | 54.7mm |
| Width | 42mm |
