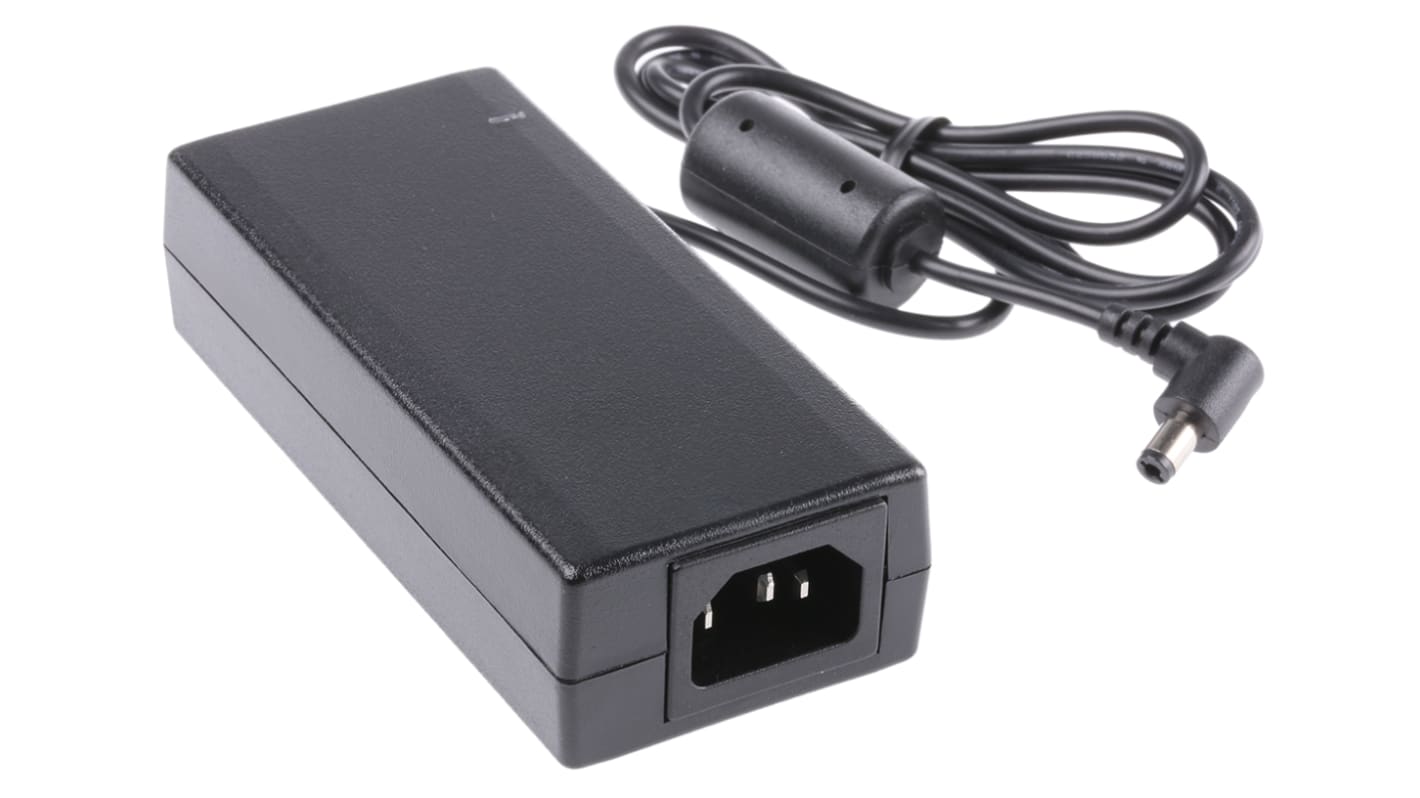

EOS AC-DC Converter Power Supplies AC/DC Adapter 65 W 19V dc Output, 3.42 A

RS Stock No.:: 668-9283
Mfr. Part No.:: LFZVC65NP19E4
Manufacturer:: EOS

EOS AC-DC Converter Power Supplies AC/DC Adapter 65 W 19V dc Output, 3.42 A

View all AC/DC Adapters

Currently unavailable

We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

XP Power DC Jack AC/DC Adapter 65 W 19V dc Output, 3.4 A

RS Stock No.: 121-7098

Each

MYR275.84

RS Stock No.:: 668-9283
Mfr. Part No.:: LFZVC65NP19E4
Manufacturer:: EOS

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EOS
	Product Type	AC/DC Adapter
	Sub Type	AC-DC Converter Power Supplies
	Output Voltage	19V dc
	Power	65W
	Cable Length	1.2m
	Number of Outputs	1
	Adapter Current	3.42A
	Input Connector Type	IEC 320-C14
	Regulated/Unregulated	Regulated
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	50°C
	Width	53mm
	Length	117mm
	Standards/Approvals	ErP Compliant
	Depth	31.5mm
	Maximum Input Voltage	264V ac
	Efficiency	85%
	Energy Efficiency Level	V
	Load Regulation	5 %
	Series	LFZVC65
	Minimum Input Voltage	100V ac

	Select all
	Brand EOS
	Product Type AC/DC Adapter
	Sub Type AC-DC Converter Power Supplies
	Output Voltage 19V dc
	Power 65W
	Cable Length 1.2m
	Number of Outputs 1
	Adapter Current 3.42A
	Input Connector Type IEC 320-C14
	Regulated/Unregulated Regulated
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 50°C
	Width 53mm
	Length 117mm
	Standards/Approvals ErP Compliant
	Depth 31.5mm
	Maximum Input Voltage 264V ac
	Efficiency 85%
	Energy Efficiency Level V
	Load Regulation 5 %
	Series LFZVC65
	Minimum Input Voltage 100V ac

Datasheet

COO (Country of Origin):: CN

EOS 36W to 180W Single Output Switch Mode Desktop Power Supply - ZVC Series

36 to 180W energy saving switch mode single output desktop power supply with universal input and compact design. This energy saving switch mode single output desktop power supply is ideal for laptops and multimedia, industrial, networking and printing applications. This range of desktop power supplies includes versions that are suitable for use as either a laptop power supply, netbook power supply or notebook power supply.

Ultra miniature and lightweight switch mode power supply

Universal input

High efficiency, no load standby power < 0.5W

Fully regulated and protected output

EMI/RFI filter to EN55022-B, FCC2/15-B, CISPR22-B

Types ZVC36 to ZVC72 are fitted with a 1.2m output lead with right angled jack plug (I/D 2.54 x O/D 5.54 x L 9.5mm, centre pin positive)

Types ZVC150 & ZVC180 are fitted with a 1.2m output lead with a 4 pin DIN connector, for suitable mating connectors use stk nos 667-7283 and 667-7287

Note

Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Current derates to 75% at 50°C

Approvals

UL, CSA

Standards

UL, TUV, EN60950-1
