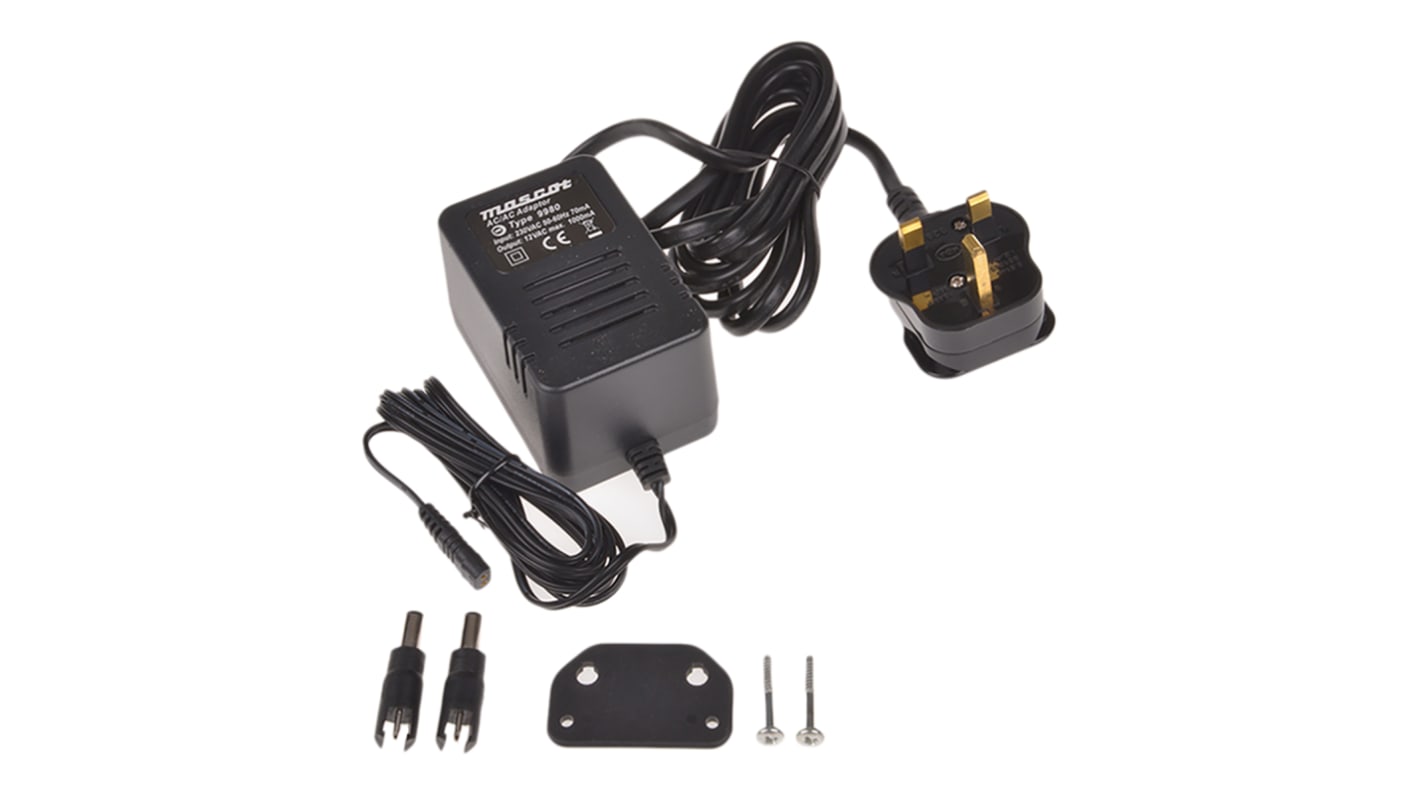

Mascot 12VA Power Brick AC/DC Adapter 12V ac Output, 1A Output

RS Stock No.:: 400-6917
Mfr. Part No.:: 9980000055
Manufacturer:: Mascot

Mascot 12VA Power Brick AC/DC Adapter 12V ac Output, 1A Output

15 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR186.46

Units	Per Unit
1 - 9	MYR186.46
10 - 49	MYR184.16
50 +	MYR180.81

RS Stock No.:: 400-6917
Mfr. Part No.:: 9980000055
Manufacturer:: Mascot

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Mascot 9VA to 24VA AC/AC Linear Desktop Power Supply - Series 9980

AC/AC linear desktop power supply available with 3 pin UK plug or 2 pin Euro plug. These AC desktop transformers have a secondary cable with snap-on plugs allowing 4 connection options

230Vac input voltage
Maximum output power of 24VA
Insulation Class II
Overload and short circuit protection
2 metre mains input lead
2m output lead with polarity inverter
EMI compliance to EN 61000-6-3 and EN 61000-6-1

Note

Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.

Not suitable for use as battery chargers.

Standards

EN 60950

Supplied with

Supplied with 2 loose connectors with snap-lock feature, 2.1x5.5x12mm and 2.5x5.5x12mm.

Specifications

Attribute	Value
Adapter Type	Power Brick Adapter
Plug Type	3-Pin UK
Output Voltage	12V ac
Input Voltage	230V ac
Output Current	1A
Maximum Temperature	+40°C
Output Connector	2.1 x 5.5 x 12 mm with Snap-Lock, 2.5 x 5.5 x 12 mm with Snap-Lock
Number of Outputs	1
Power Rating	12VA
Cable Length	2000mm
Depth	49mm
Length	81mm
Minimum Temperature	-10°C
Width	56mm
