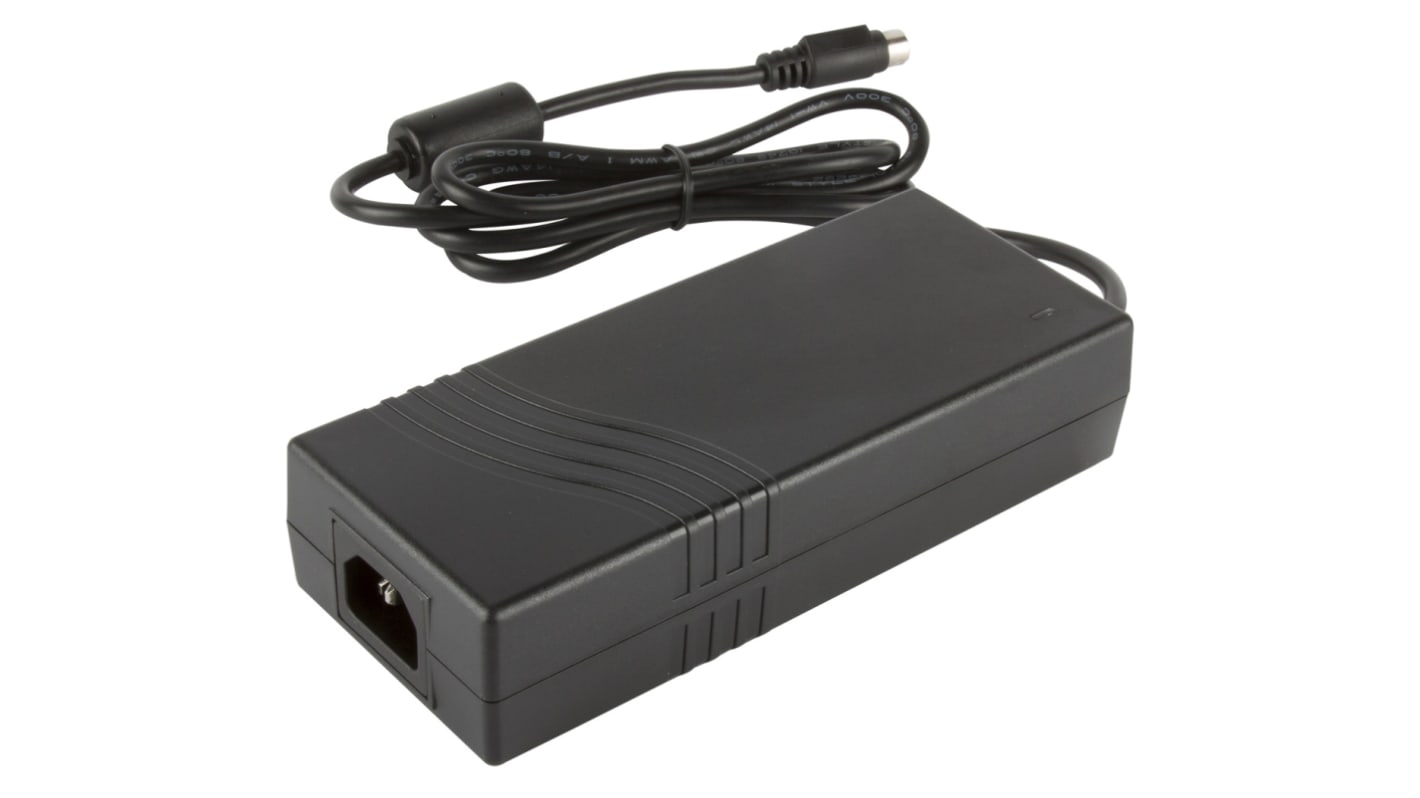

XP Power 120W Power Brick AC/DC Adapter 24V dc Output, 5A Output
- RS Stock No.:
- 122-9837
- Distrelec Article No.:
- 301-83-839
- Mfr. Part No.:
- VES120PS24
- Manufacturer:
- XP Power
Bulk discount available
Subtotal (1 unit)*
MYR306.62
FREE delivery for orders over RM 500.00
In Stock
- 101 unit(s) ready to ship from another location
- Plus 48 unit(s) shipping from 12 February 2026
- Plus 64 unit(s) shipping from 14 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR306.62 |
| 10 - 49 | MYR295.93 |
| 50 + | MYR284.98 |
*price indicative
- RS Stock No.:
- 122-9837
- Distrelec Article No.:
- 301-83-839
- Mfr. Part No.:
- VES120PS24
- Manufacturer:
- XP Power
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Adapter Type | Power Brick Adapter | |
| Plug Type | IEC | |
| Output Voltage | 24V dc | |
| Input Voltage | 80 → 275V ac | |
| Output Current | 5A | |
| Maximum Temperature | +60°C | |
| Output Connector | 4-Pin Plug | |
| Input Connector | C14 | |
| Number of Outputs | 1 | |
| Power Rating | 120W | |
| Cable Length | 1200mm | |
| MTBF | 200kh | |
| Efficiency | 89% | |
| Standards Met | China Compulsory Certification Qualified, EN 55022, EN 60950-1, EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, European CoC Tier 2, IEC 60950-1, IEC 68-2-27, IEC 68-2-6, MIL-HDBK-217F, UL 60950-1 | |
| Minimum Temperature | 0°C | |
| Energy Efficiency Level | VI | |
| Load Regulation | ±5% | |
| Line Regulation Range | ±0.5% | |
| Series | VES120 | |
| Length | 168mm | |
| Width | 71mm | |
| Depth | 37.5mm | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Adapter Type Power Brick Adapter | ||
Plug Type IEC | ||
Output Voltage 24V dc | ||
Input Voltage 80 → 275V ac | ||
Output Current 5A | ||
Maximum Temperature +60°C | ||
Output Connector 4-Pin Plug | ||
Input Connector C14 | ||
Number of Outputs 1 | ||
Power Rating 120W | ||
Cable Length 1200mm | ||
MTBF 200kh | ||
Efficiency 89% | ||
Standards Met China Compulsory Certification Qualified, EN 55022, EN 60950-1, EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, European CoC Tier 2, IEC 60950-1, IEC 68-2-27, IEC 68-2-6, MIL-HDBK-217F, UL 60950-1 | ||
Minimum Temperature 0°C | ||
Energy Efficiency Level VI | ||
Load Regulation ±5% | ||
Line Regulation Range ±0.5% | ||
Series VES120 | ||
Length 168mm | ||
Width 71mm | ||
Depth 37.5mm | ||
- COO (Country of Origin):
- CN
XP Power Desktop Power Supply
The XP Power VEC120 series desktop Power supply is the latest invention with a high-quality adapter and a voltage rating of 24VDC. It provides 120W of continuous output power in a high-quality, compact enclosure suitable for many general Power applications. It has an input frequency range from 47Hz to 63Hz. While the input voltage rating ranging from 90VAC to 264VAC, its maximum input current is 2A.
Features and Benefits
Output current is 5A
Total regulation is ±5%
Energy efficiency level VI
European CoC tier 2
Limited Power source approved
Less than 0.15W standby Power
High Power density
Optional inlet connector available
Total regulation is ±5%
Energy efficiency level VI
European CoC tier 2
Limited Power source approved
Less than 0.15W standby Power
High Power density
Optional inlet connector available
Certifications
IEC68-2-27, 30 g
IEC68-2-6
CCC qualified
IEC68-2-6
CCC qualified
