- RS Stock No.:
- 679-5296
- Mfr. Part No.:
- 22-01-2031
- Manufacturer:
- Molex
430 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
2780 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 10)
Was MYR0.789
You pay
MYR0.719
Units | Per Unit | Per Pack* |
10 - 190 | MYR0.719 | MYR7.19 |
200 - 740 | MYR0.704 | MYR7.04 |
750 - 2990 | MYR0.689 | MYR6.89 |
3000 - 5990 | MYR0.674 | MYR6.74 |
6000 + | MYR0.659 | MYR6.59 |
*price indicative |
- RS Stock No.:
- 679-5296
- Mfr. Part No.:
- 22-01-2031
- Manufacturer:
- Molex
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Socket Housings, 2695 Series (with Lock)
Mates with 2.54mm (.100") pitch KK® headers for use with 2759 and 6459 Series terminals for which it is essential that Insertion Tool is used to assure proper seating of terminals and reduce operator fatigue.
Part numbers of these KK 2695 Series Housings 22-01-2xxx have Friction Lock ramps and 22-01-3xxx have Friction Lock ramps and Polarizing Ribs. The KK 6471 Series of Housings use the 4809 Series Terminals.
Part numbers of these KK 2695 Series Housings 22-01-2xxx have Friction Lock ramps and 22-01-3xxx have Friction Lock ramps and Polarizing Ribs. The KK 6471 Series of Housings use the 4809 Series Terminals.
Features and Benefits
• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

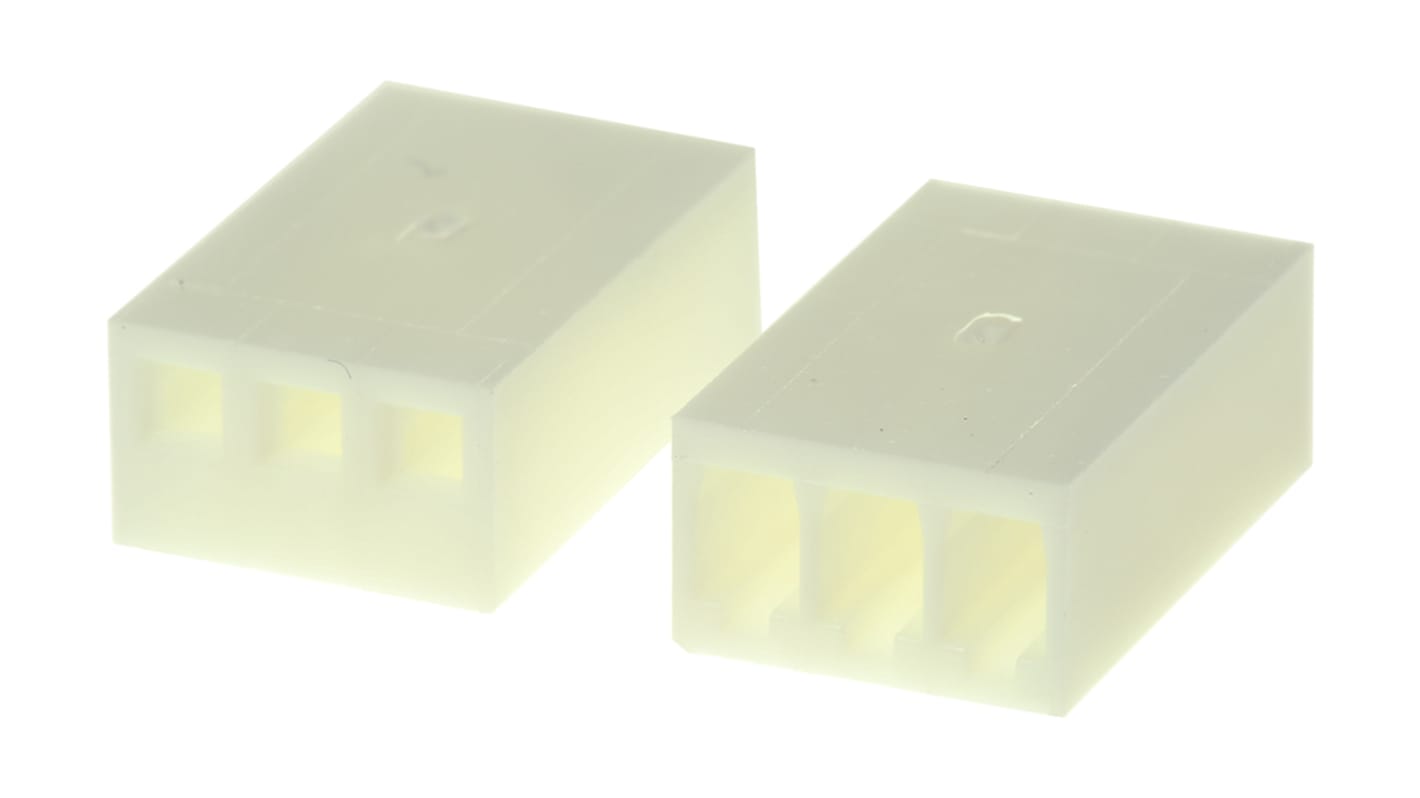

Molex Connector Housing, Female, 3 Way - KK 254 Series - 22-01-2031
Features & Benefits
• Low halogen content for reduced risk of environmental contamination
• Light weight of 0.4g for minimal strain on PCBs
• Straight body orientation for convenient front-facing mounting
• Light weight of 0.4g for minimal strain on PCBs
• Straight body orientation for convenient front-facing mounting
Applications
• Machine prototypes
• Automated industrial systems
• Automotive engineering
• Automated industrial systems
• Automotive engineering
Is this header flame-retardant?
Yes, it is. This housing stops burning in ten seconds or less, reducing the risk of flames spreading.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Number of Contacts | 3 |
Number of Rows | 1 |
Pitch | 2.54mm |
Gender | Female |
Mounting Type | Cable Mount |
Series | KK 254 |
For Use With | KK Connector |
Body Orientation | Straight |
Length | 8.18mm |
Width | 4.82mm |
Housing Material | Nylon |
