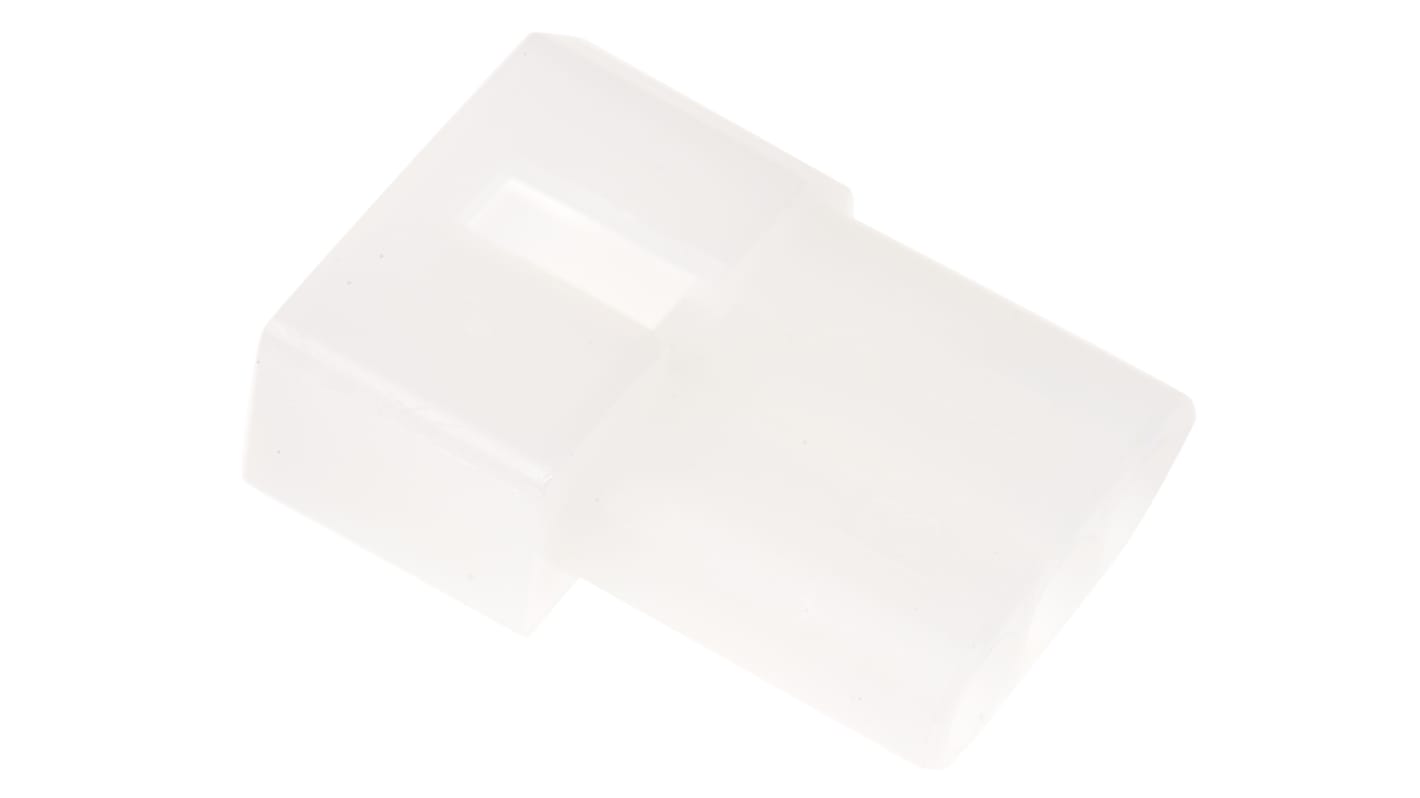

Molex, STANDARD .093" Male Connector Housing, 5.03mm Pitch, 3 Way, 1 Row

RS Stock No.:: 679-4994
Mfr. Part No.:: 03-09-2032
Manufacturer:: Molex

Molex, STANDARD .093" Male Connector Housing, 5.03mm Pitch, 3 Way, 1 Row

Bulk discount available

Subtotal (1 pack of 10 units)**

MYR7.46

670 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit	Per Pack**
10 - 990	MYR0.746	MYR7.46
1000 - 1990	MYR0.715	MYR7.15
2000 +	MYR0.678	MYR6.78

**price indicative

RS Stock No.:: 679-4994
Mfr. Part No.:: 03-09-2032
Manufacturer:: Molex

Datasheet - 03-09-2032

Plugs and Receptacles, 1396 Series

Use with: 1377 Series pc tail female terminals (typical stock number 679-4792 ) and 1380 Series male terminals (typical stock number 670-0260 )

Note

For Reference only, use with: 1189; 1190; 1376; 1381; 1433; 1434; 1973; 2151; 2273; 2870; 2871; 4272; 4550; 6271; 6310; 42477 and 42478 Series terminals.

Molex STANDARD .093 Series Connector Housing, 5.03mm Pitch, Cable Mount - 03-09-2032

This connector housing is designed for dependable electrical connections across various applications. Its sturdy construction promotes durability and facilitates seamless wire-to-wire connectivity. Features like a 5.03mm pitch improve compatibility and simplify installation, making it a practical option for professionals in automation, electronics, and electrical sectors.

Features & Benefits

• Accommodates up to three circuits for diverse connections
• Designed for male configurations to securely fit with terminals
• Cable mount design enables easy installation in multiple setups
• Straight orientation aids alignment during assembly
• Constructed from nylon for enhanced strength and thermal resistance

Applications

• Used in power distribution systems for effective signal transfer
• Suitable for consumer electronics that require compact connections
• Appropriate for automation equipment needing dependable interconnections
• Applicable in mechanical installations that demand robust connector housings

What is the maximum temperature range for operation?

The product operates effectively within a temperature range of -40°C to +105°C.

Can it be installed with other types of terminals?

Yes, it is compatible with standard .093 pin and socket terminals.

How does the cable mount design benefit installation?

The cable mount design accommodates various mounting scenarios and simplifies the connection process.

Is this connector housing suitable for high-current applications?

Yes, it can handle a maximum current of 17.0A when used with the appropriate terminals.

What material is the connector housing made from?

The housing is primarily made from nylon, offering durability and heat resistance.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Molex 2.36mm Diameter Standard .093" Pin and Socket Range

Attribute	Value
Number of Contacts	3
Number of Rows	1
Pitch	5.03mm
Gender	Male
Mounting Type	Cable Mount
Series	STANDARD .093"
For Use With	42477, 42478 terminals
Body Orientation	Straight
Housing Material	Nylon
Termination Method	Wire Hole
