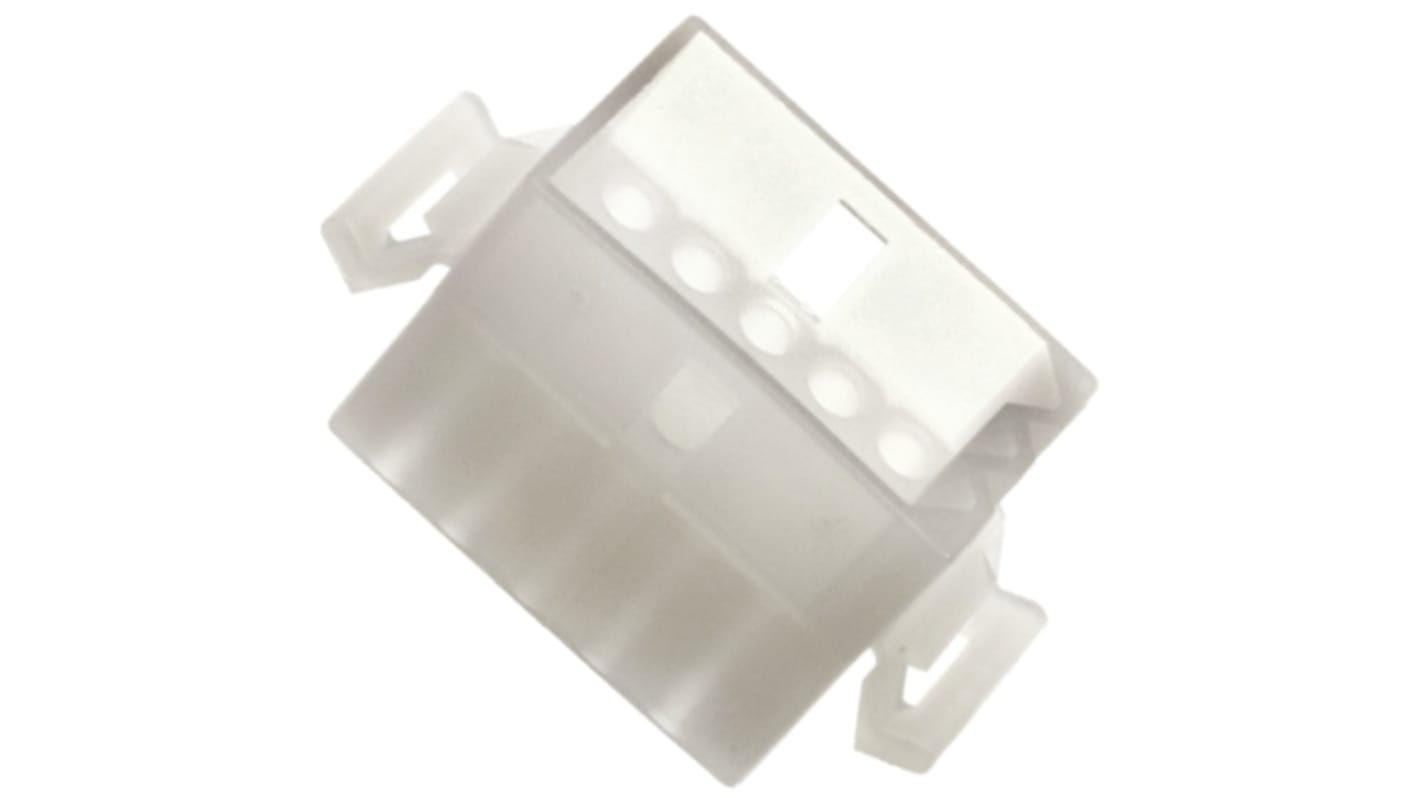

Molex, STANDARD .093" Male Connector Housing, 5.03mm Pitch, 15 Way, 3 Row

RS Stock No.:: 797-6588
Mfr. Part No.:: 03-09-2159
Manufacturer:: Molex

Molex, STANDARD .093" Male Connector Housing, 5.03mm Pitch, 15 Way, 3 Row

Bulk discount available

Price Each (In a Pack of 5)

MYR4.874

60 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per Unit	Per Pack**
5 - 95	MYR4.874	MYR24.37
100 - 370	MYR4.774	MYR23.87
375 - 1495	MYR4.63	MYR23.15
1500 - 2995	MYR4.516	MYR22.58
3000 +	MYR4.416	MYR22.08

**price indicative

RS Stock No.:: 797-6588
Mfr. Part No.:: 03-09-2159
Manufacturer:: Molex

Series 1375 .093/(2.36) Plug and Receptacle Housings 15 Circuit .198/(5.03) pitch - Drawing
Line Drawing
Datasheet - 03-09-2159

Attribute	Value
Number of Contacts	15
Number of Rows	3
Pitch	5.03mm
Gender	Male
Mounting Type	Panel Mount
Series	STANDARD .093"
For Use With	Crimp Terminal 1189, Crimp Terminal 1190, Crimp Terminal 1433, Crimp Terminal 1973, Crimp Terminal 2151, Crimp Terminal 2273, Crimp Terminal 2870, Crimp Terminal 2871, Crimp Terminal 4272, Crimp Terminal 4550, Crimp Terminal 6271, Female Crimp Terminal 1381, Male Crimp Terminal 1380, Male Crimp Terminal 1434
Body Orientation	Straight
Length	42.4mm
Width	18.7mm
Housing Material	Nylon

Molex, STANDARD .093" Male Connector Housing, 5.03mm Pitch, 15 Way, 3 Row

2.36mm Diameter Standard .093" Pin and Socket Housings - 1375 Series

Molex STANDARD .093" Series Connector Housing, Panel Mount , 5.03mm Pitch - 03-09-2159

Features & Benefits

Applications

Can it accommodate multiple crimp terminal sizes?

Is it suitable for panel mount applications?

Will it work with other Molex series apart from 1375?
