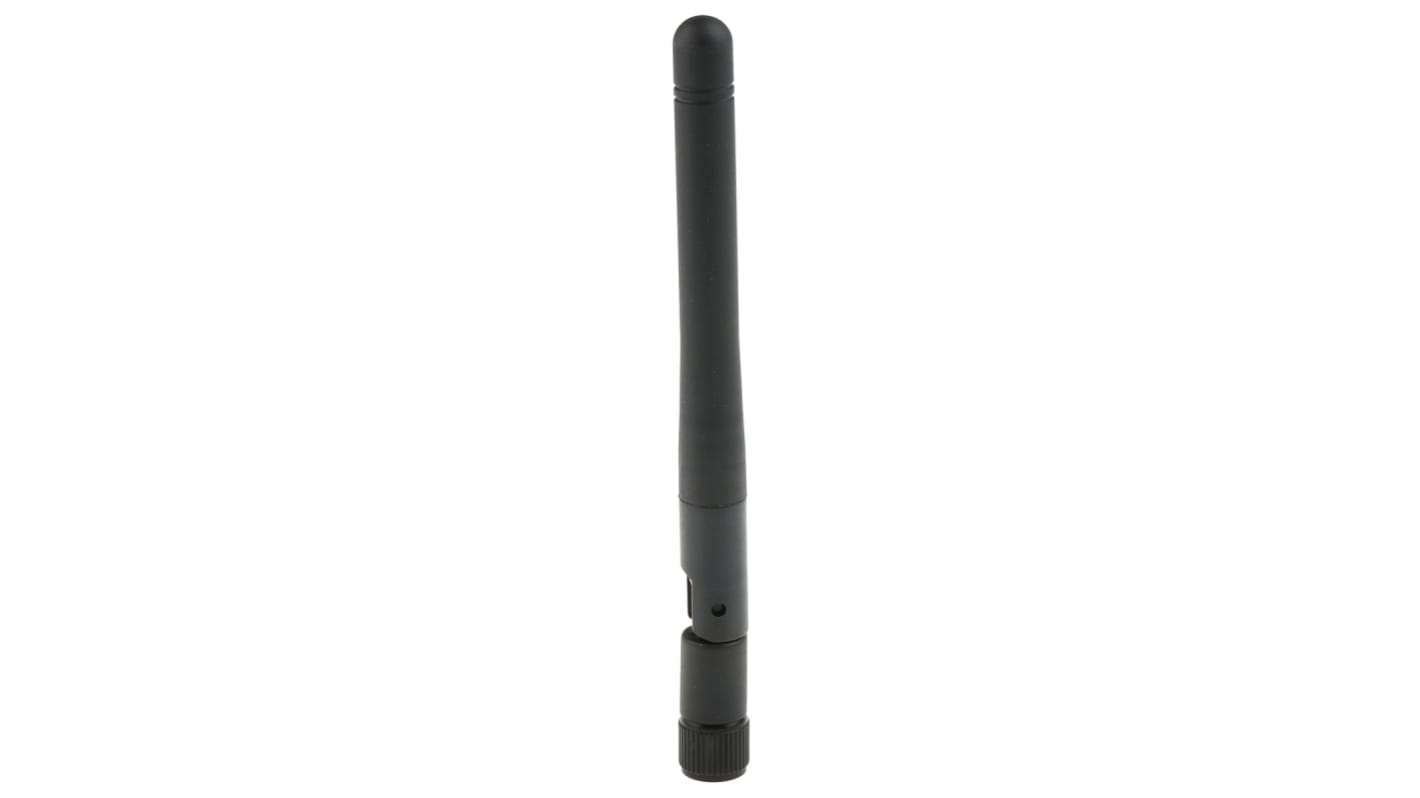

RN-SMA-4 Microchip - Whip WiFi Antenna, Direct Mount, (2.4 GHz) SMA Connector

  • RS Stock No. 798-5368
  • Mfr. Part No. RN-SMA-4
  • Manufacturer Microchip
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Microchip RN-SMA4 Wi-Fi Antenna

The Microchip RN-SMA4 is a 4in. antenna with reverse polarity (male) SMA connector for WiFi and Bluetooth.

Centre frequency: 2.45GHz
Bandwidth: 120MHz
Wavelength: 1/2-wave
VSWR: <1.9 typical at centre
Impedance: 50 ohms
Gain: 2.20dBi
Connector: SMA
Tilts and rotates
Omni-directional pattern
Fully weatherized
Rugged and damage-resistant

2.4GHz Antennas

Specifications
Attribute Value
Internal/External External
RF Protocols WiFi
Supported Frequency Bands 2.4 GHz
Antenna Physical Form Whip
Connector Type SMA
Antenna Mounting Type Direct
Gain 2.2dBi
Connector Gender Male
Antenna Directivity Omnidirectional
Antenna Internal Construction Dipole
206 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR26.91
MYR 25.56
units
Per unit
1 - 9
MYR25.56
10 - 24
MYR24.17
25 - 99
MYR23.71
100 +
MYR23.37
Packaging Options:
