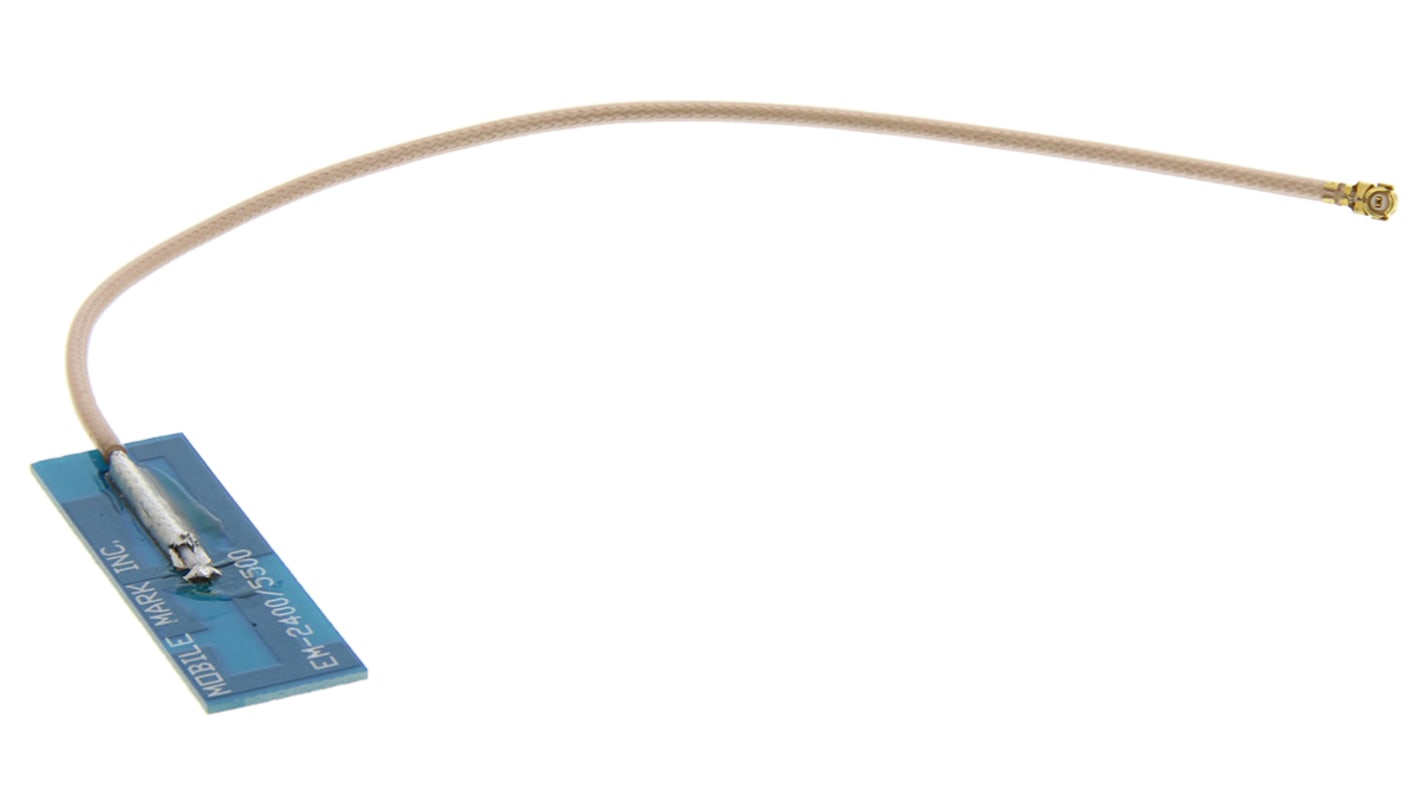

Mobilemark EM-2400/5500-0R-6 PCB WiFi Antenna with UFL Connector, WiFi (Dual Band)

RS Stock No.:: 793-2080
Mfr. Part No.:: EM-2400/5500-0R-6
Manufacturer:: Mobilemark

Mobilemark EM-2400/5500-0R-6 PCB WiFi Antenna with UFL Connector, WiFi (Dual Band)

2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR75.34

Units	Per Unit
1 - 9	MYR75.34
10 - 49	MYR73.77
50 +	MYR71.57

RS Stock No.:: 793-2080
Mfr. Part No.:: EM-2400/5500-0R-6
Manufacturer:: Mobilemark

Technical data sheets

Embedded Antennas

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

Antenna - Embedded

The Mobile Mark’s embedded antennas are designed for Cellular systems. The internal cellular antenna performance meets the GSM/CDMA devices. With its wide bandwidth EM-UMB offers coverage in 824-960 and 1500-2200 MHz frequency bands. The antenna also works in the UMTS band at 1.7 & 2.1 GHz.

Mobile Mark dual band embedded antenna EM-2400/5500 covers both the 2.4 & 5 GHz bands (802.11 a/n) and has an Omni-directional pattern. These WiFi antenna Boards will integrate into OEM systems design. They can be put to use in various applications including smart meters, handheld devices and vending machines.

Gain: EM-UMB; 2 dBi
EM-2400/5500; 2 dBi
Dimensions : EU-UMB-0R-6, 114mm x 30mm
EM-2400/5500-0R-6, 36mm x 12mm
VSWR: 2.5:1 max over all bands
0R-6 version: U.FL connector, RG178 Cable

Mobile Mark

Specifications

Attribute	Value
Internal/External	Internal
RF Protocols	WiFi (Dual Band)
Antenna Physical Form	PCB
Frequency Range	2.4 GHz, 5 GHz
Antenna Mounting Type	Adhesive
Mounting Type	Adhesive Mount
Connector Type	UFL
Gain	2dBi
Cable Length	150mm
Antenna Directivity	Omnidirectional
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-40°C
