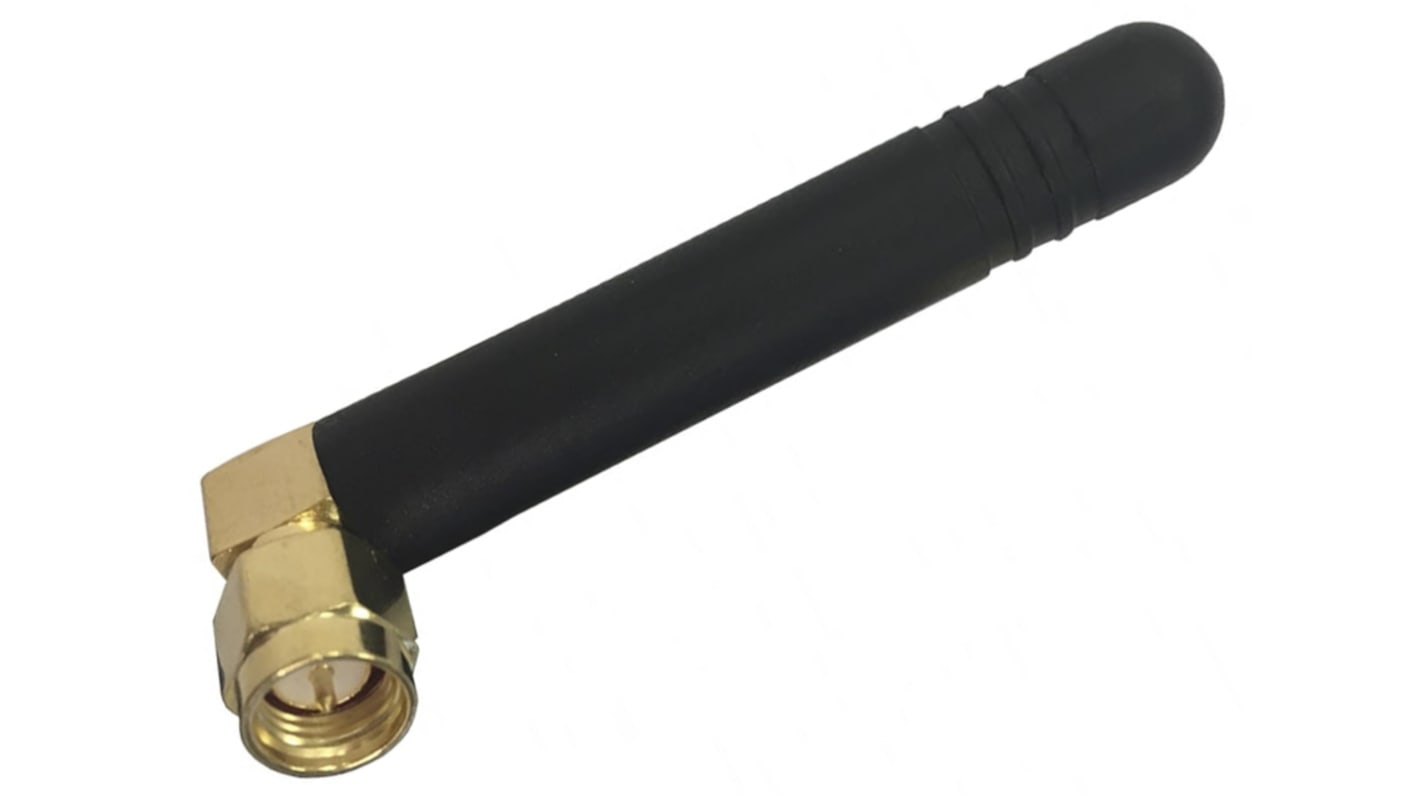

RF Solutions ANT-2WHIP2RA-SMA Stubby WiFi Antenna with SMA Connector, WiFi
- RS Stock No.:
- 137-2776
- Mfr. Part No.:
- ANT-2WHIP2RA-SMA
- Manufacturer:
- RF Solutions
127 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Bag of 1
MYR23.89
| Bag(s) | Per Bag |
| 1 - 4 | MYR23.89 |
| 5 + | MYR21.51 |
- RS Stock No.:
- 137-2776
- Mfr. Part No.:
- ANT-2WHIP2RA-SMA
- Manufacturer:
- RF Solutions
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
1/4 Wave Monopole Antenna
59 / 56mm long
Rugged Flexible Plastic Finish.
VSWR <=1.8
Omni-Directional Design
50ohm Impedance
SMA Male
Nominal Gain +2dBi
Available as Straight or R/A
Operating Temp –20 to +60oC
Insulation resistance 500MΩ @500Vdc
59 / 56mm long
Rugged Flexible Plastic Finish.
VSWR <=1.8
Omni-Directional Design
50ohm Impedance
SMA Male
Nominal Gain +2dBi
Available as Straight or R/A
Operating Temp –20 to +60oC
Insulation resistance 500MΩ @500Vdc
2.4GHz Antennas
Specifications
Attribute | Value |
|---|---|
| Internal/External | External |
| RF Protocols | WiFi |
| Frequency Range | 2.4 GHz |
| Antenna Physical Form | Stubby |
| Antenna Mounting Type | Direct |
| Connector Type | SMA |
| Mounting Type | Through Hole/Bolted |
| Gain | 2dBi |
| Antenna Directivity | Omnidirectional |
| Connector Gender | Male |
| Antenna Internal Construction | Monopole |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Series | ANT |
