- RS Stock No.:
- 137-2775
- Mfr. Part No.:
- ANT-2WHIP2-SMA
- Manufacturer:
- RF Solutions
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
36 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Bag of 1
MYR23.89
Bag(s) | Per Bag |
1 - 4 | MYR23.89 |
5 + | MYR21.51 |
- RS Stock No.:
- 137-2775
- Mfr. Part No.:
- ANT-2WHIP2-SMA
- Manufacturer:
- RF Solutions
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

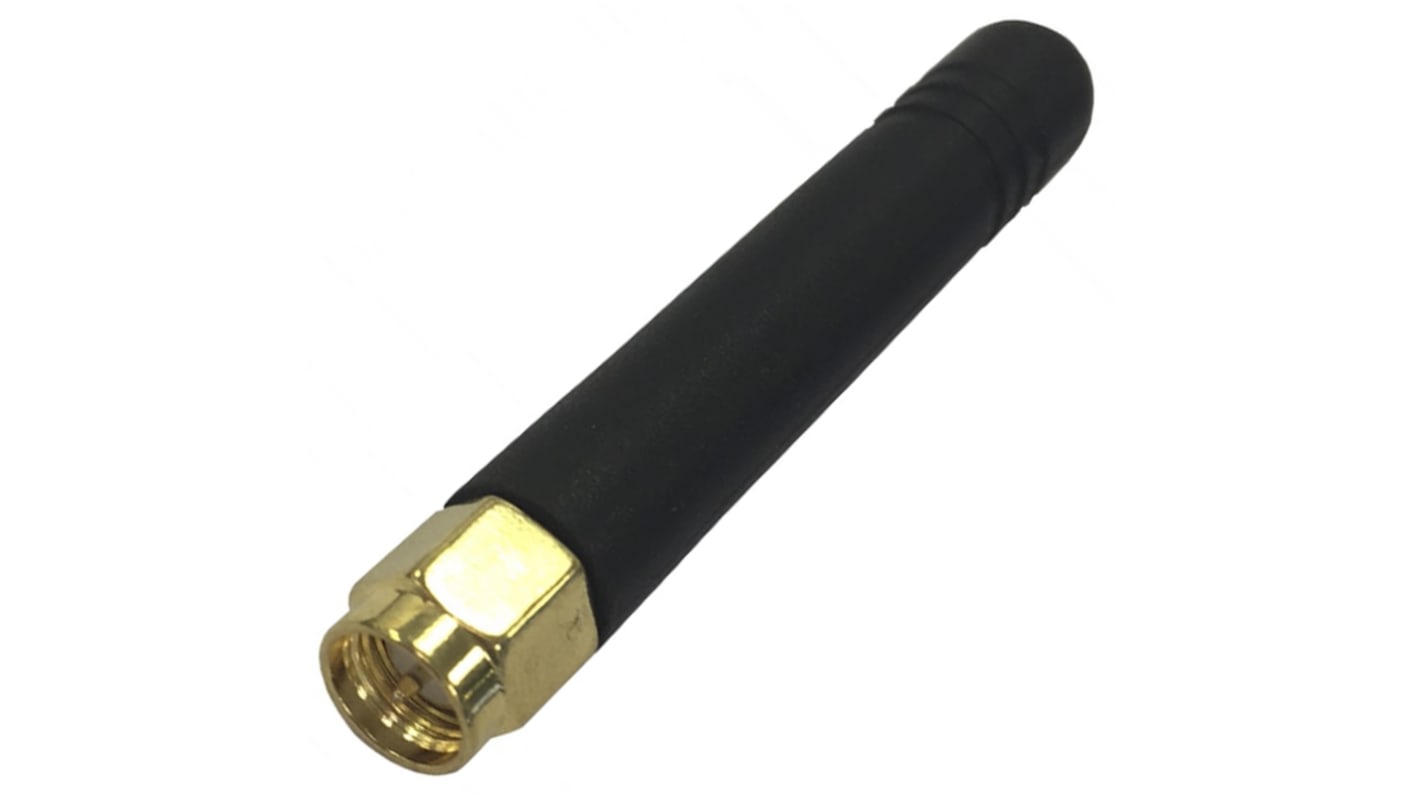

1/4 Wave monopole Antenna
59/56mm long
Rugged Flexible plastic Finish
VSWR<=1.8
Omni-Driectional Design
50ohm impedance
SMA male
nominal gain +2dBi
Available as Straight or R/A
operating TEmp-20 to =60°C
Insulation resistance 500MΩ @500V dc
59/56mm long
Rugged Flexible plastic Finish
VSWR<=1.8
Omni-Driectional Design
50ohm impedance
SMA male
nominal gain +2dBi
Available as Straight or R/A
operating TEmp-20 to =60°C
Insulation resistance 500MΩ @500V dc
2.4GHz Antennas
Specifications
Attribute | Value |
---|---|
RF Protocols | WiFi |
Internal/External | External |
Frequency Range | 2.4 GHz |
Antenna Physical Form | Stubby |
Antenna Mounting Type | Direct |
Mounting Type | Through Hole/Bolted |
Connector Type | SMA |
Gain | 2dBi |
Connector Gender | Male |
Antenna Directivity | Omnidirectional |
Antenna Internal Construction | Monopole |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +60°C |
Series | ANT |
