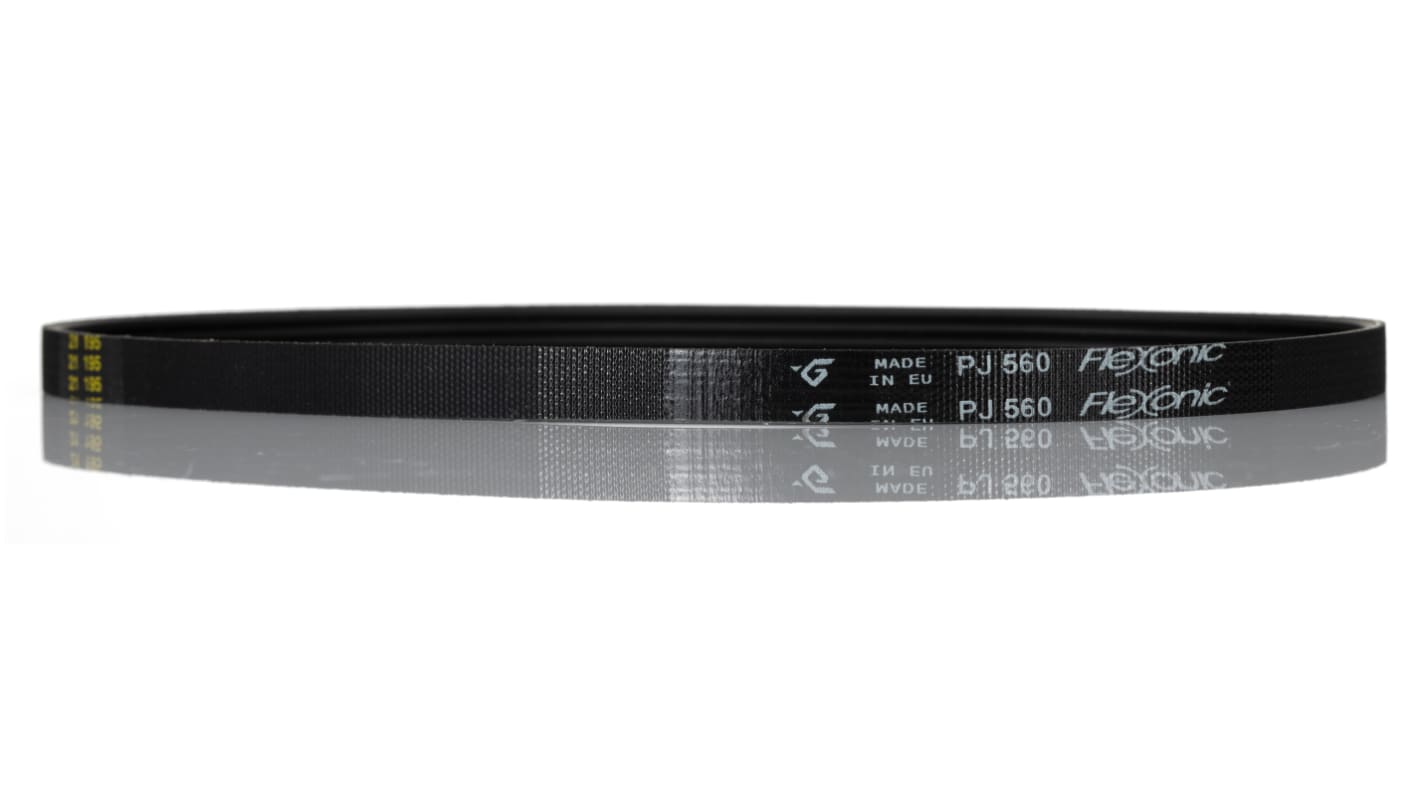

Hutchinson Drive Belt, belt section J, 560mm Length
- RS Stock No.:
- 136-5365
- Mfr. Part No.:
- 4PJ560
- Manufacturer:
- Hutchinson
Stock check temporarily unavailable - call for stock availability
Added
Price Each
MYR106.24
| Units | Per Unit |
| 1 - 5 | MYR106.24 |
| 6 - 24 | MYR104.02 |
| 25 + | MYR100.89 |
- RS Stock No.:
- 136-5365
- Mfr. Part No.:
- 4PJ560
- Manufacturer:
- Hutchinson
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
FleXonic® Belts
The FleXonic elastic belt from Hutchinson features longitudinal ribs and has been specially designed for industry. The FleXonic belt can be installed on a fixed centre distance, and absorbs vibrations reducing noise levels.
The polyamide core has better mechanical properties and can tolerate temperatures over 100°C. There is no need for a tensioner device as the belt maintains tension throughout the transmissions lifespan.
The polyamide core has better mechanical properties and can tolerate temperatures over 100°C. There is no need for a tensioner device as the belt maintains tension throughout the transmissions lifespan.
Features and Benefits
• Reliable and high-quality power transmission
• No need for tensioning device
• Reduced weight and compactness of power transmission
• Reduced pulley diameter
• No need for retensioning
• Long life-span
• Can adapt to temperature variations: -40°C to +120°C
Product Application Information
Can be used in concrete mixers, woodworking machines and gardening equipment.
Hutchinson
Specifications
Attribute | Value |
|---|---|
| Length | 560mm |
| Belt Section | J |
| Minimum Pulley Diameter | 9mm |
| Series | FleXonic |
| Material | Polyamide |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +120°C |
