Texas Instruments, Controller IC, 2-Channel 480 Mbps, 3.6 V, USB 2.0, 0.99 V, 48-Pin HTQFP

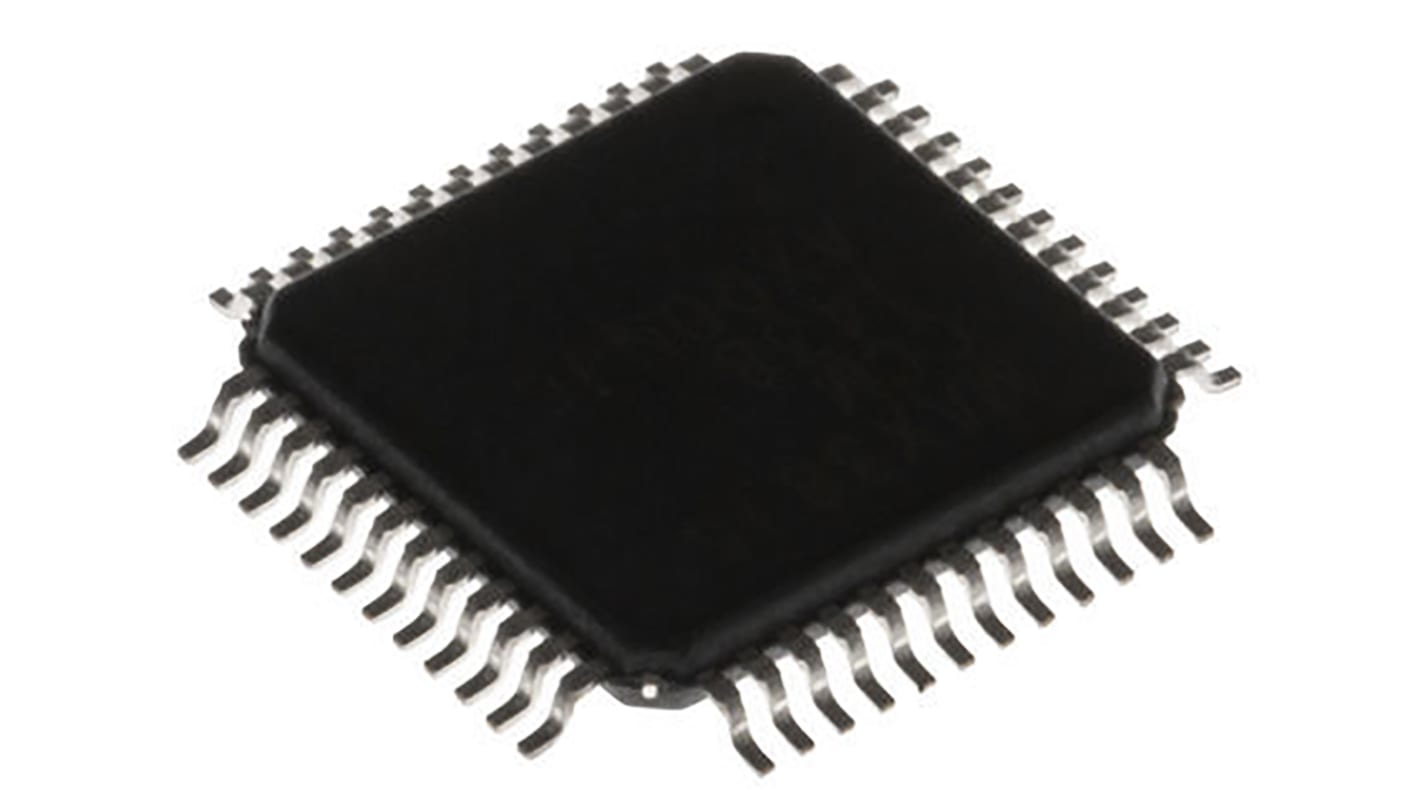

This image is representative of the product range

View all USB Interface ICs
Unavailable
RS will no longer stock this product.
RS Stock No.:
168-5109
Mfr. Part No.:
TUSB4020BIPHP
Manufacturer:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Maximum Data Rate

480Mbps

Number of Transceivers

2

Product Type

Controller IC

USB Specification

USB 2.0

Sub Type

Controller

Power Supply Type

Dual

ESD Protection

Yes

Maximum Supply Voltage

3.6V

Minimum Supply Voltage

0.99V

Mount Type

Surface

Package Type

HTQFP

Pin Count

48

Supported Protocols

USB 2.0

Minimum Operating Temperature

-40°C

Dual Supply Voltage

3.3V

Maximum Operating Temperature

85°C

Width

7.2 mm

Height

1.05mm

Length

7.2mm

Series

TUSB4020BI

Standards/Approvals

No

Automotive Standard

No

Supply Current

39mA

COO (Country of Origin):
PH

USB Hub Controllers, Texas Instruments


Texas Instruments USB hub Controller devices provide multiple downstream ports in compliance with the USB 2.0 specification. As they are implemented as digital state machines rather than microcontrollers, no software programming is required. Fully-compliant USB transceivers are integrated into the ASIC for all upstream and downstream ports. Both full-speed and low-speed downstream ports are supported by automatically setting the slew rate according to the speed of the device attached to the ports.

USB (Universal Serial Bus), Texas Instruments
