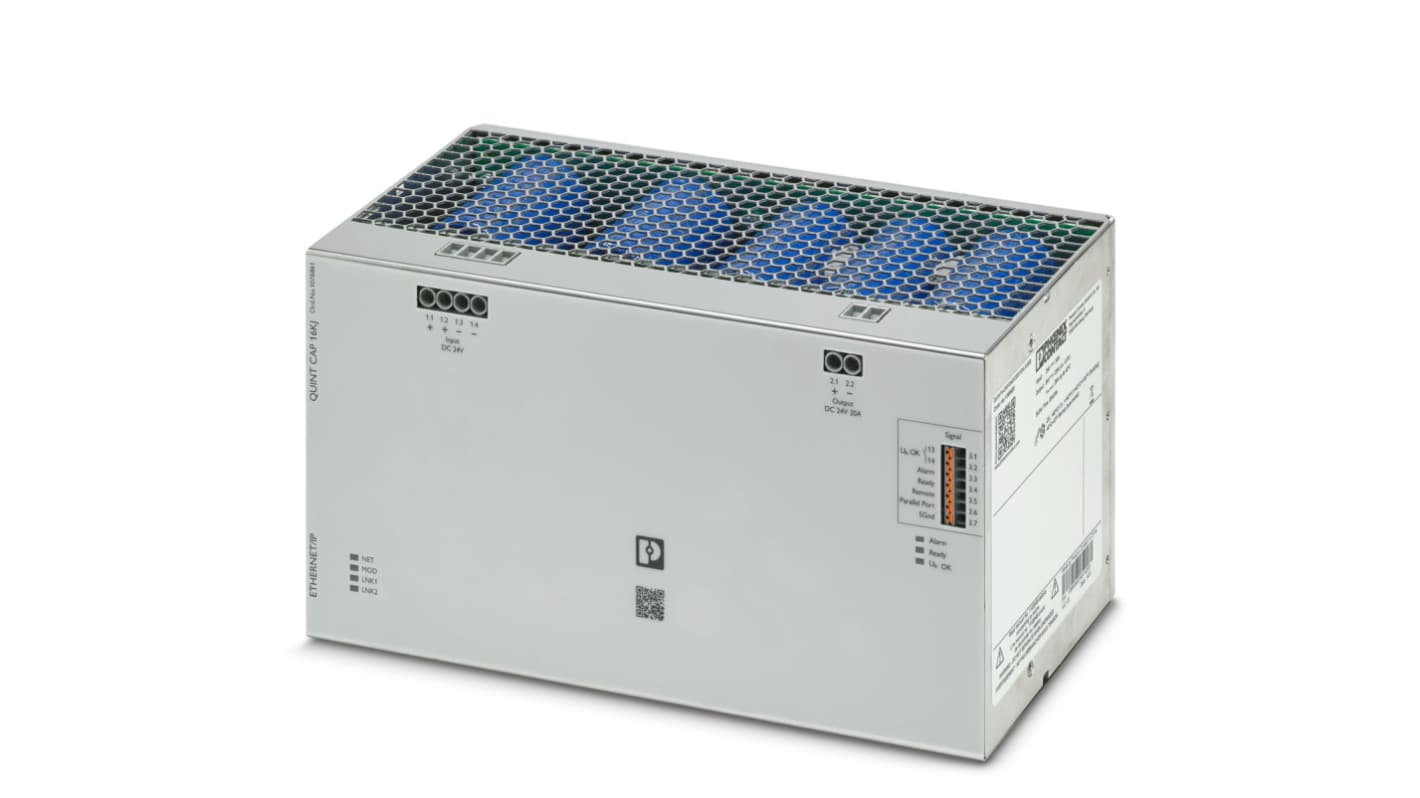

Phoenix Contact QUINT4-CAP/24DC/20/16KJ/EIP 22.5V dc, 30 V dc Input Uninterruptible power supply, QUINT4 600 W DIN Rail

RS Stock No.:: 255-9441
Mfr. Part No.:: 1076861
Manufacturer:: Phoenix Contact

Phoenix Contact QUINT4-CAP/24DC/20/16KJ/EIP 22.5V dc, 30 V dc Input Uninterruptible power supply, QUINT4 600 W DIN Rail

Subtotal (1 unit)*

MYR6,543.39

FREE delivery for orders over RM 150.00

Stocked by manufacturer

Ready to ship from 21 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR6,543.39

*price indicative

RS Stock No.:: 255-9441
Mfr. Part No.:: 1076861
Manufacturer:: Phoenix Contact

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Model Number	QUINT4
	Product Type	Uninterruptible power supply
	Sub Type	UPS
	Current	20A
	Output Voltage	24V dc
	Input Voltage	22.5, 30V dc
	Mount Type	DIN Rail
	Power	600W
	Backup Time	30s
	Length	244mm
	Depth	130mm
	Series	QUINT4-CAP/24DC/20/16KJ/EIP
	Width	125mm
	Standards/Approvals	Conformance with EMC Directive 2014/30/EU

	Select all
	Brand Phoenix Contact
	Model Number QUINT4
	Product Type Uninterruptible power supply
	Sub Type UPS
	Current 20A
	Output Voltage 24V dc
	Input Voltage 22.5, 30V dc
	Mount Type DIN Rail
	Power 600W
	Backup Time 30s
	Length 244mm
	Depth 130mm
	Series QUINT4-CAP/24DC/20/16KJ/EIP
	Width 125mm
	Standards/Approvals Conformance with EMC Directive 2014/30/EU

RoHS Status: Exempt

COO (Country of Origin):: CN

Phoenix Contact Uninterruptible Power Supply, 600W Power Rating, 20A Current Rating - 1076861

This uninterruptible power supply ensures consistent power backup in critical applications, supporting the continuous operation of automation and industrial systems, thereby preventing disruptions during power interruptions. It is particularly useful in environments with a need for efficient power management solutions.

Features & Benefits

• Provides a 24V DC output for a stable power supply

• Input voltage range of 22.5V to 30V DC accommodates diverse systems

• Efficiency exceeds 98%, minimising energy consumption

• DIN rail mounting allows for straightforward integration into control panels

• Features maintenance-free energy storage with double-layer capacitors

• Supports an output current of up to 20A for significant power requirements

Applications

• Suitable for automation systems needing stable power

• Ideal for electronic equipment that requires continuous operation

• Applicable in industrial settings for effective power management

• Utilised in electrical machinery needing dependable backup solutions

• Fits mechanical that require uninterrupted power supply

What is the charging time for this power supply?

Charging time is approximately 6.3 minutes at 2.5A.

How many units can be connected in parallel?

Up to four units can be connected in parallel to increase capacity.

What are the temperature limits for operation?

It operates effectively between -25°C and 60°C.

Can it be used in applications with limited space?

Yes, it has a compact design suitable for tight installations.

What precautions should be taken during installation?

Proper mounting on a DIN rail and secure connections are essential to prevent faults.
